Chassis Harness

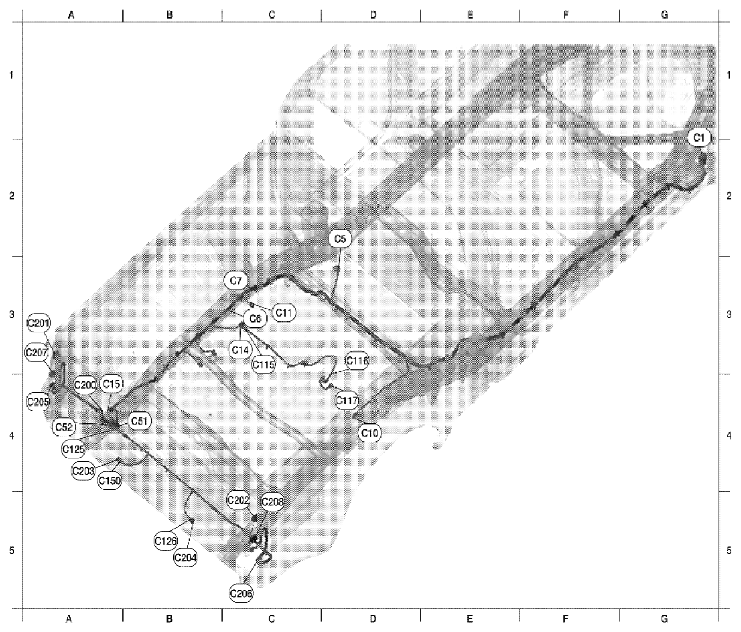

Fig 1: Identifying Chassis Harness

Courtesy of SUZUKI OF AMERICA CORP.

CHASSIS HARNESS REFERENCE CHART

G2	C1	SMJ	: To E41	Trailer sub-harness
D3	C5	GR/5	: Fuel level sensor unit and fuel pump (fuel lever sensor)	A4	C125	GR/8	: To C51
C3	C6	B/2	: EVAP canister vent control valve	B5	C126	B/7	: Trailer
C3	C7	GR/3	: EVAP control system pressure sensor	A4	C150	B/2	: To C52
D4	C10	GR/2	: Rear wheel sensor RH	Tail lamp sub-harness
C3	C11	GR/2	: Rear wheel sensor LH	A3	C200	GR/8	: To C15
B3	C14	GR/4	: To C115	A3	C201	BR/3	: Rear combination lamp LH
B4	C15	GR/8	: To C200	C4	C202	BR/3	: Rear combination lamp RH
B4	C51	GR/8	: To C125	A4	C203	GR/2	: License plate lamp LH
A4	C52	B/2	: To C150	B5	C204	GR/2	: License plate lamp RH
Differential lock sub-harness				A4	C205	GR/2	: Rear combination lamp LH (back-up)
B4	C115	GR/4	: To C14	C5	C206	GR/2	: Rear combination lamp RH (back-up)
D4	C116	GR/2	: Differential lock position switch	A3	C207	GR/2	: Rear combination lamp LH (turn signal)
D4	C117	B/2	: Differential lock solenoid	C4	C208	GR/2	: Rear combination lamp RH (turn signal)
