| 1 |
CHECK SUNROOF SWITCH INPUT SIGNAL
- Turn ignition switch ON.
  Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

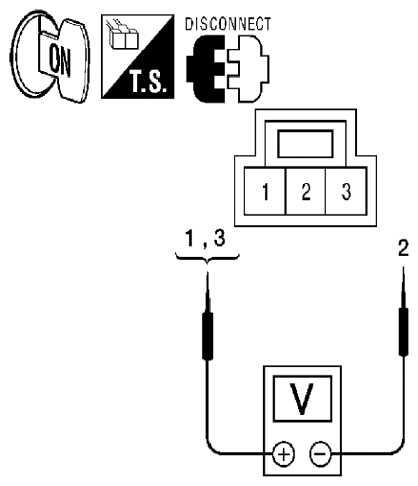

- 2. Check voltage between sunroof switch connector and ground.
Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.
Are the voltage measurements as specified? |
Sunroof switch is operating normally. |
GO TO 2 |
| 2 |
CHECK SUNROOF SWITCH CIRCUITS
- Turn ignition switch OFF.
   Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.
- 2. Disconnect sunroof motor assembly connector B83 and sunroof switch connector R4.
- 3. Check continuity between sunroof motor assembly connector B83 (A) and sunroof switch connector R4 (B) and.
Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.
- 4. Check continuity between sunroof motor assembly connector B83 (A) and ground.
Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.
Are the continuity test results as specified? |
GO TO 3 |
Repair harness or connector. |
| 3 |
CHECK SUNROOF SWITCH
- Check continuity between sunroof switch terminals.
 Courtesy of SUZUKI OF AMERICA CORP.
Are the continuity test results as specified? |
Sunroof switch is operating normally. |
Replace sunroof switch (map lamp assembly). Refer to
[HEADLINING: REMOVAL AND INSTALLATION
] |
