Front Seat: Seatback Assembly: Removal

NOTE: On vehicles equipped with side air bags, only complete seatback assemblies can be replaced.
  1. Remove the front seat assembly. Refer to [FRONT SEAT: REMOVAL AND INSTALLATION ].
  2. Remove the seatback board from the back of the seatback.

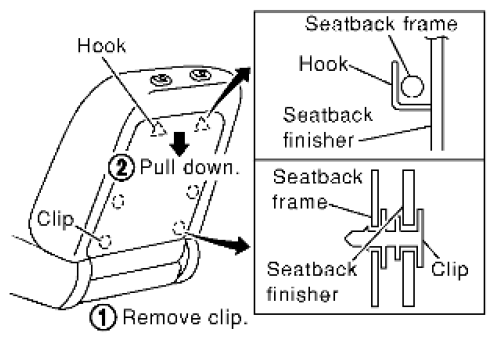

    Fig 1: Removing Seatback Board From Back Of Seatback
    G06446544Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the retainer.

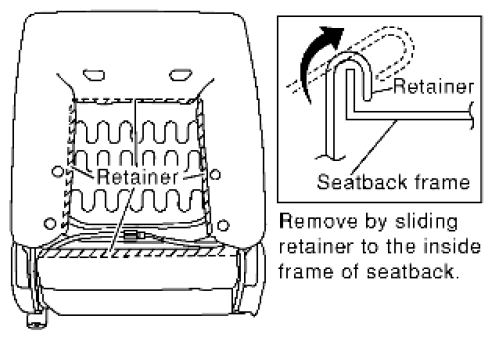

    Fig 2: Removing Retainer
    G06446545Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the seatback heater harness.
  5. Remove the seatback bolts (2 for each side) and seatback assembly.
