Diagnosis Procedure
DIAGNOSIS PROCEDURE
| Step | Action | YES | NO |
|---|---|---|---|
| 1 | CHECK DOOR SWITCHES INPUT SIGNAL With SDT Check door switches ("DOOR SW-DR", "DOOR SW-AS") in Data list mode with SDT. Refer to [SDT FUNCTION (BCM - DOOR LOCK) ]

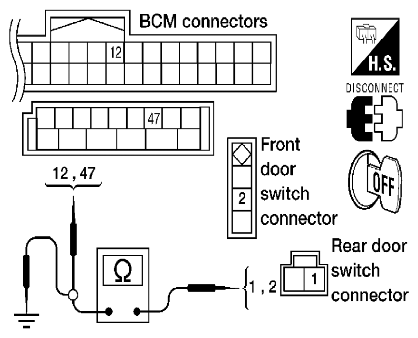

Without SDT Check voltage between BCM connector M18 or M19 terminals 12, 47 and ground. Is the inspection result normal? |
Door switch circuit is OK. | GO TO 2 |
| 2 | CHECK BCM OUTPUT VOLTAGE
12 - Ground: Battery voltage 47 - Ground: Battery voltage Is the inspection result normal? |
GO TO 3 | Replace BCM. Refer to [BCM (BODY CONTROL MODULE): REMOVAL AND INSTALLATION ] |
| 3 | CHECK DOOR SWITCH CIRCUIT
Is the inspection result normal? |
GO TO 4 | Repair or replace harness. |
| 4 | CHECK DOOR SWITCHES GROUND CIRCUIT Check continuity between door switch connector D213 (Front LH), D314 (Front RH) terminal 3, D211 (Rear upper LH), D312 (Rear upper RH), D212 (Rear lower LH), D313 (Rear lower RH) terminal 2 and ground. 3 - Ground: Continuity should not exist 2 - Ground: Continuity should not exist Is the inspection result normal? |
GO TO 5 | Repair or replace harness. |
| 5 | CHECK DOOR SWITCHES Check continuity between door switch terminals. Is the inspection result normal? |
Check condition of harness and connector. | Replace door switch. |
