Power Window System: Component Parts Location

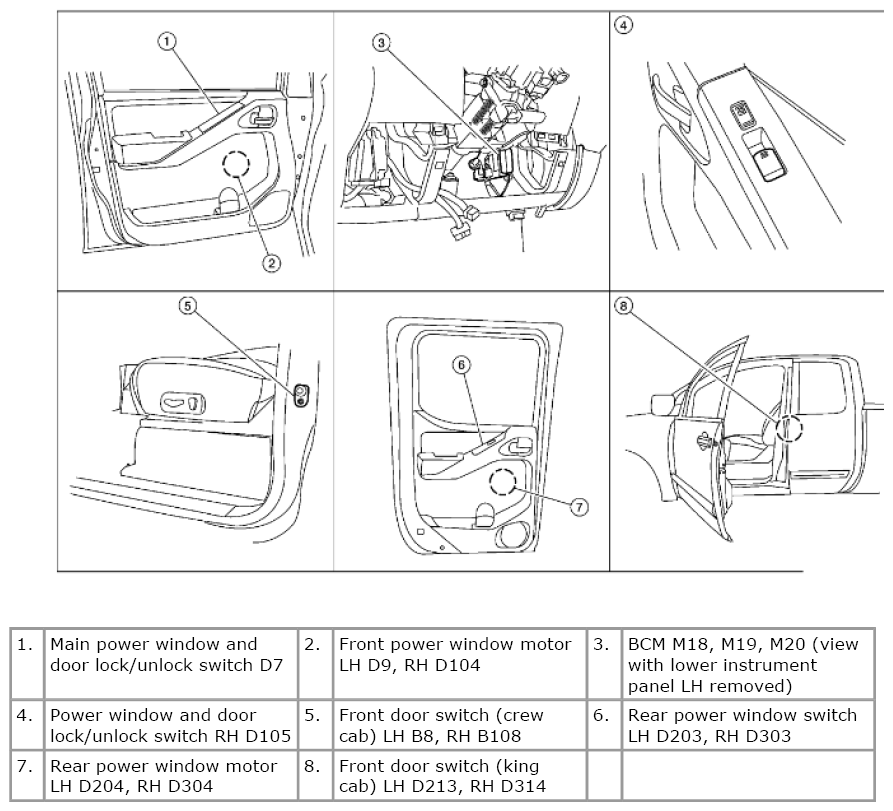

Fig 1: Identifying Power Window System Component Parts Location
G06443560Courtesy of SUZUKI OF AMERICA CORP.
