Clip and Fastener

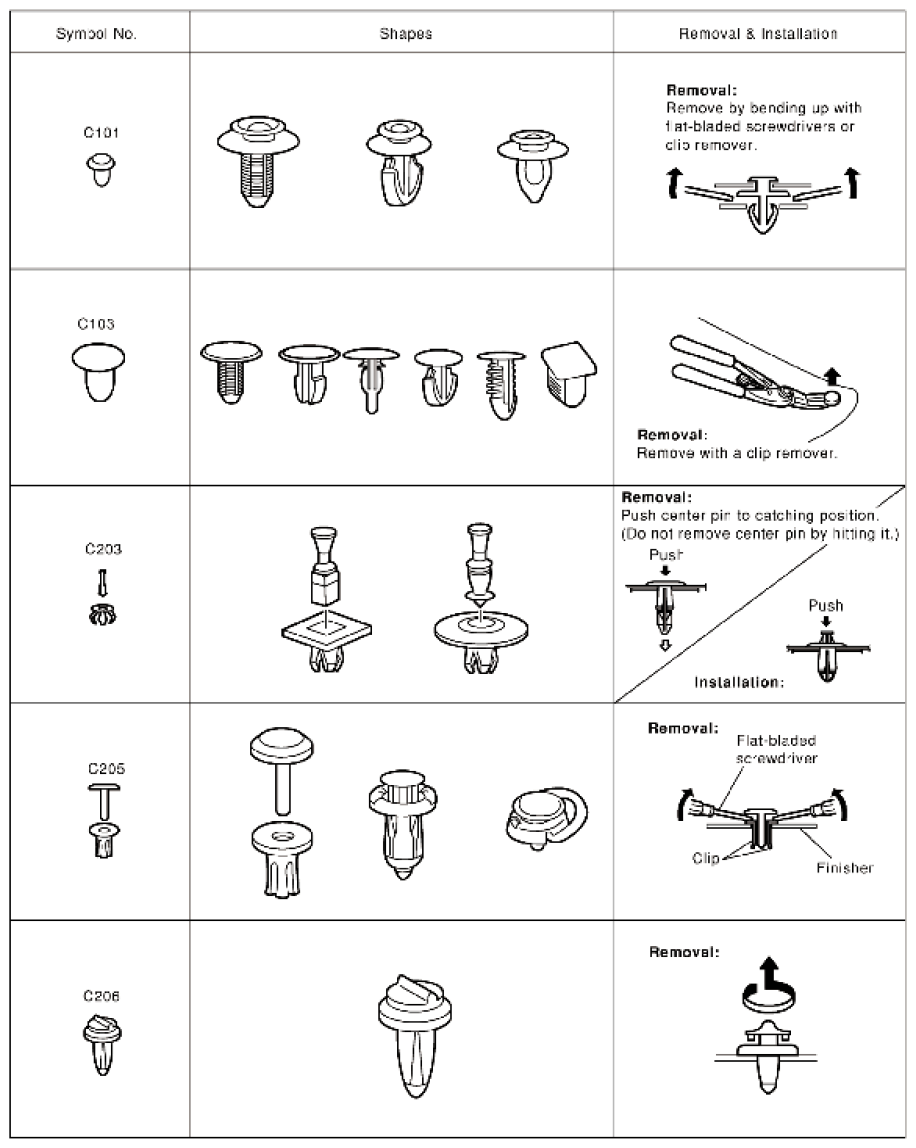

Fig 1: Clip And Fastener Chart (1 Of 3)
G06446557Courtesy of SUZUKI OF AMERICA CORP.

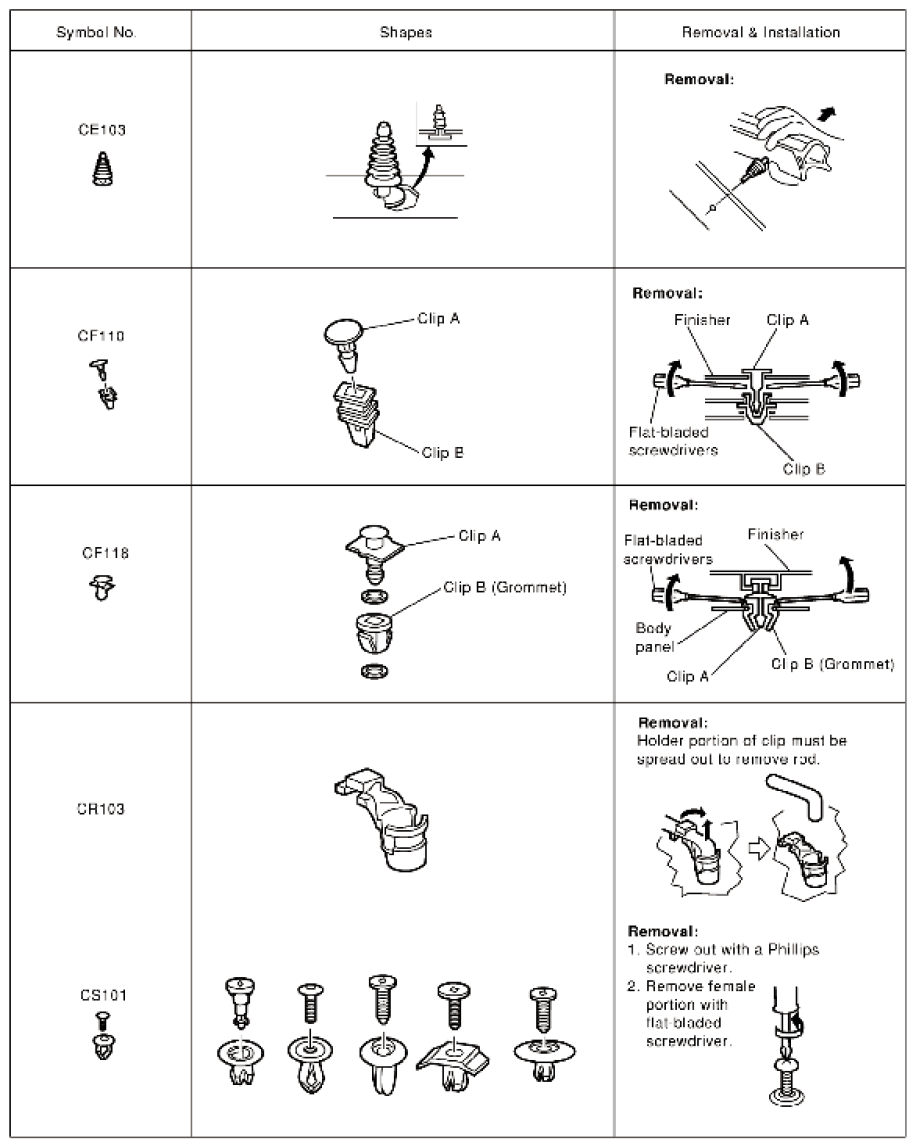

Fig 2: Clip And Fastener Chart (2 Of 3)
G06446558Courtesy of SUZUKI OF AMERICA CORP.

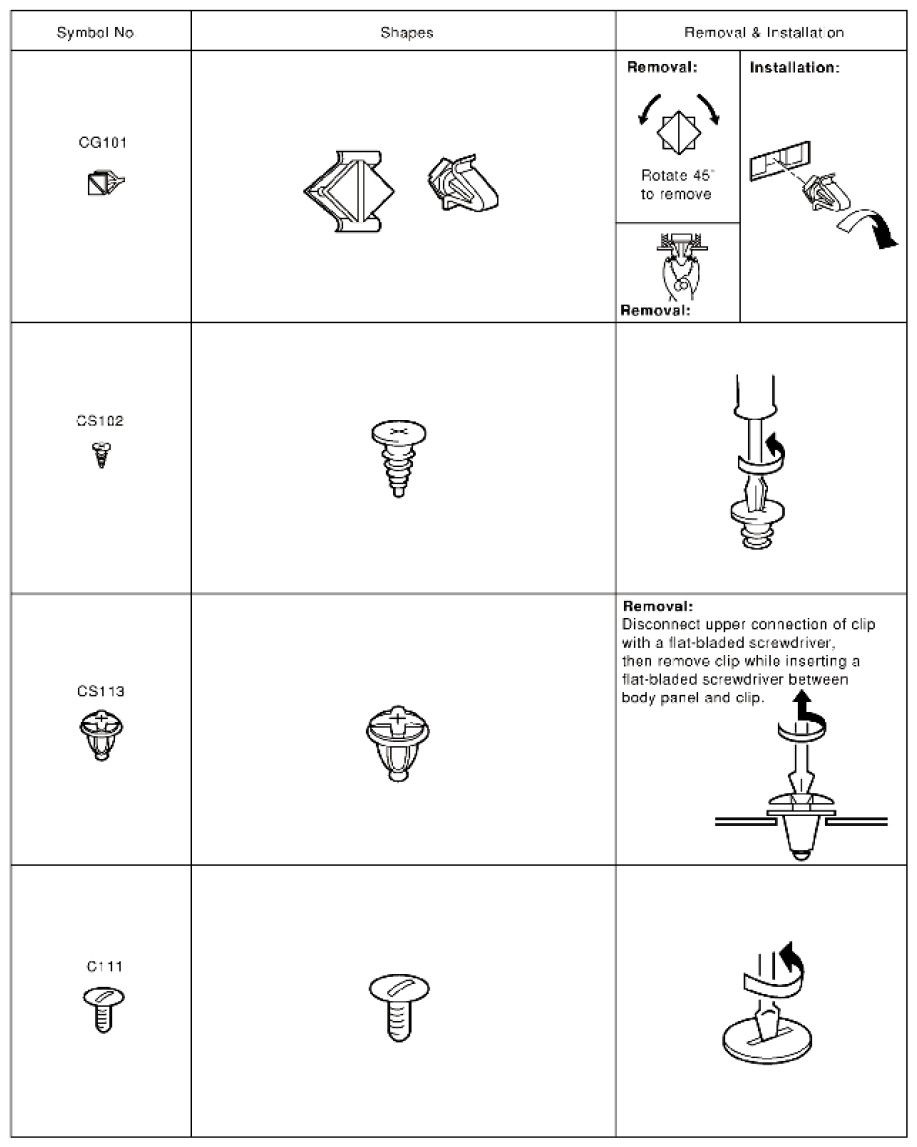

Fig 3: Clip And Fastener Chart (3 Of 3)
G06446559Courtesy of SUZUKI OF AMERICA CORP.
