4WD Shift Indicator Lamp Keeps Flashing
4WD Shift Indicator Lamp Keeps Flashing
Description
The 4WD shift indicator lamp keeps flashing.

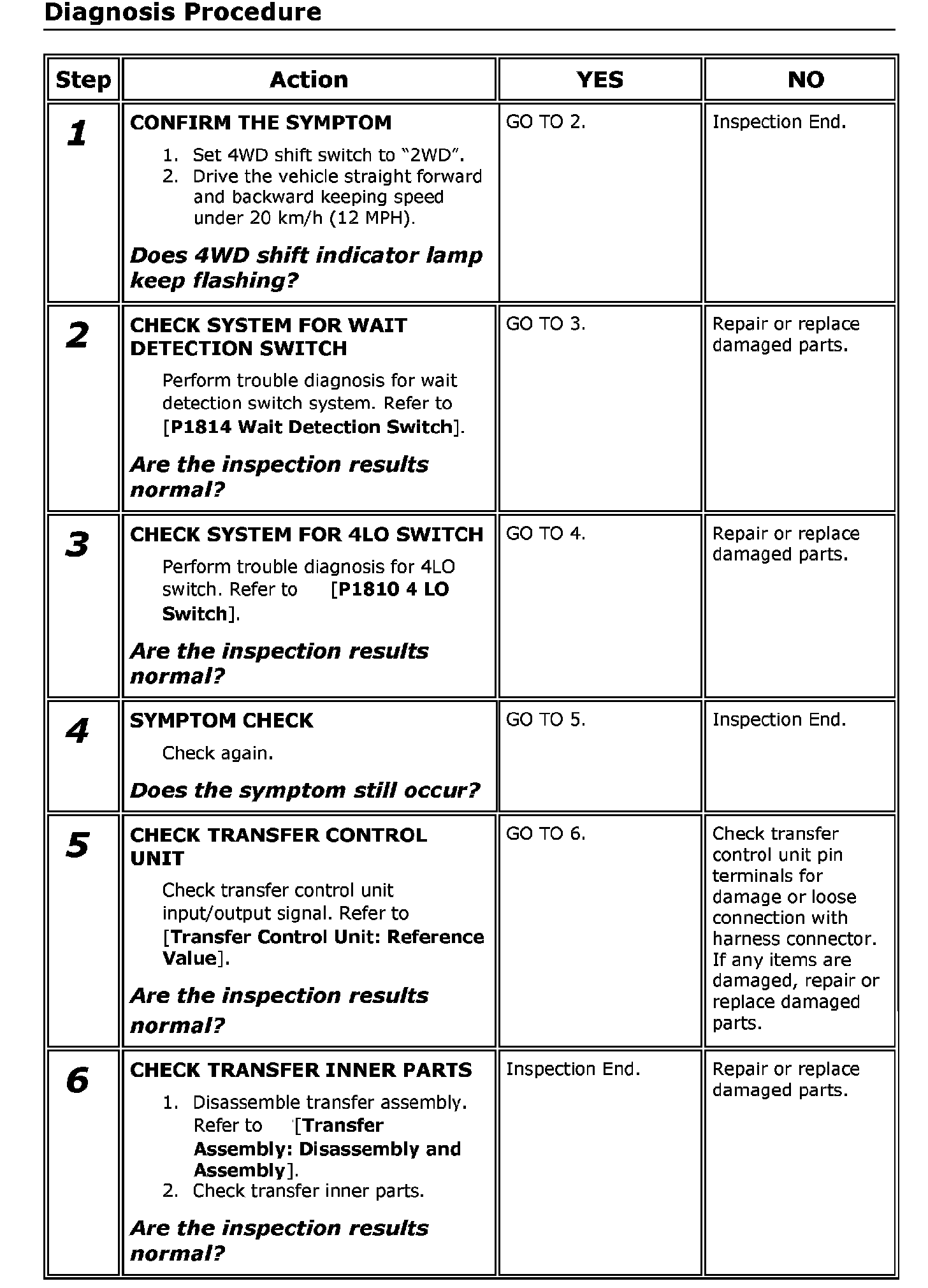

Diagnosis Procedure
Steps 1-6:
