Initial Inspection and Diagnostic Overview

Diagnosis and Repair Workflow

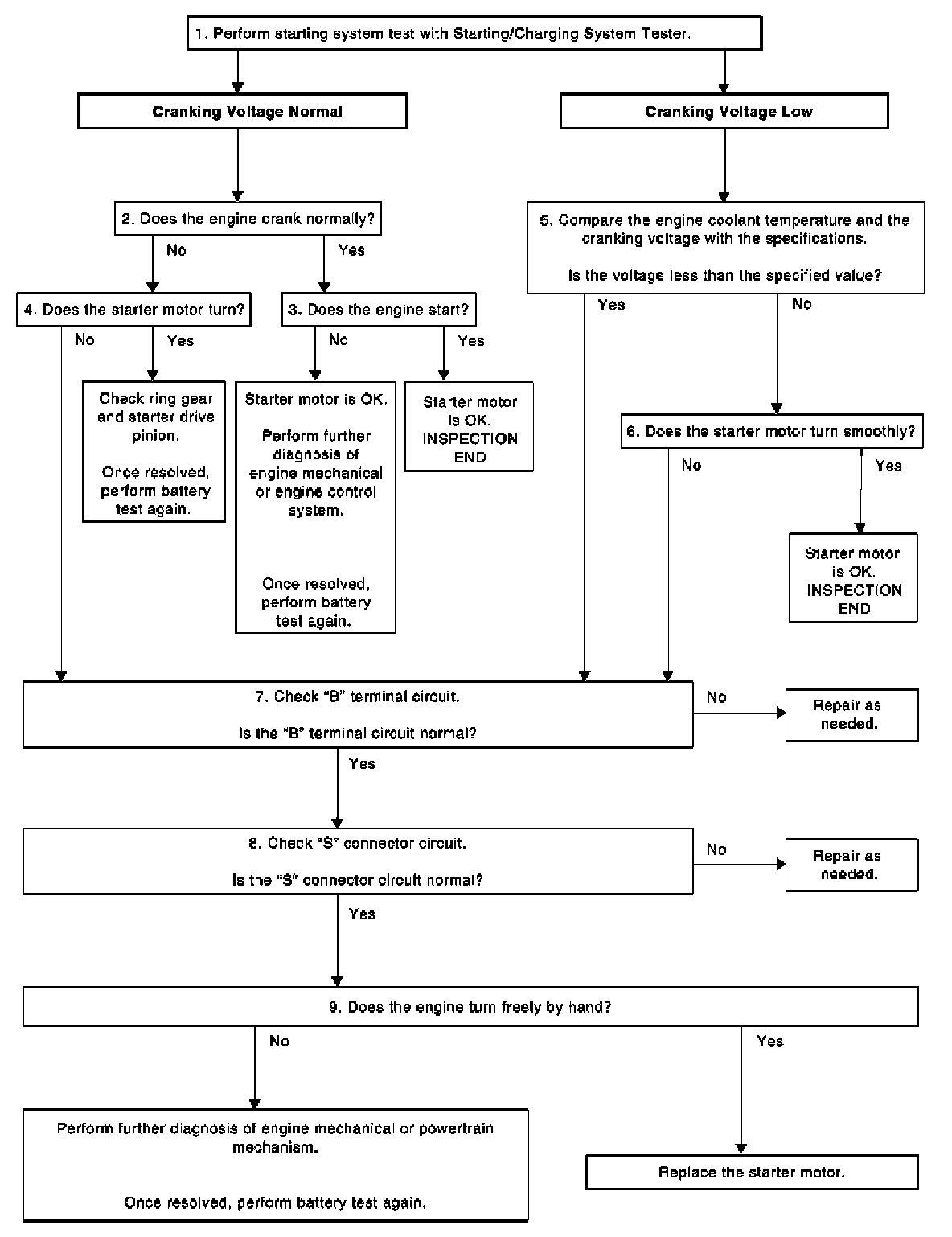

OVERALL SEQUENCE






DETAILED FLOW

NOTE: To ensure a complete and thorough diagnosis, the battery, starter motor and alternator test segments must be done as a set from start to finish.

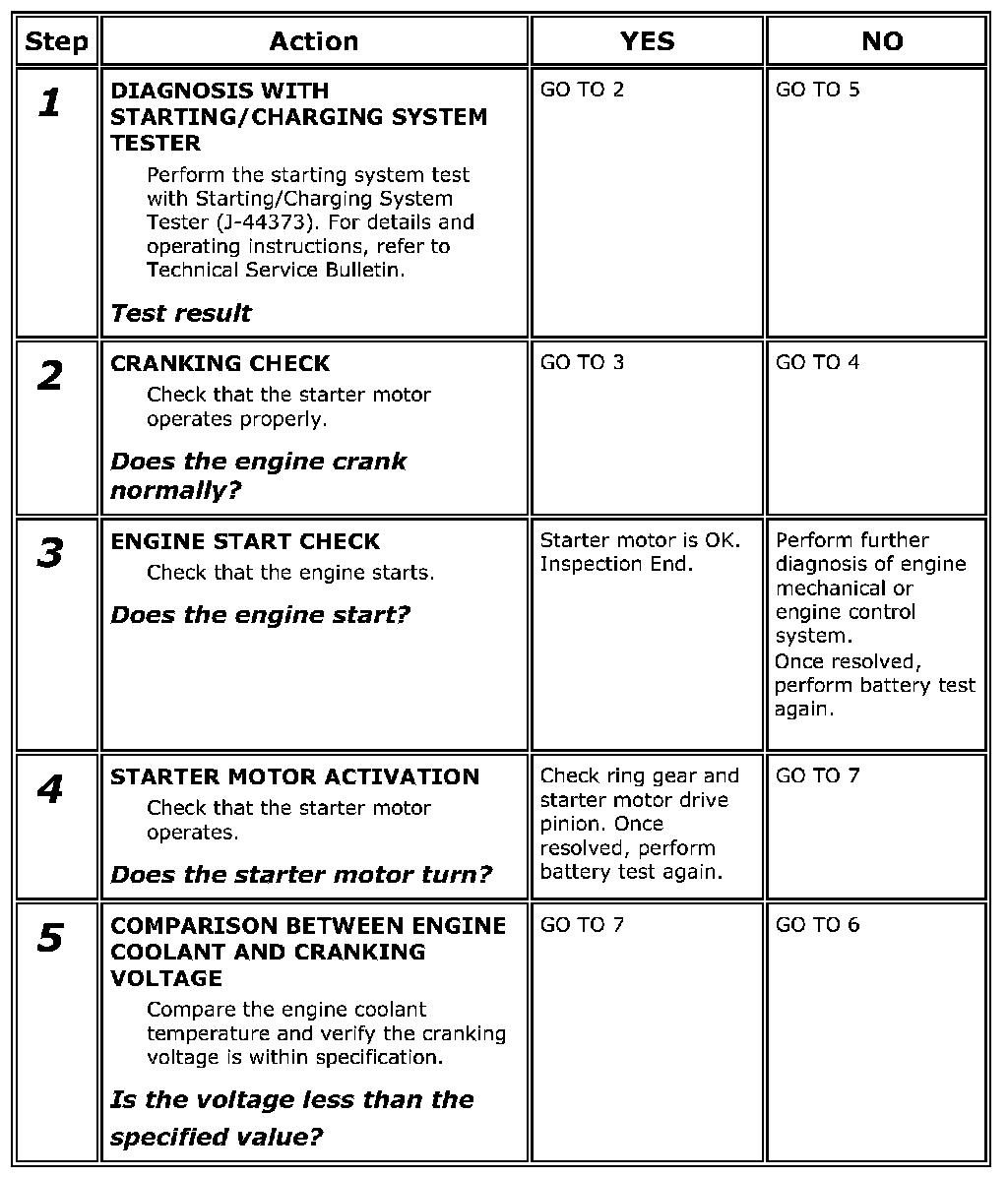

Step 1-5:

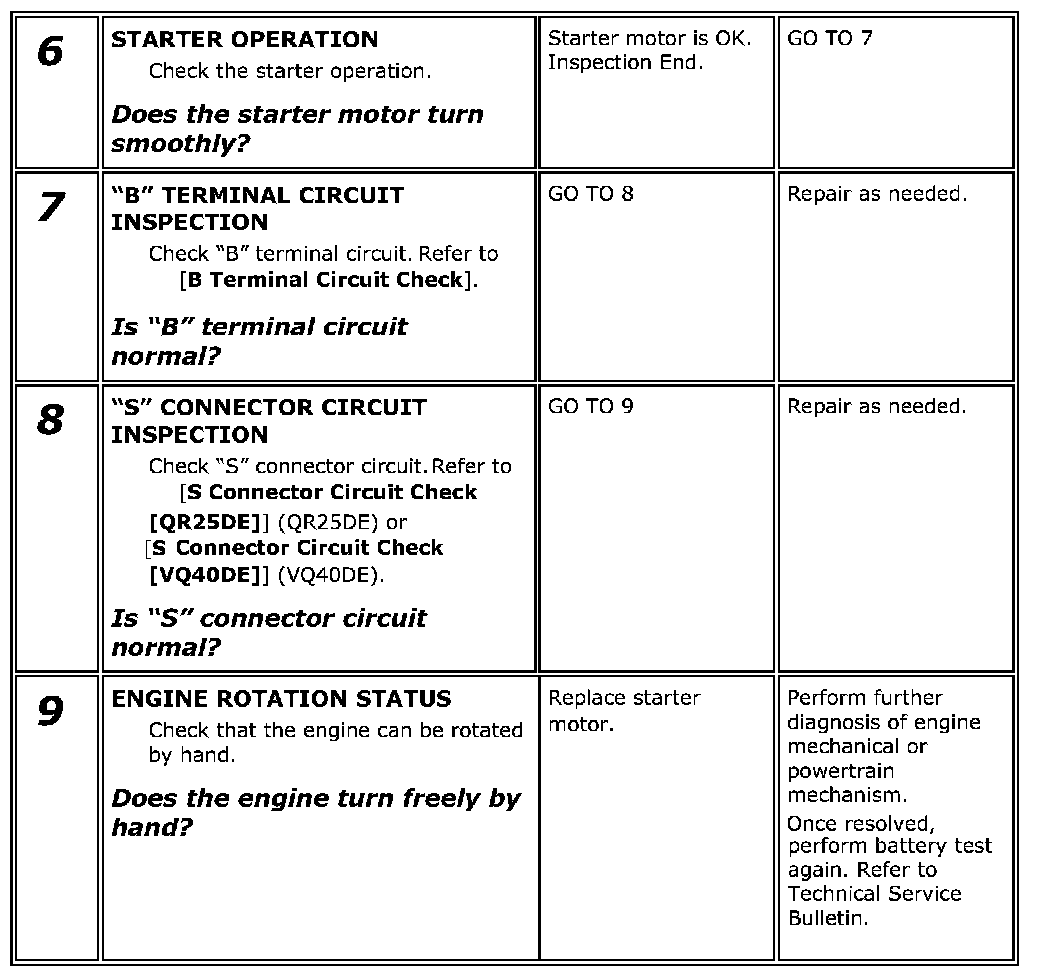

Step 6-9:
