Exhaust Manifold

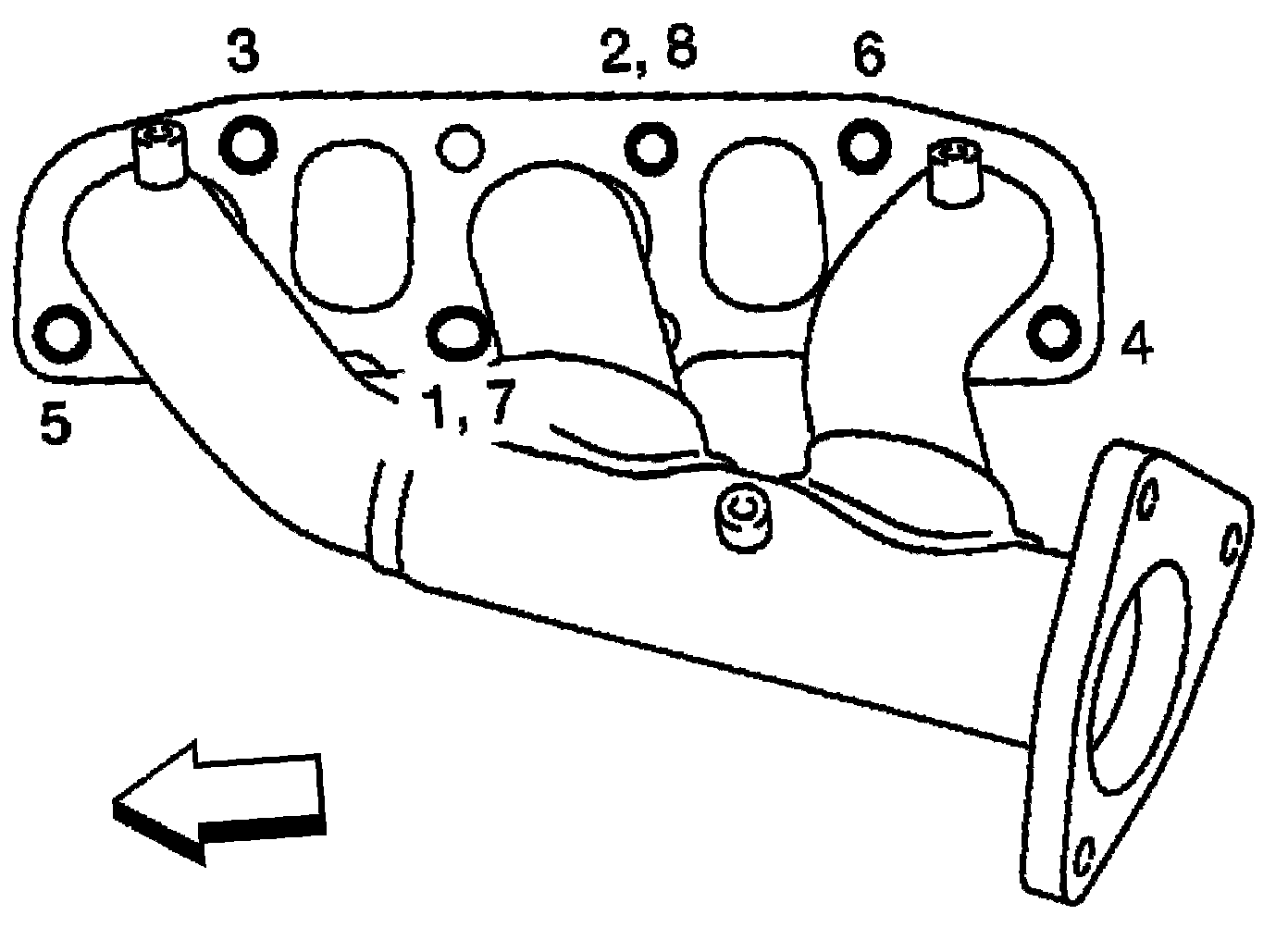

Exhaust Manifold (LH) 30.5 Nm (3.1 kg-m, 22 ft lb)

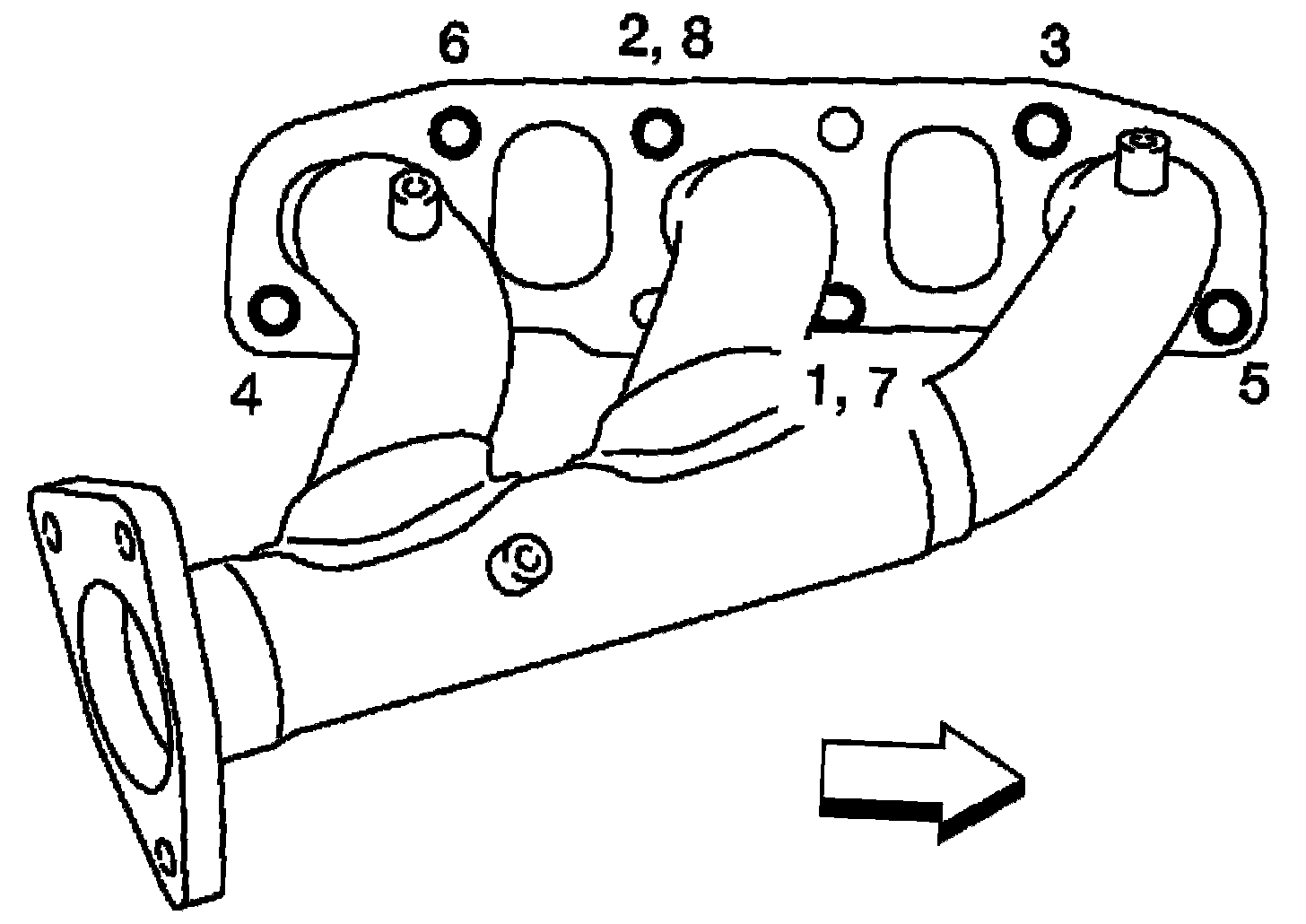

Exhaust Manifold (RH) 30.5 Nm (3.1 kg-m, 22 ft lb)






^ White Arrow Indicates Front
