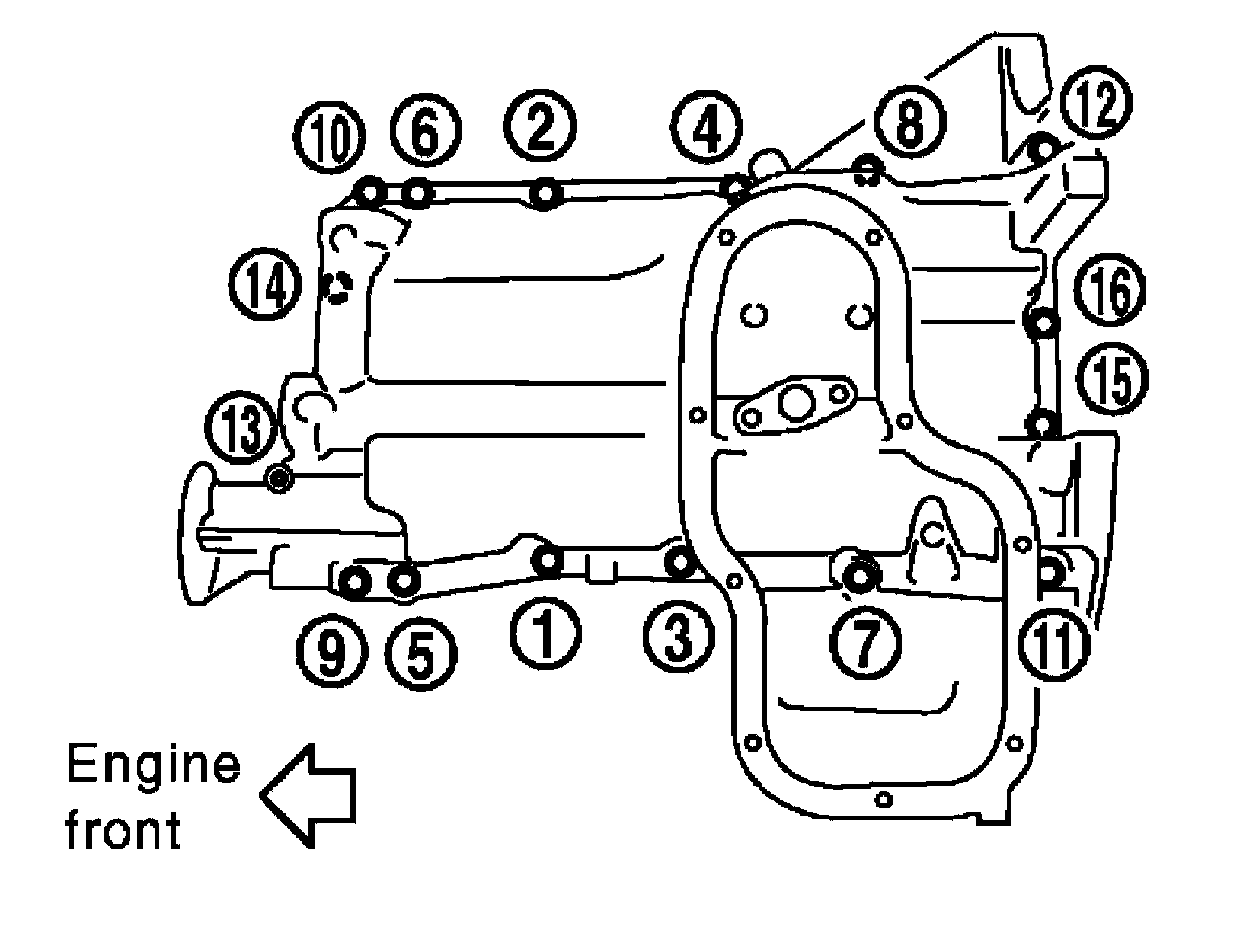

Oil Pan, Engine





Oil pan upper 22.0 n-m (2.2 kg-m, 16 in-lb)
Oil pan lower 9.0 n-m (0.92 kg-m, 80 in-lb)
