Symptom Related Diagnostic Procedures

Engine Control System Symptoms: Symptom Matrix Chart

SYSTEM - BASIC ENGINE CONTROL SYSTEM

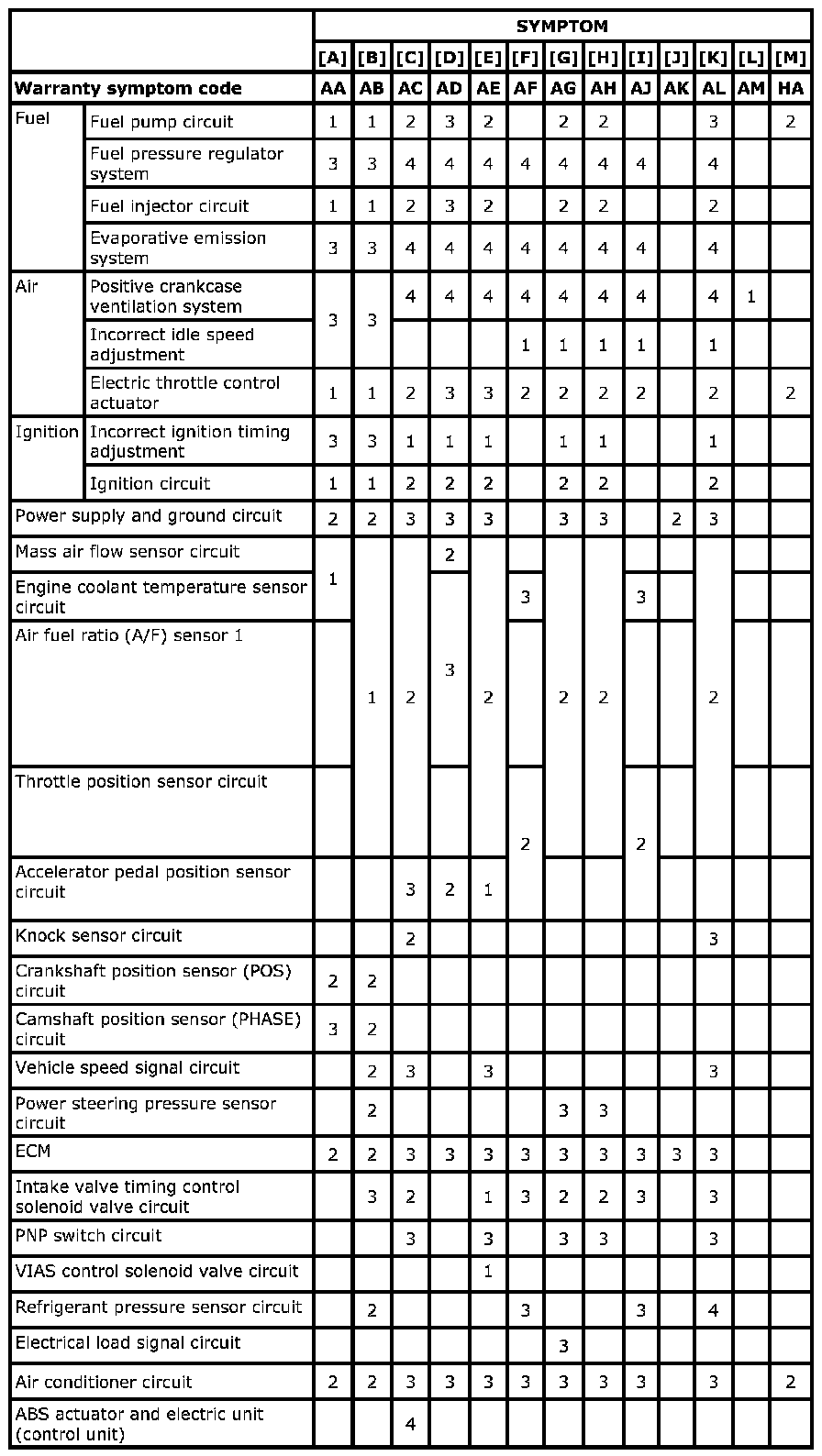

System - Basic Engine Control System:






SYSTEM - ENGINE MECHANICAL & OTHER

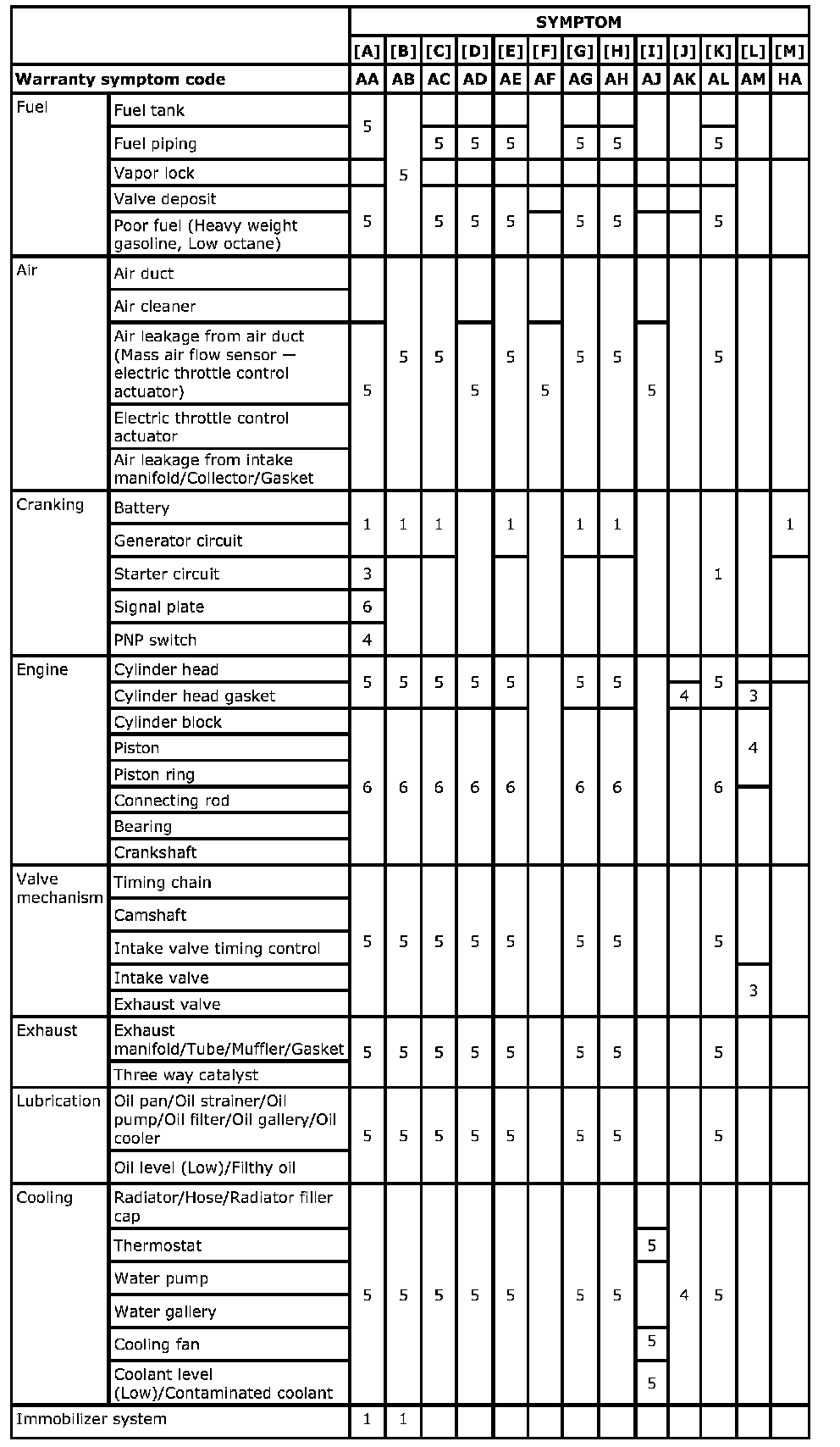

System - Engine Mechanical & Other:
