Cooling Fan Control: Description

Cooling Fan Control: Description

SYSTEM DESCRIPTION

Cooling Fan Control






The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].

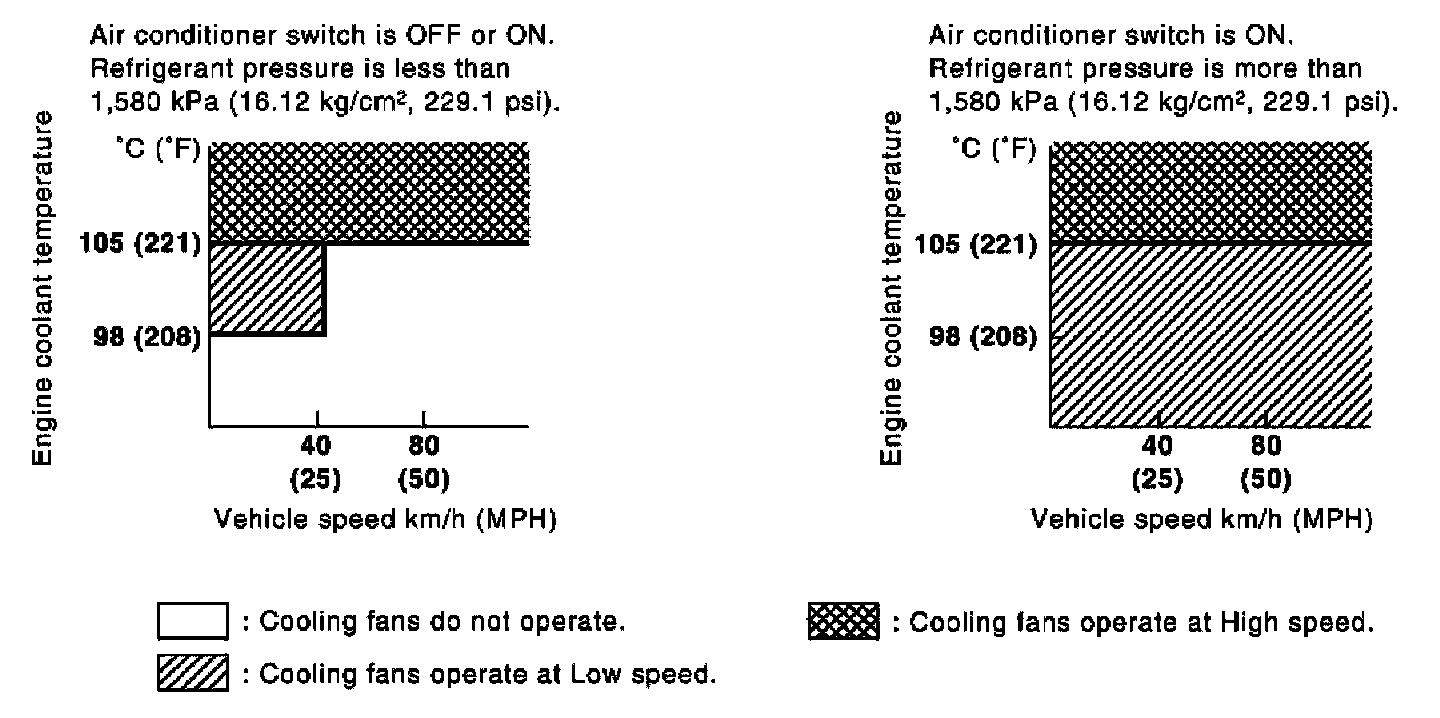

Cooling Fan Operation






Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R via the CAN communication line.
