Transfer Fluid: Inspection

Transfer Fluid: Inspection

CAUTION:
If using the vehicle for towing, the transfer fluid must be replaced as specified.

FLUID LEAKAGE AND FLUID LEVEL
1) Make sure that fluid is not leaking from the transfer assembly or around it.

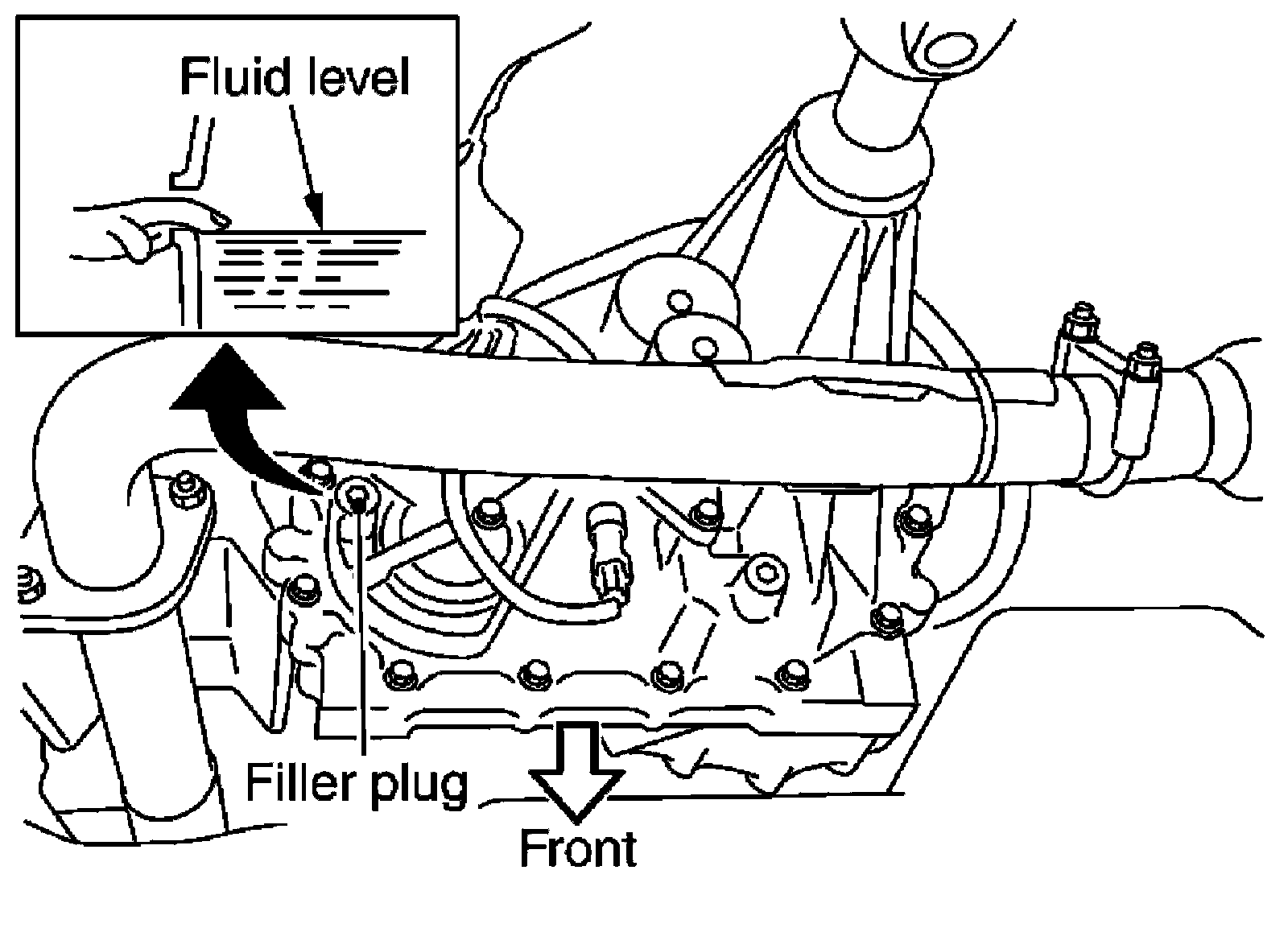

2) Check fluid level from the filler plug hole as shown.





CAUTION:
Do not start engine while checking fluid level.

3) Install the filler plug with a new gasket to the transfer. Tighten to the specified torque.
CAUTION:
Do not reuse gasket.
