Overhaul

Mirror Actuator: Disassembly And Assembly

DISASSEMBLY AND ASSEMBLY

Disassembly

1. Remove the mirror glass. Refer to [Door Mirror Glass: Removal and Installation]

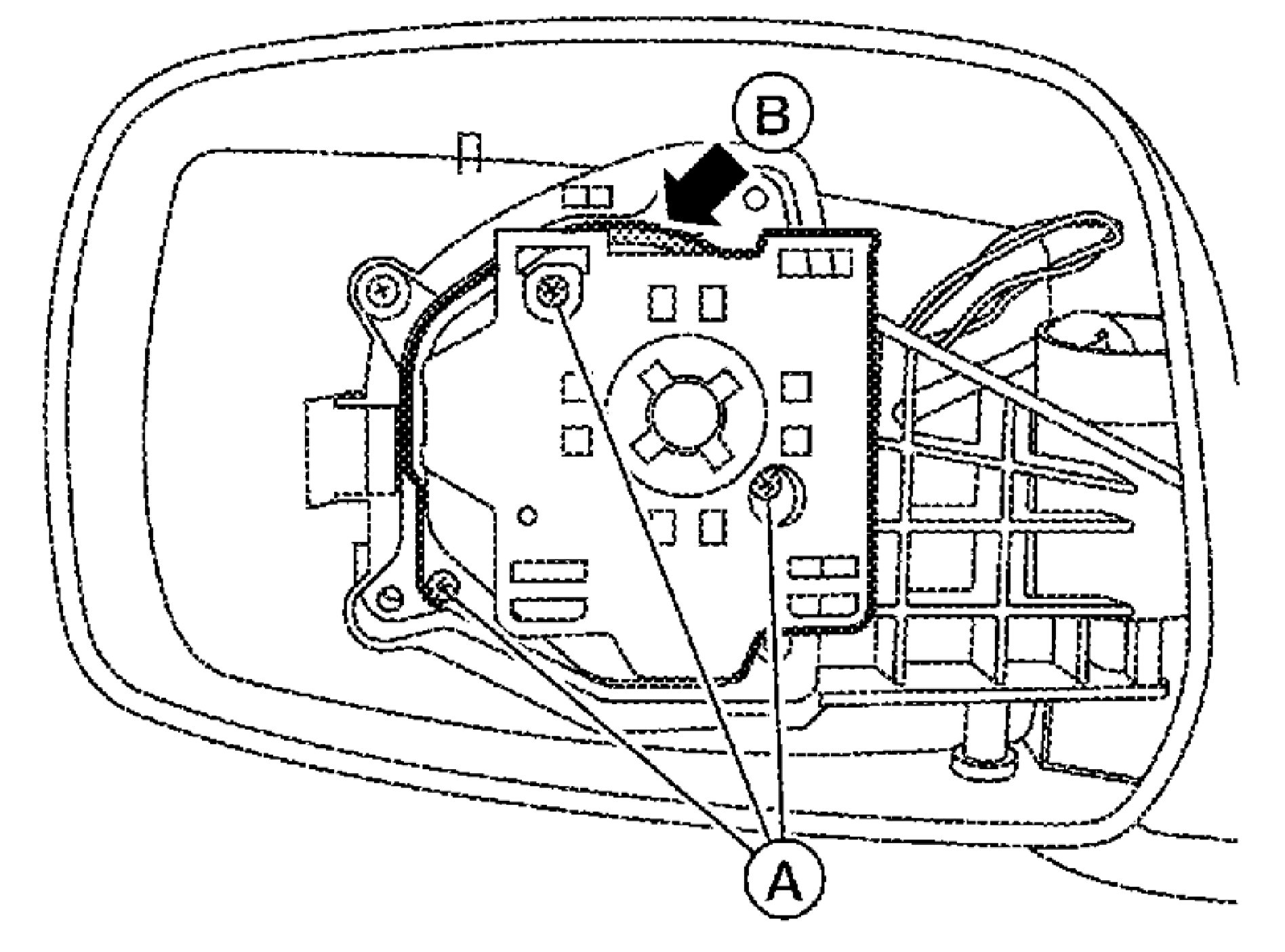

2. Remove the screws (A) and release the actuator from housing (B).

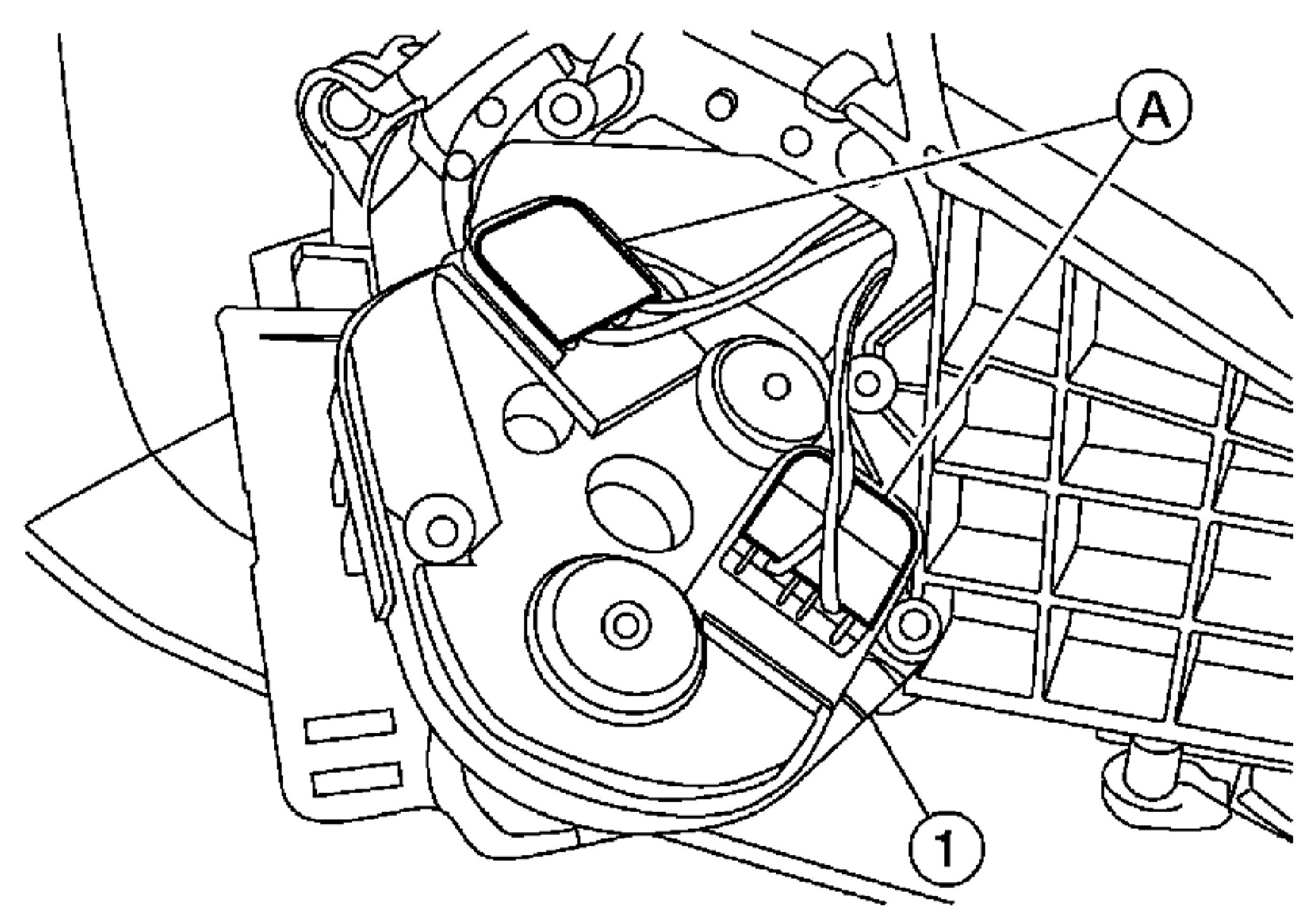

3. Disconnect the connectors (A) and remove the actuator (1).







Assembly

Assembly is the reverse order of disassembly.
