Keyfob Battery and Function Circuit Check

Keyfob Battery And Function Circuit Check

Description

The following functions are available when having and carrying electronic ID.
- Door lock/unlock
- Panic alarm

Remote control entry function and panic alarm function are available when operating the remote buttons.

Component Function Check

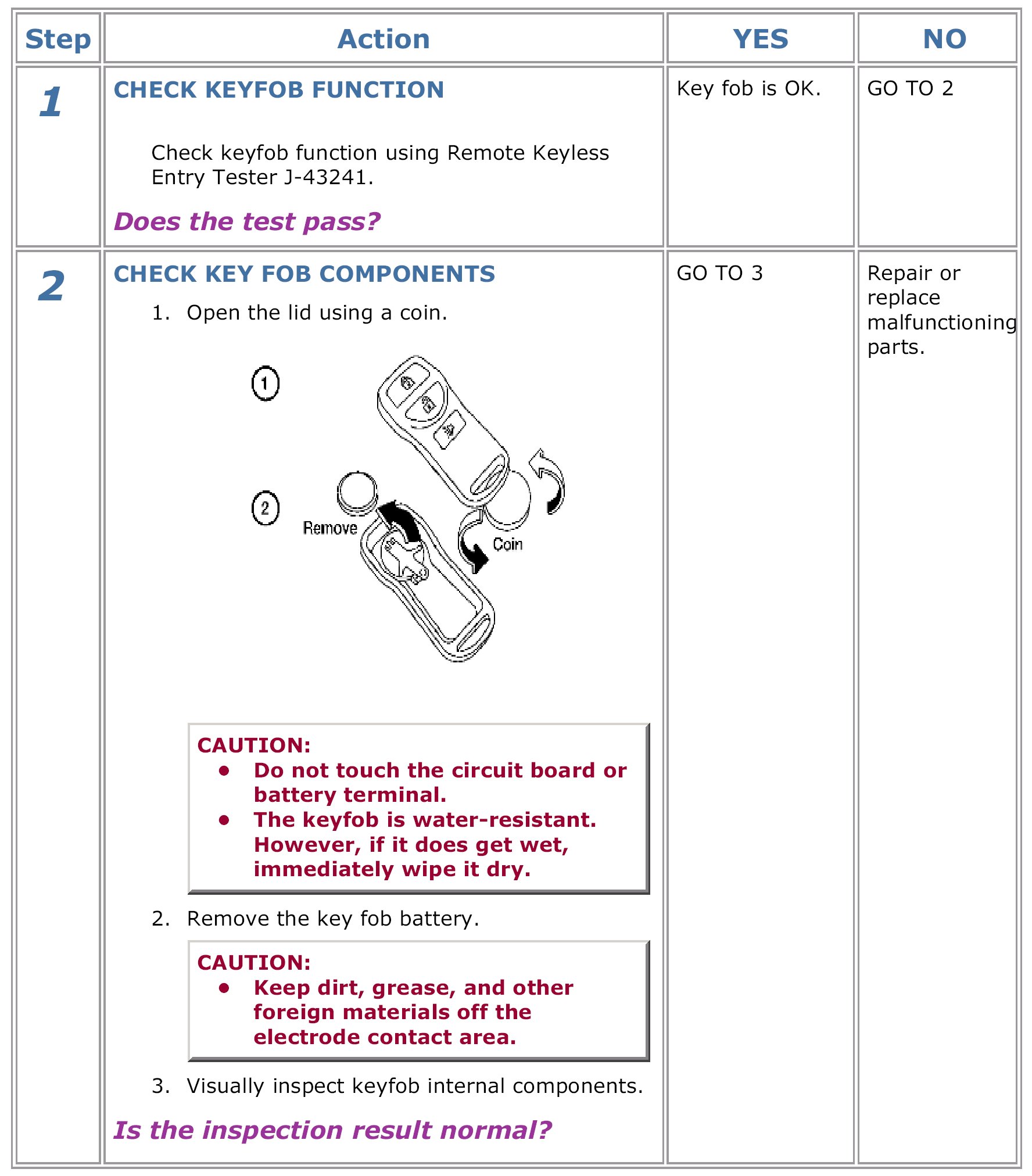

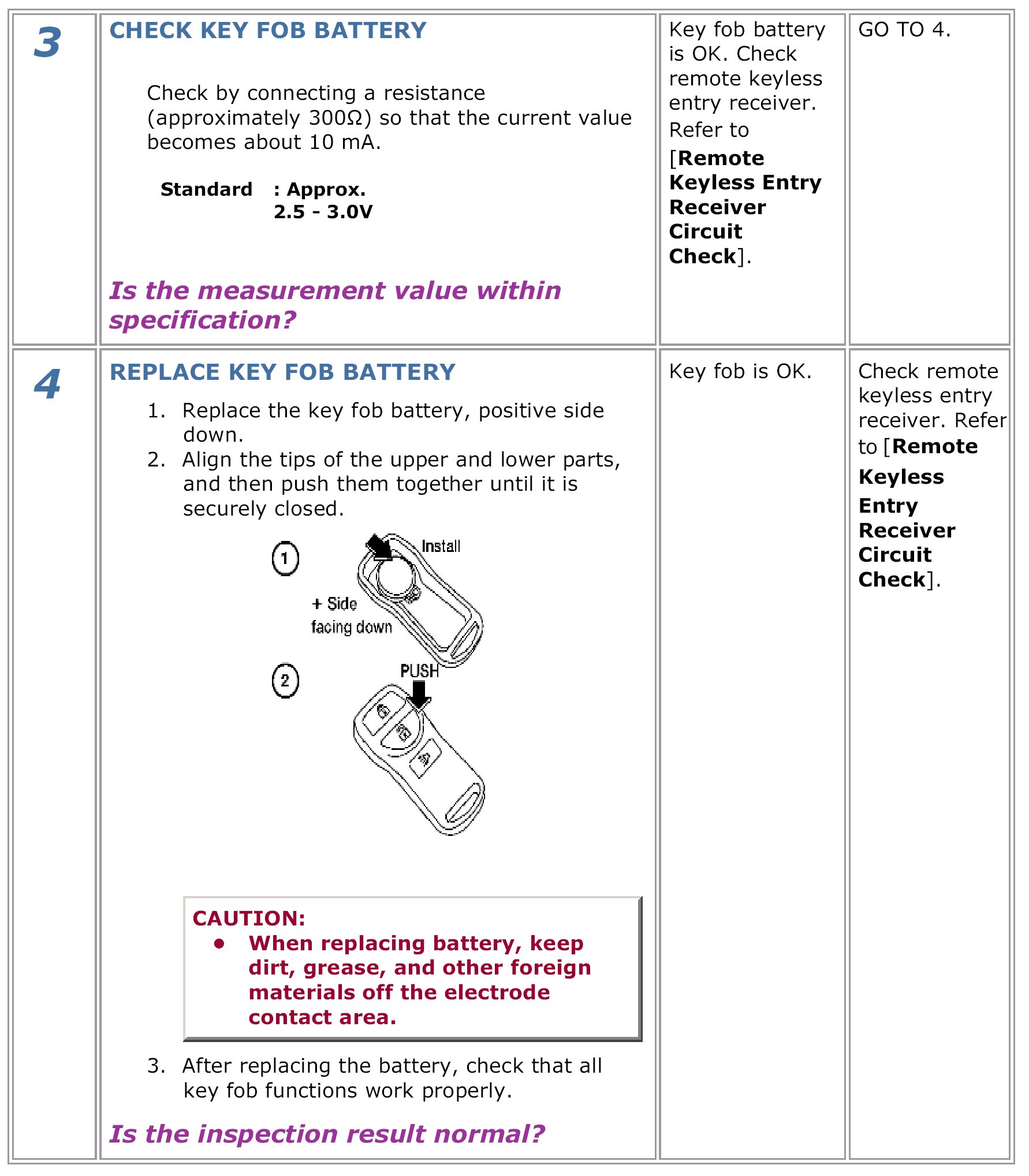

Diagnosis Procedure
