Radiator Cooling Fan: Testing and Inspection

Cooling Fan Circuit Check

Description

COMPONENT DESCRIPTION

Cooling Fan Motor
The cooling fan operates at each speed when the current flows in the cooling fan motor as follows.






Component Inspection

COOLING FAN MOTOR
1. Disconnect cooling fan motor harness connectors.






2. Supply cooling fan motor terminals with battery voltage and check operation.






Cooling fan motor should operate.
If NG, replace cooling fan motor.

Diagnosis Procedure

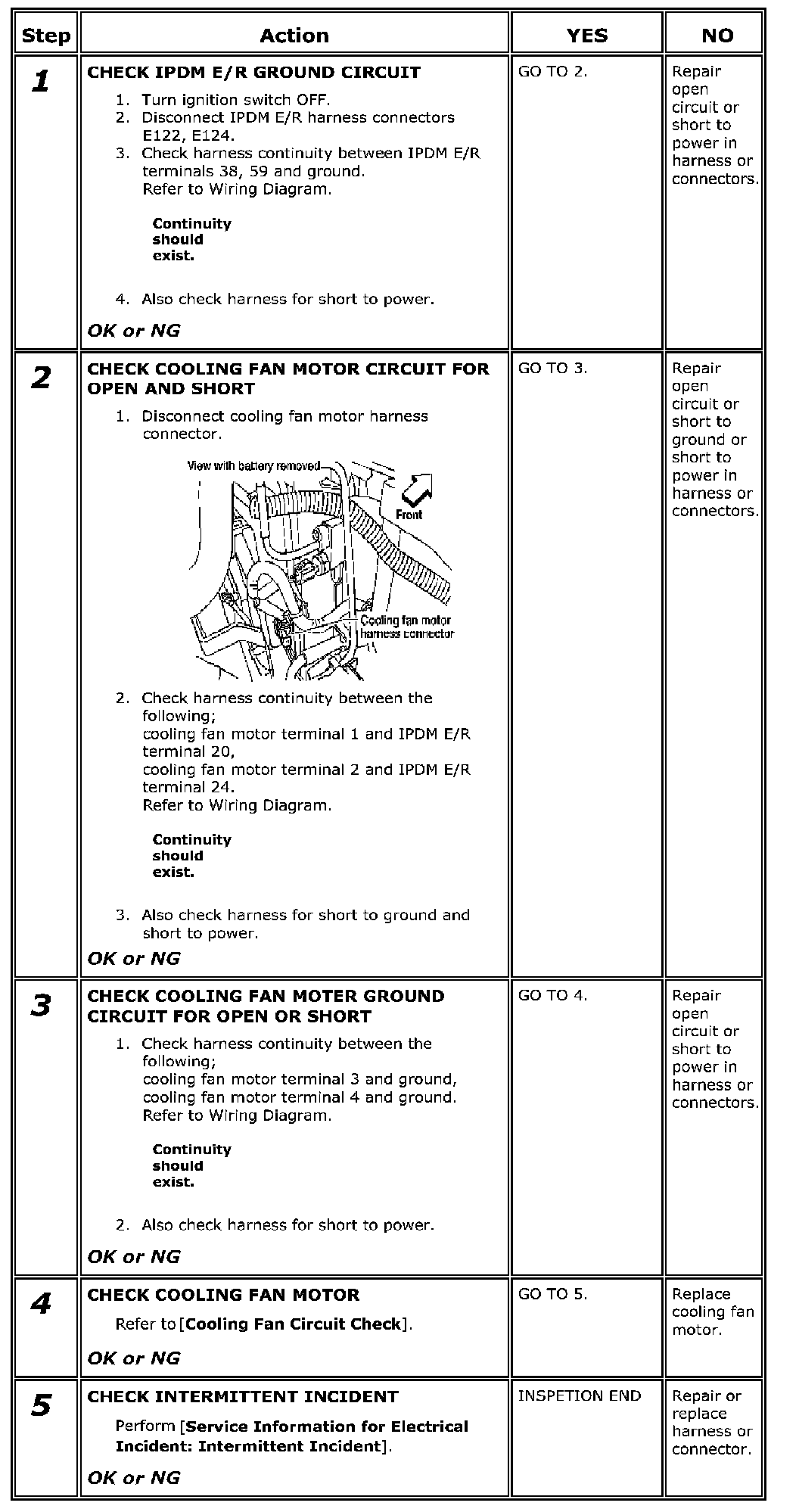

Step 1-5:
