Windshield Washer Reservoir: Service and Repair

Washer Fluid Reservoir: On-Vehicle Repair

REMOVAL AND INSTALLATION

Removal

1. Remove passenger front fender protector. Refer to [Front Fender Protector: Removal and Installation].

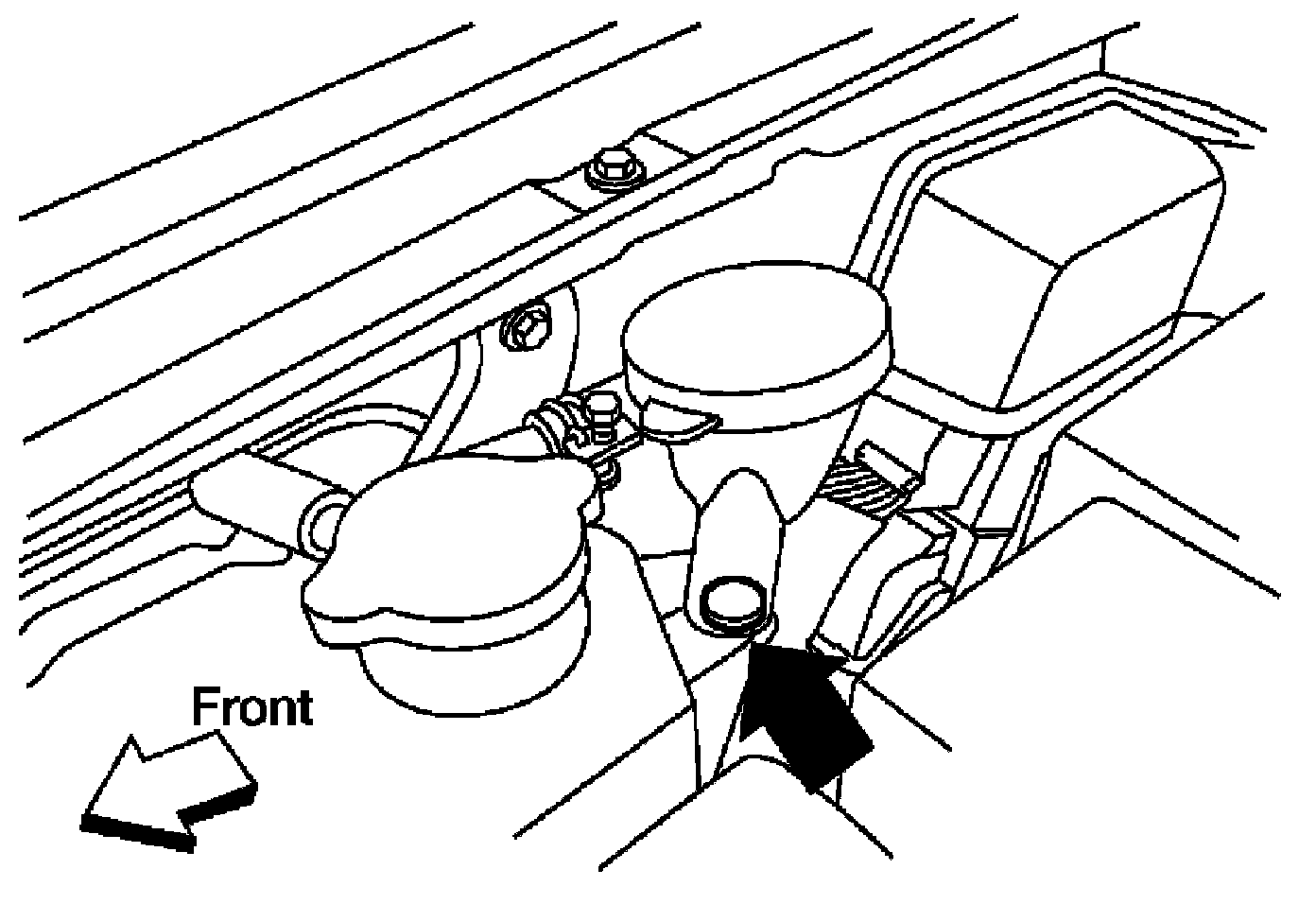

2. Remove clip, then remove washer fluid reservoir filler neck from washer fluid reservoir.

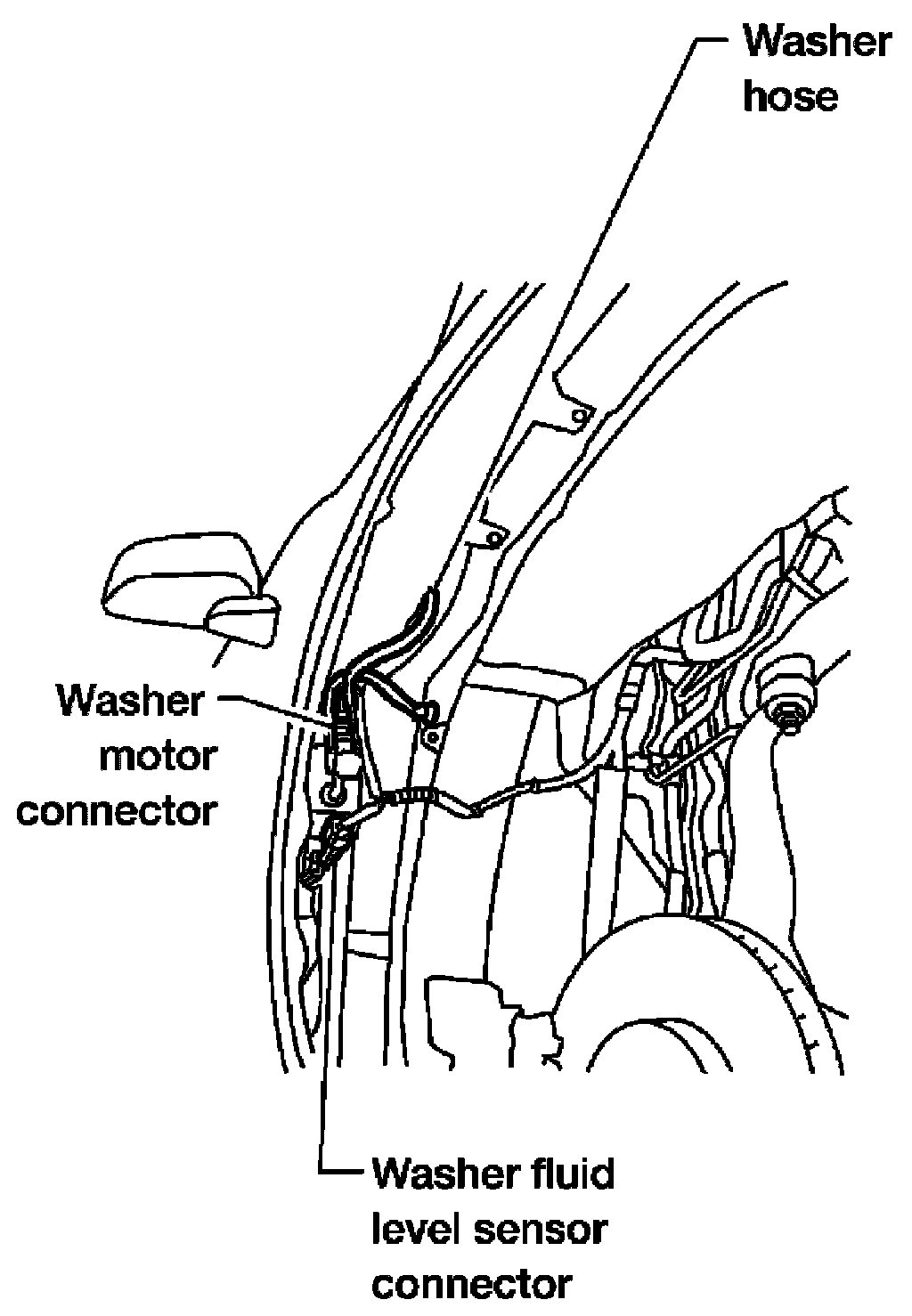

3. Disconnect washer hose.







4. Disconnect washer motor connector.
5. Disconnect washer fluid level sensor connector if equipped.

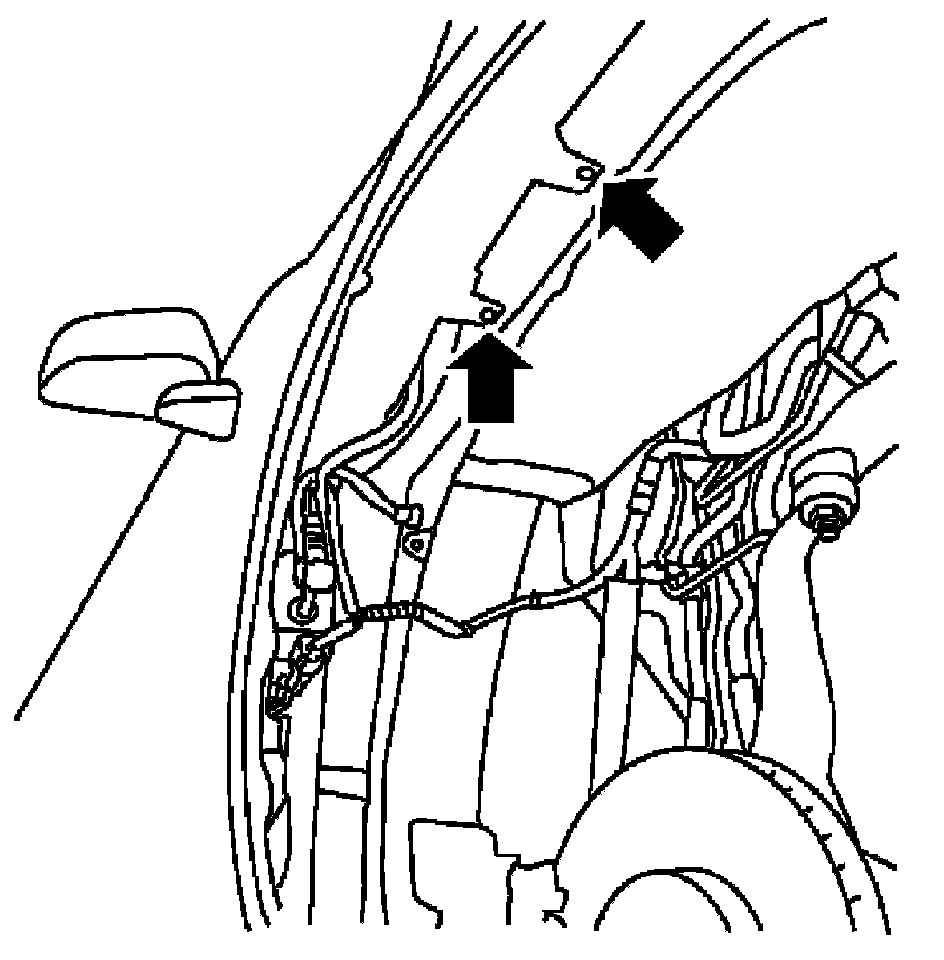

6. Remove washer fluid reservoir screws and remove washer fluid reservoir.







Installation

Installation is in the reverse order of removal.

CAUTION: After installation, add water up to the upper level of the washer fluid reservoir inlet and check for water leaks.
