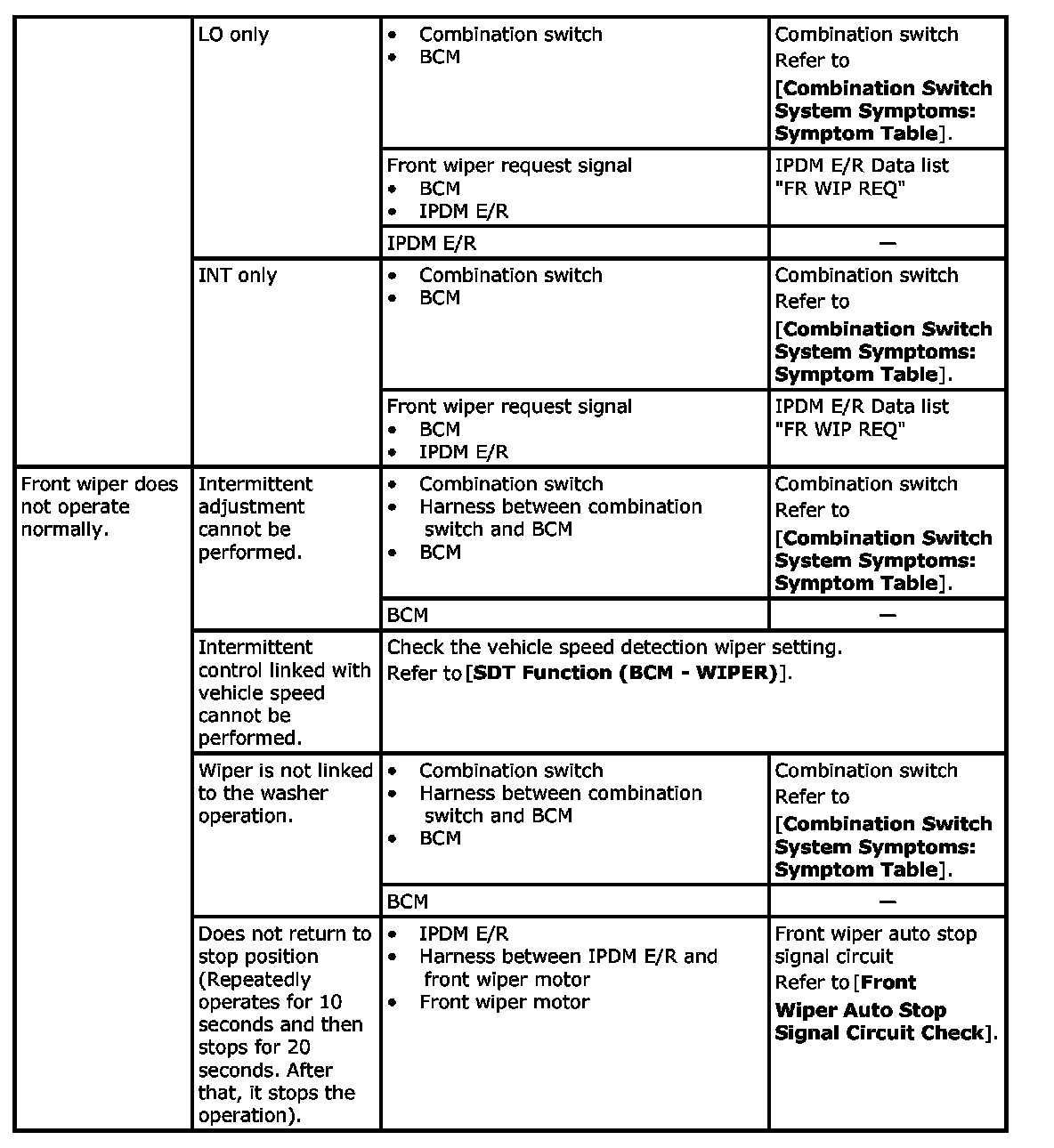

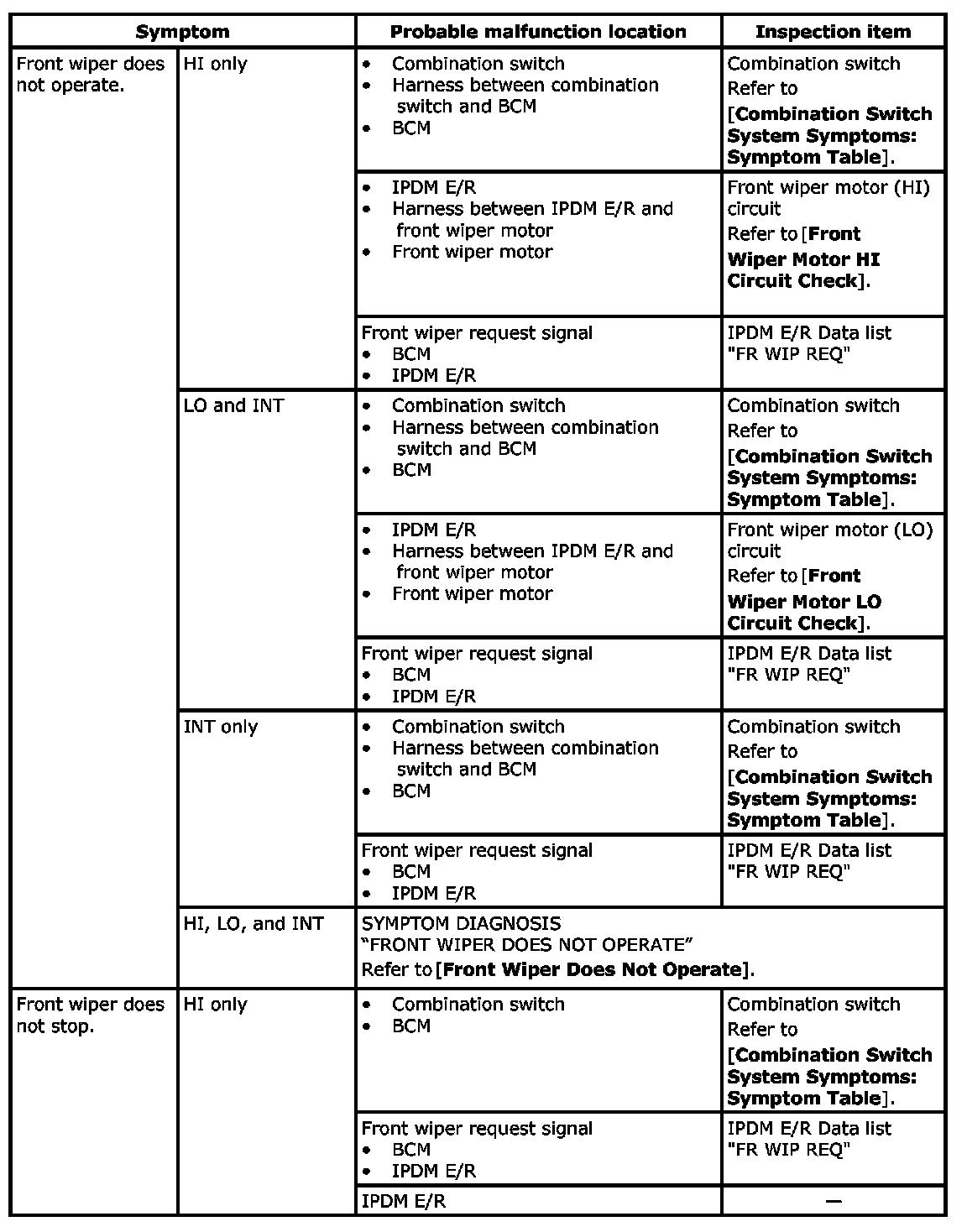

Wiper and Washer System Symptoms: Symptom Table

Wiper And Washer System Symptoms: Symptom Table

CAUTION:
- Perform "DTC check" with SDT before performing the diagnosis by symptom.
- Perform the diagnosis by DTC if DTC is detected.
