Front Wiper Auto Stop Signal Circuit Check

Front Wiper Auto Stop Signal Circuit Check

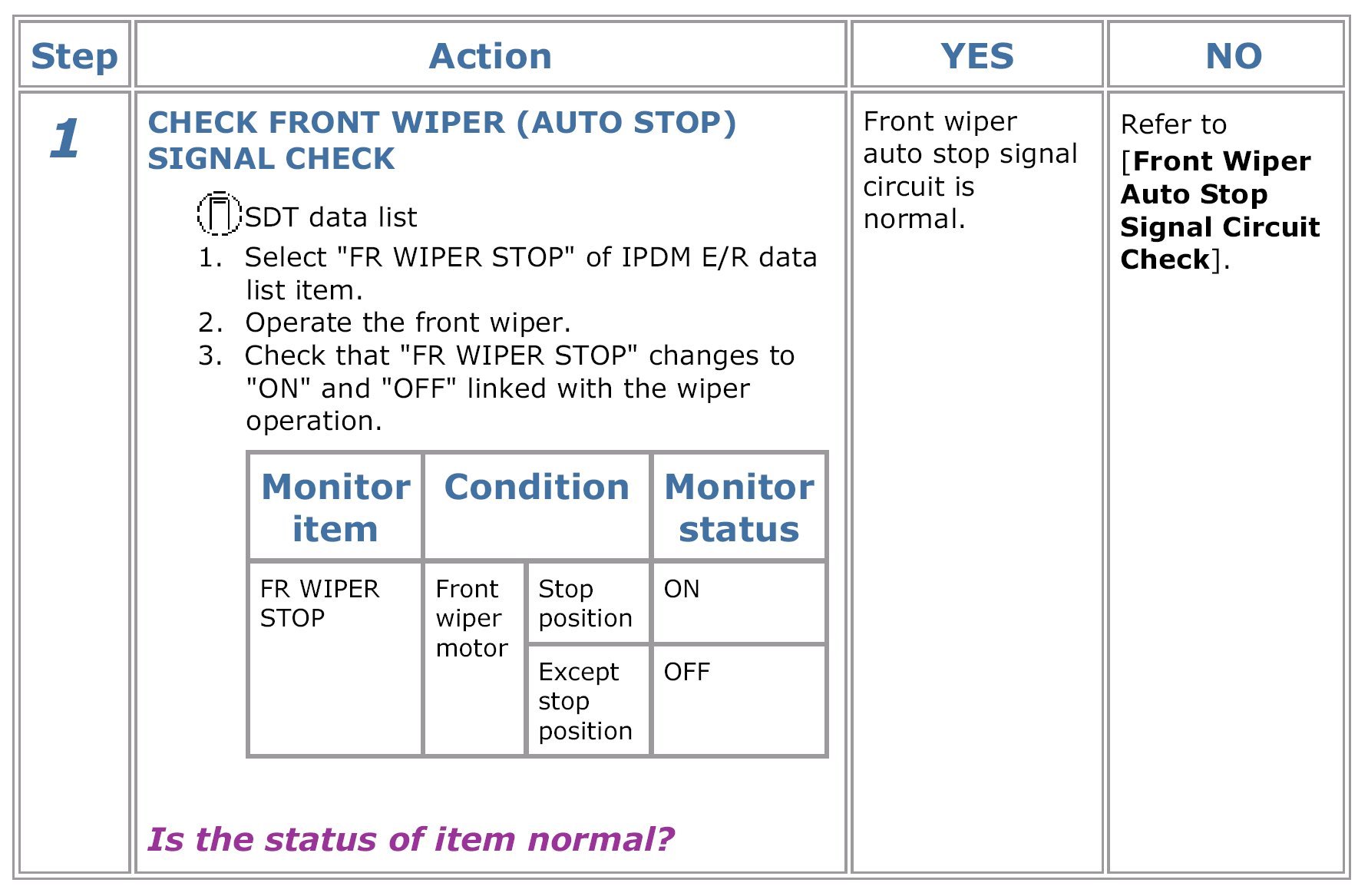

Component Function Check

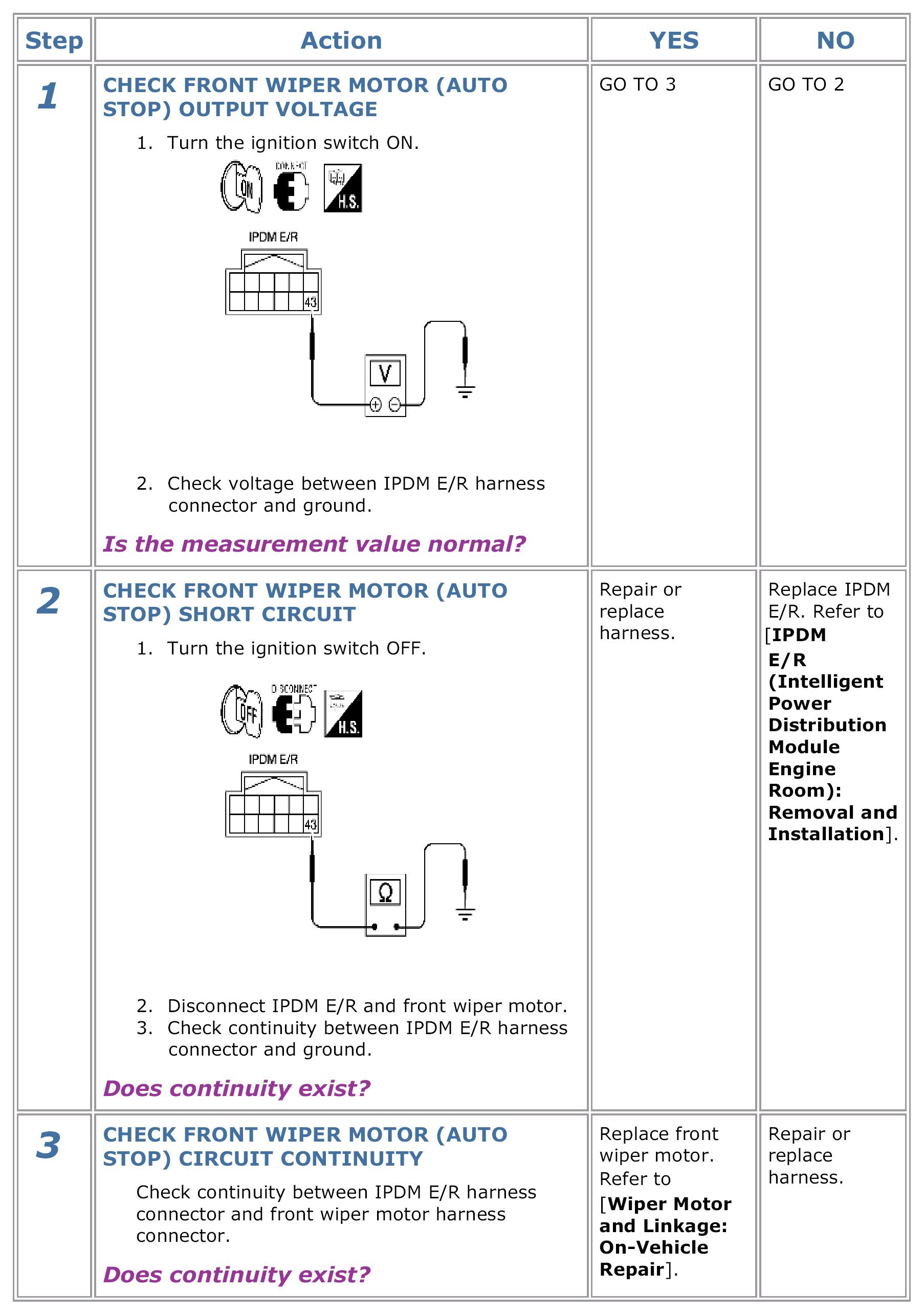

Diagnosis Procedure
