Power Supply and Ground Circuit Check [Rear Power Window Switch]

Power Supply And Ground Circuit Check [Rear Power Window Switch]

Description

- BCM supplies power.
- Rear power window motor will be operated if rear power window switch is operated.

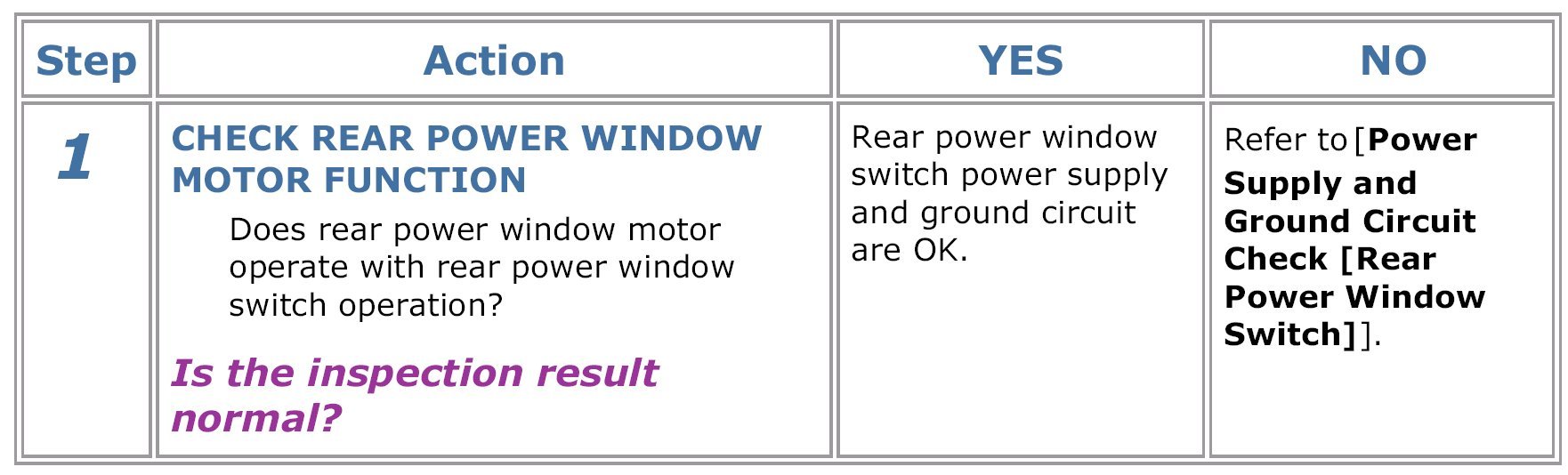

Component Function Check

Rear Power Window Switch







Diagnosis Procedure

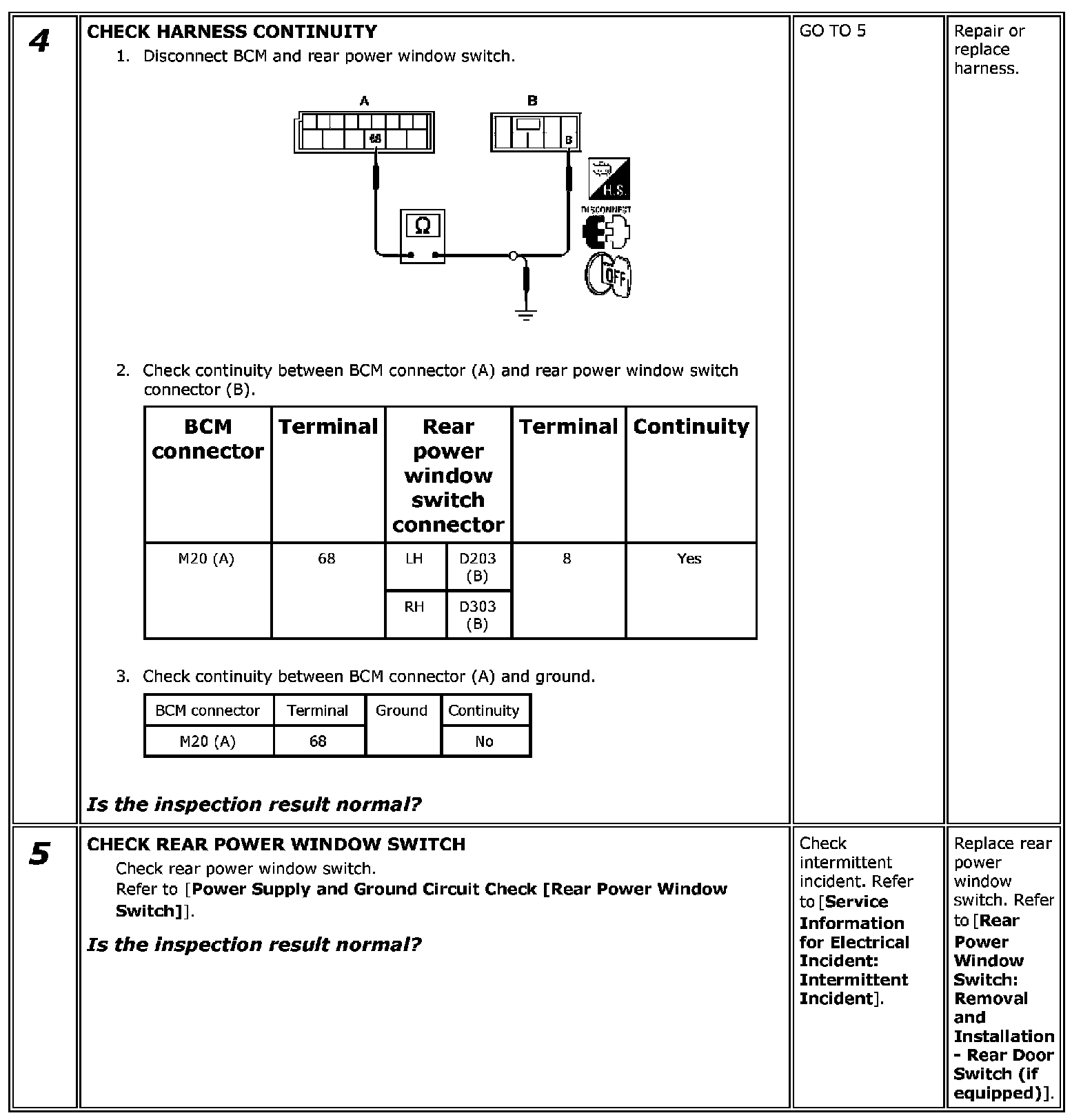

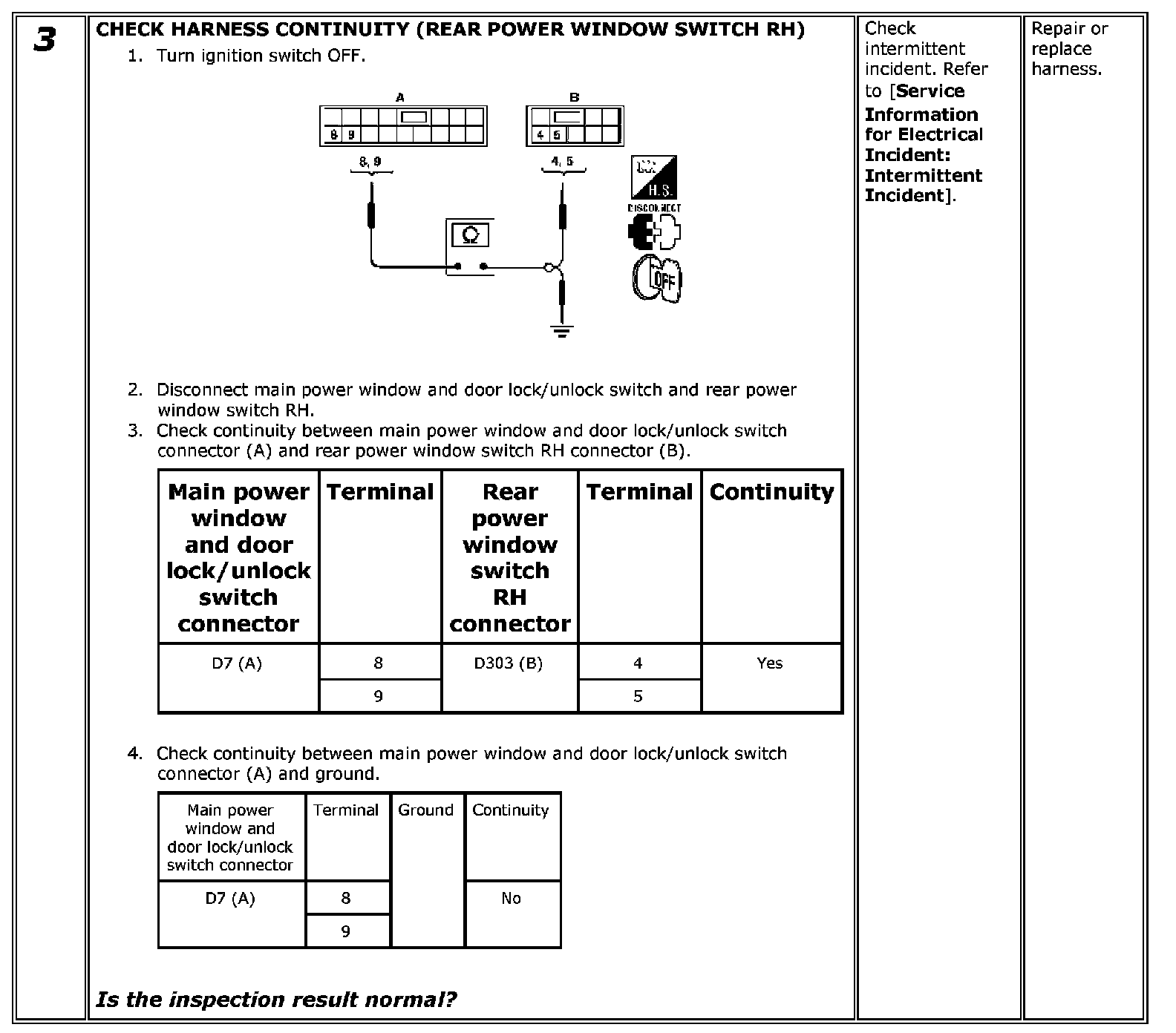

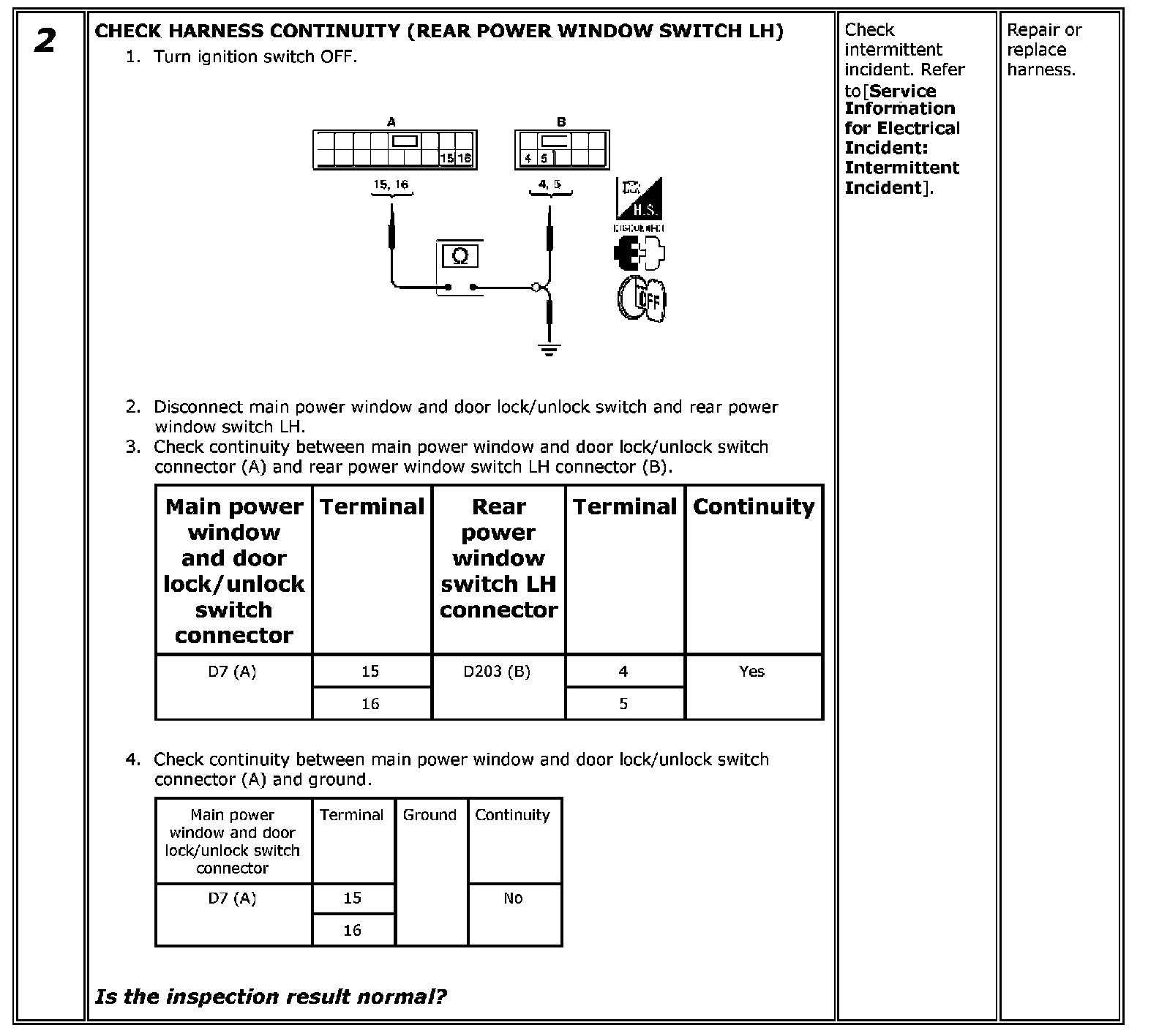

Rear Power Window Switch Power Supply Circuit Check

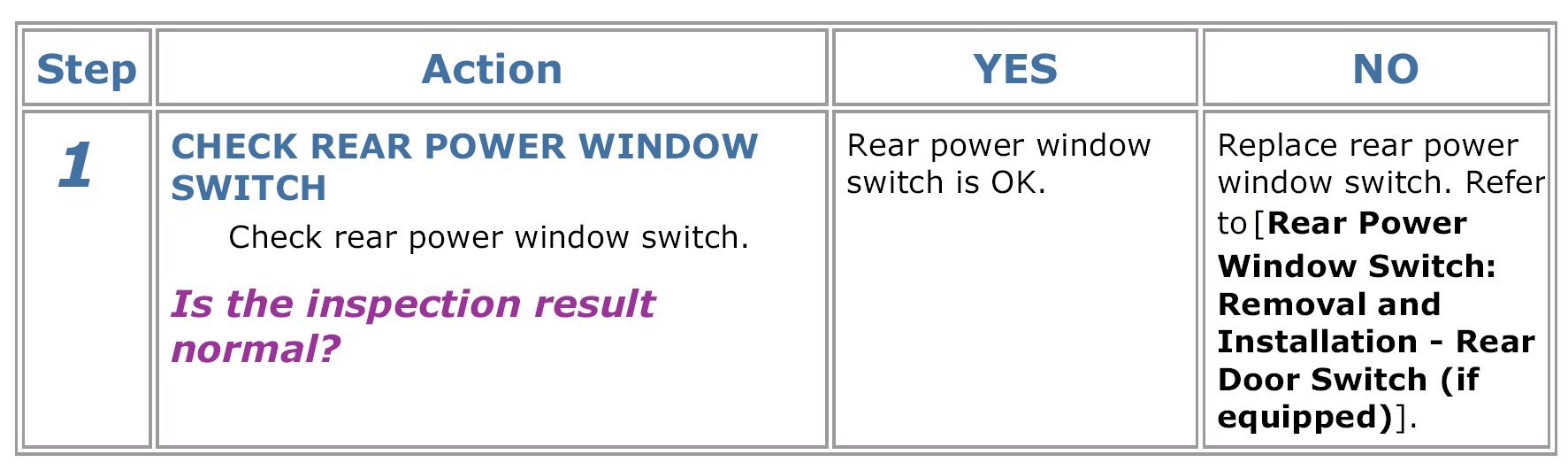

Component Inspection
