Power Supply and Ground Circuit Check [Front Power Window Switch]

Power Supply And Ground Circuit Check [Front Power Window Switch]

Description

- BCM supplies power.
- Front power window motor RH will be operated if power window and door lock/unlock switch RH is operated.

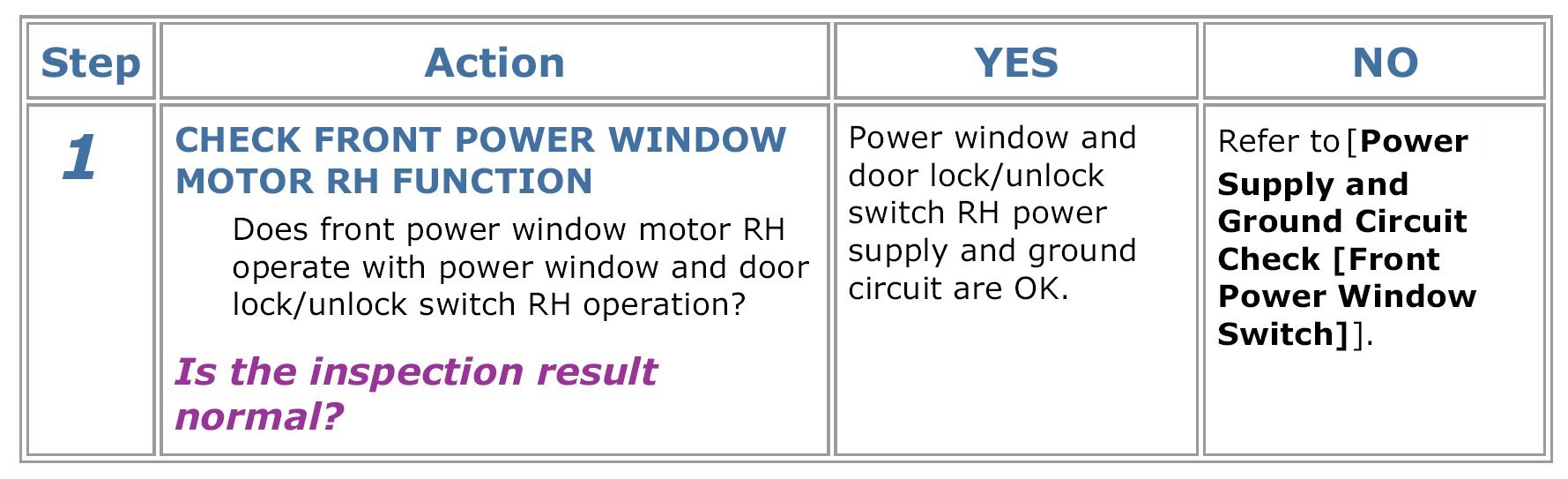

Component Function Check

Power Window And Door Lock/Unlock Switch RH







Diagnosis Procedure

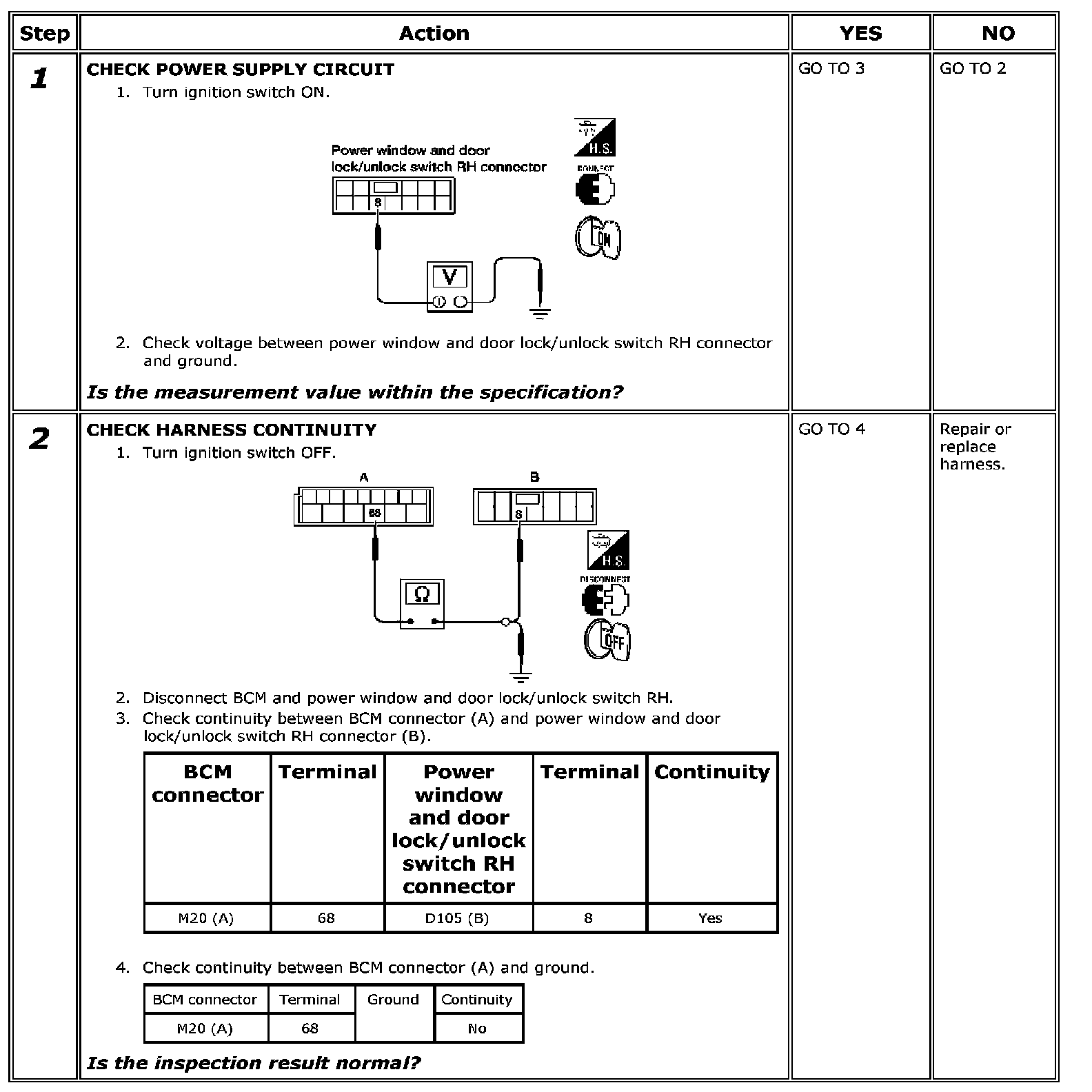

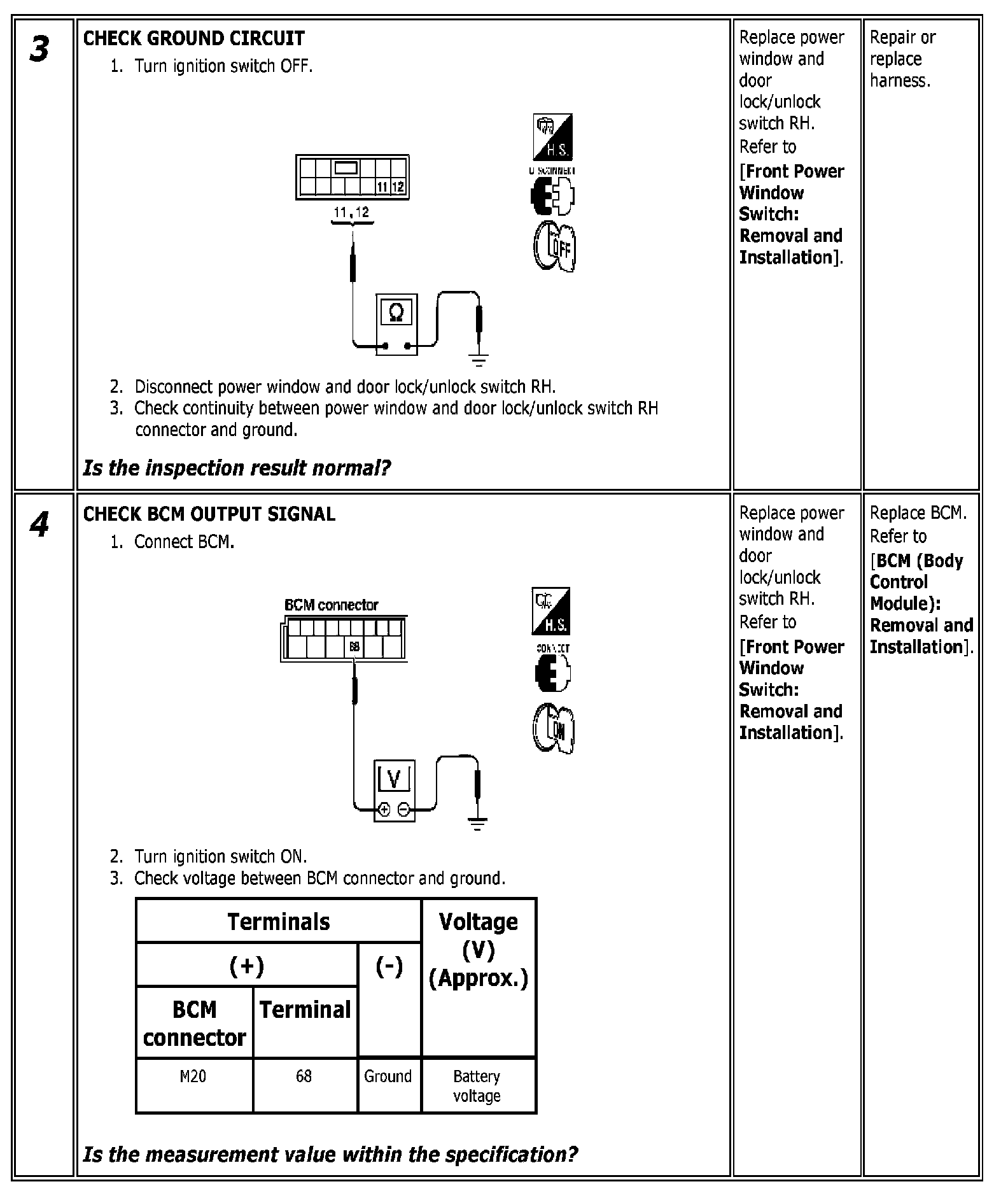

Power Window And Door Lock/Unlock Switch RH Power Supply Circuit Check
