Door Switch Circuit Check [King Cab]

Door Switch Circuit Check [King Cab]

Description

Detects door open/close condition.

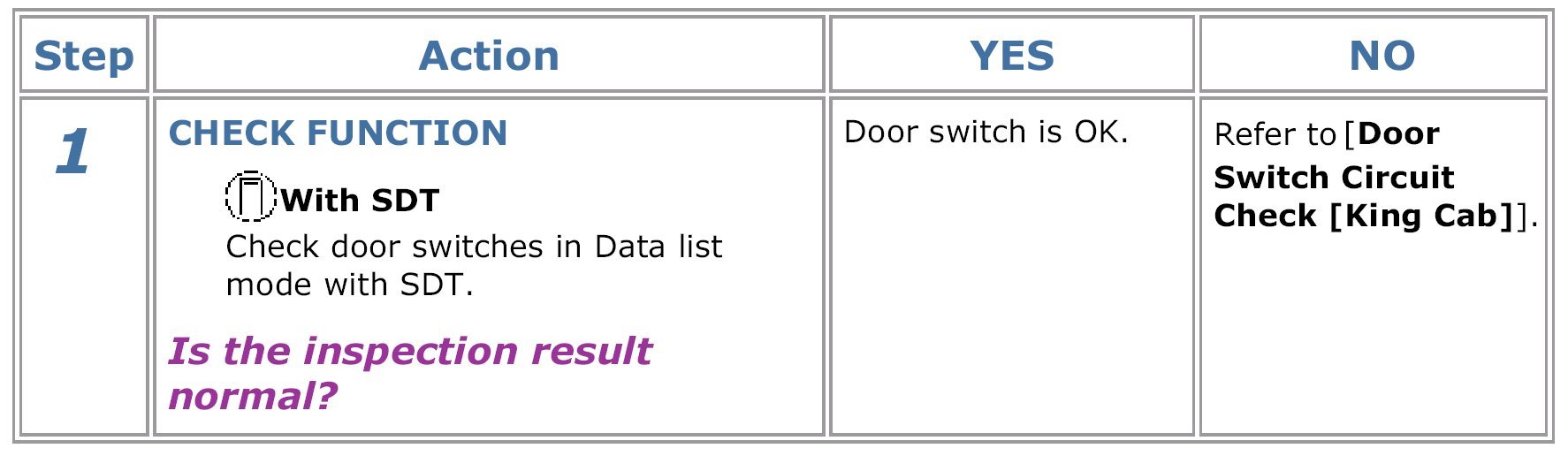

Component Function Check

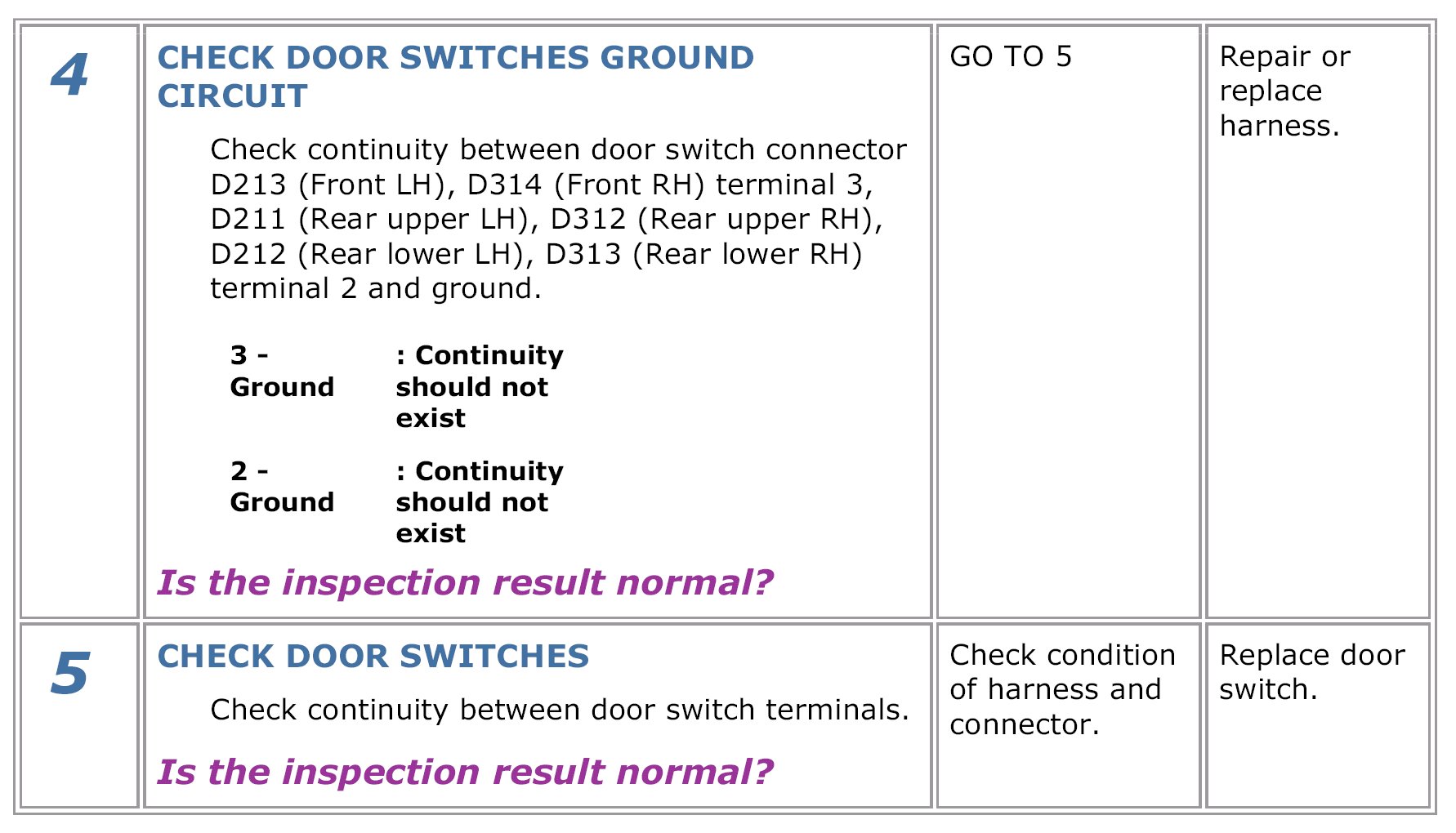

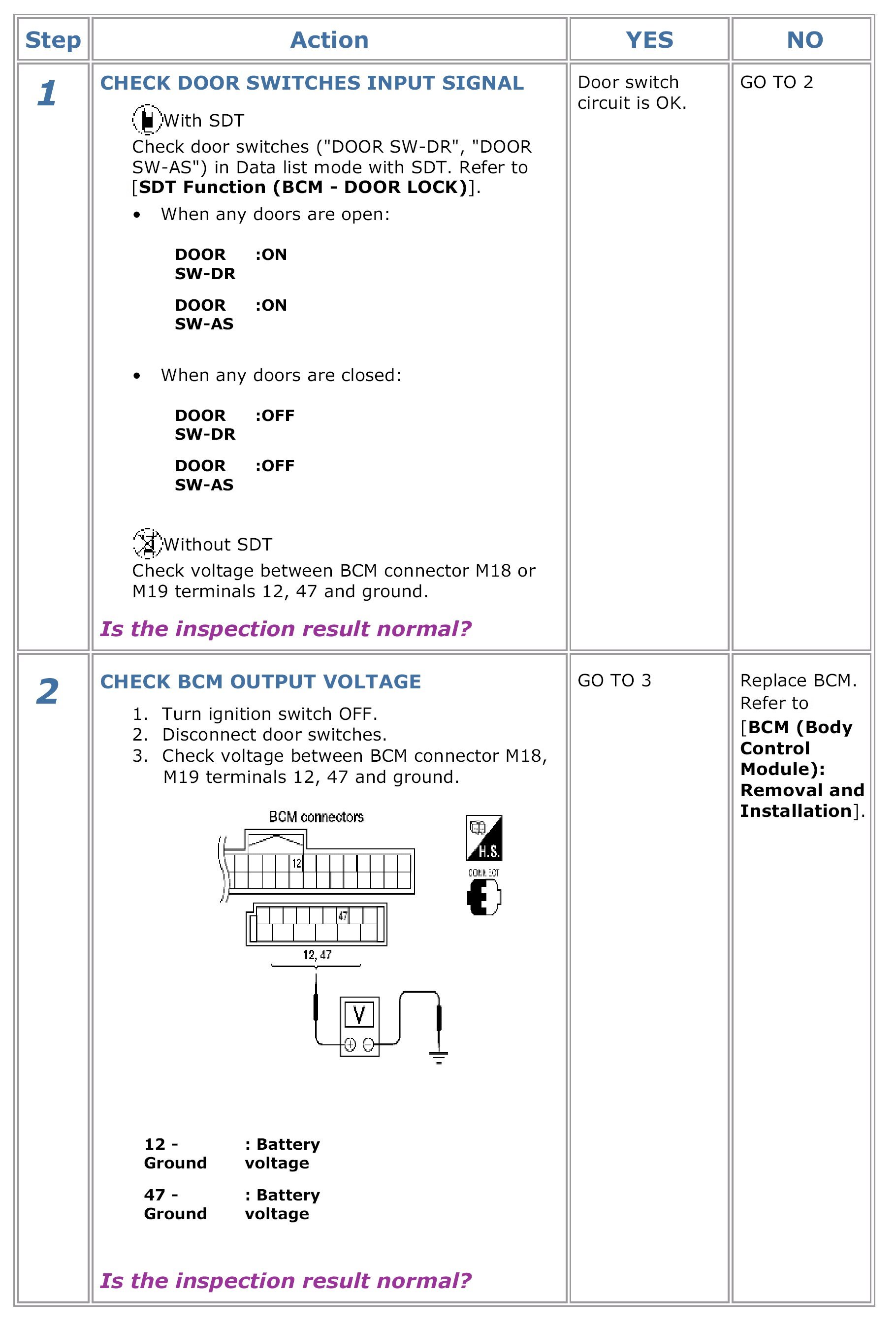

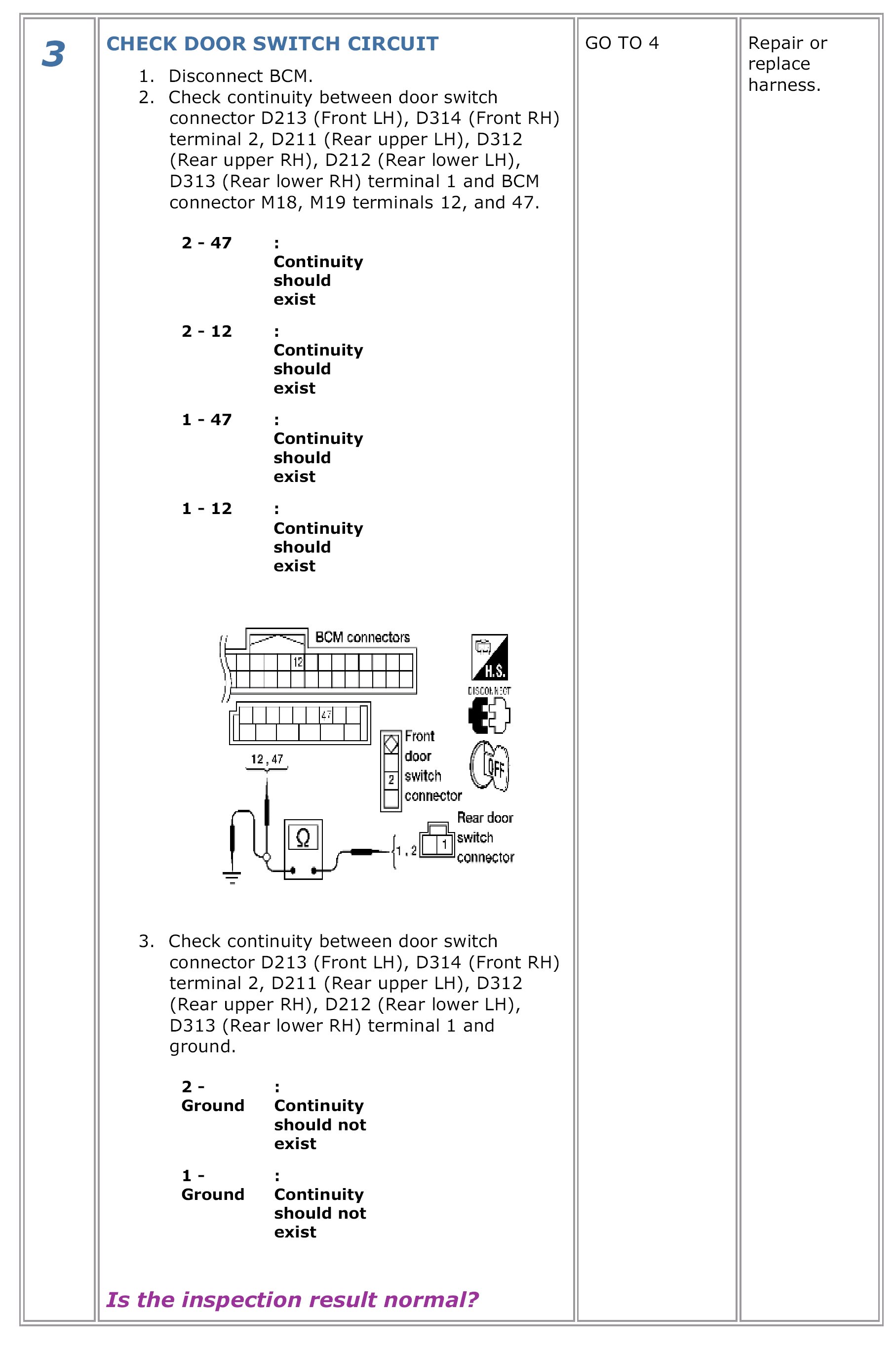

Diagnosis Procedure
