ECU Diagnosis: Power Window System

ECU Diagnosis: Power Window System

Terminal Layout

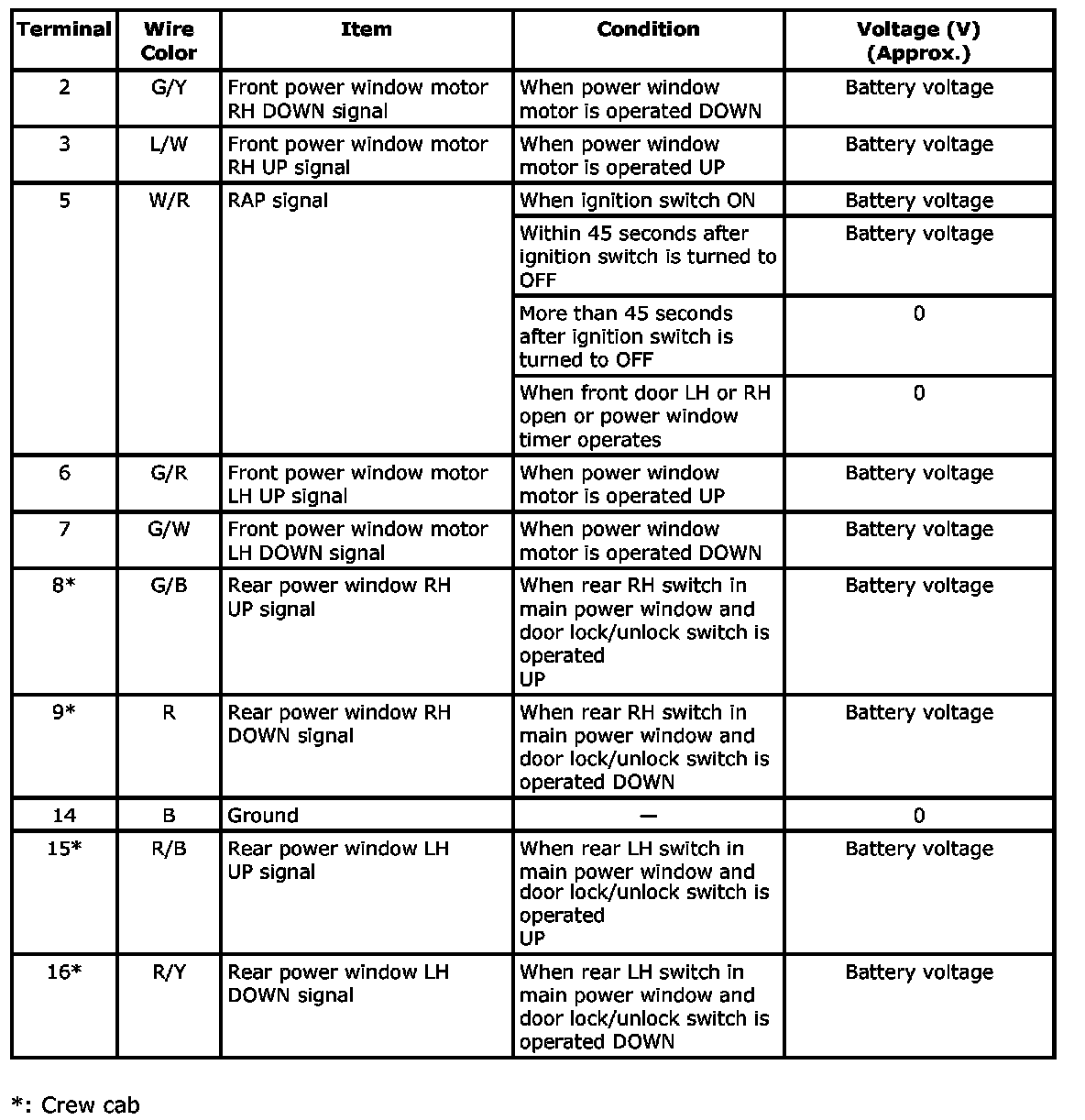

Physical Values
