Rear Window Defogger Power Supply and Ground Circuit Check

Rear Window Defogger Power Supply And Ground Circuit Check

Description

Heats the heating wire with the power supply from the rear window defogger relay to prevent the rear window from fogging up.

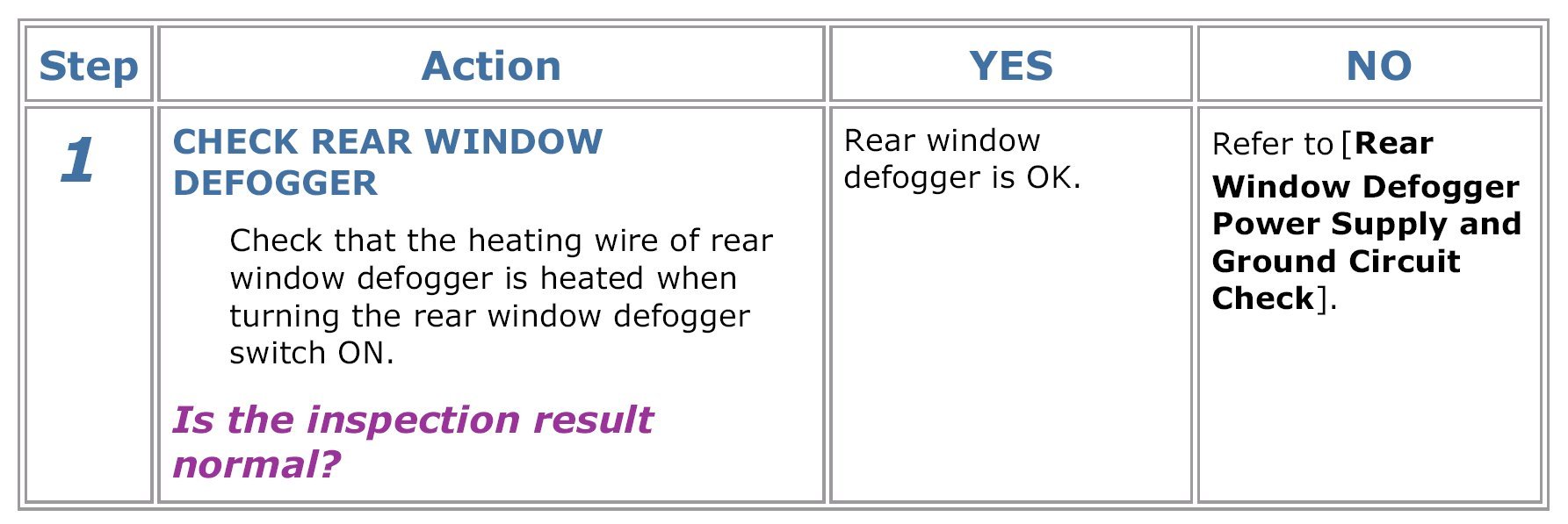

Component Function Check

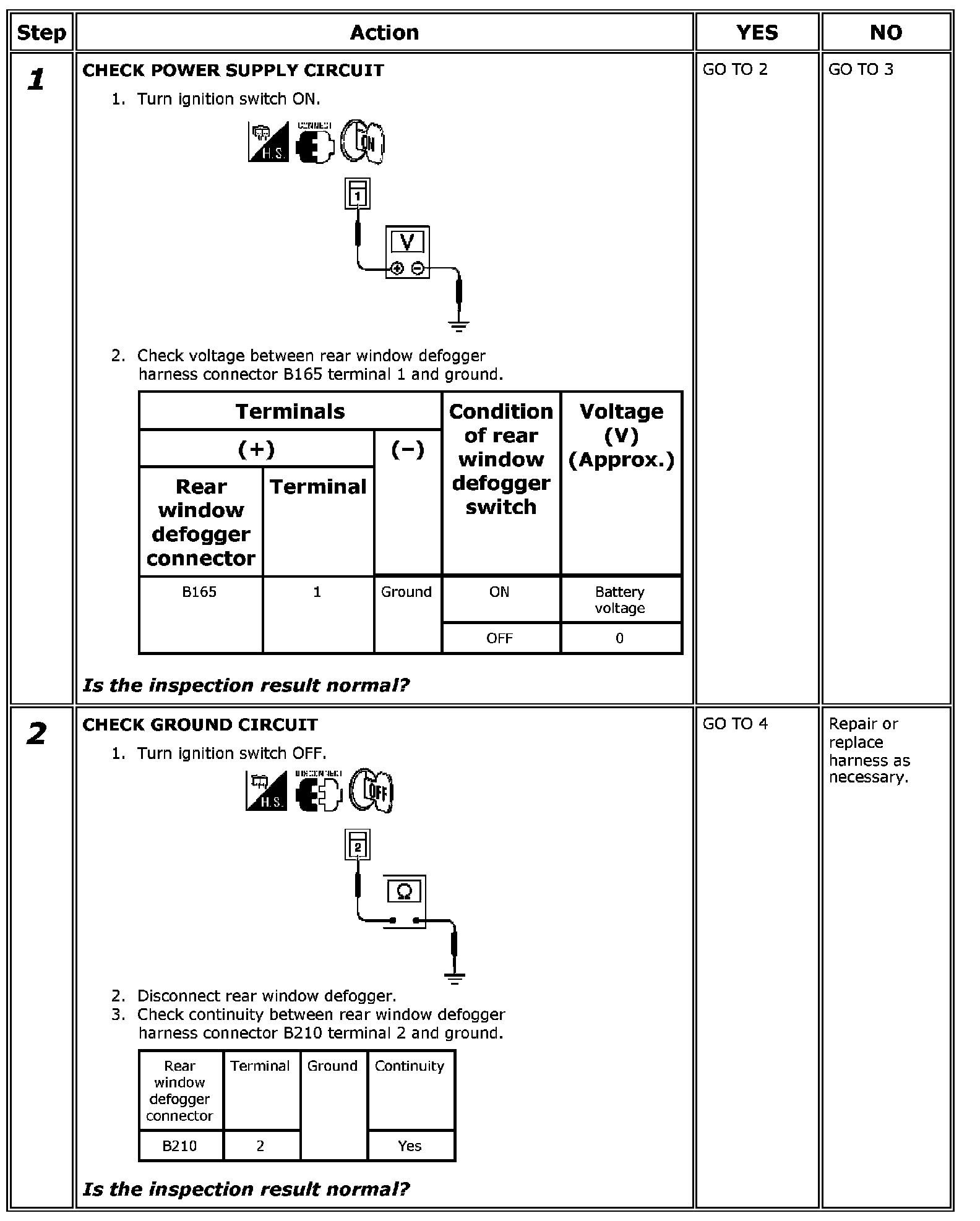

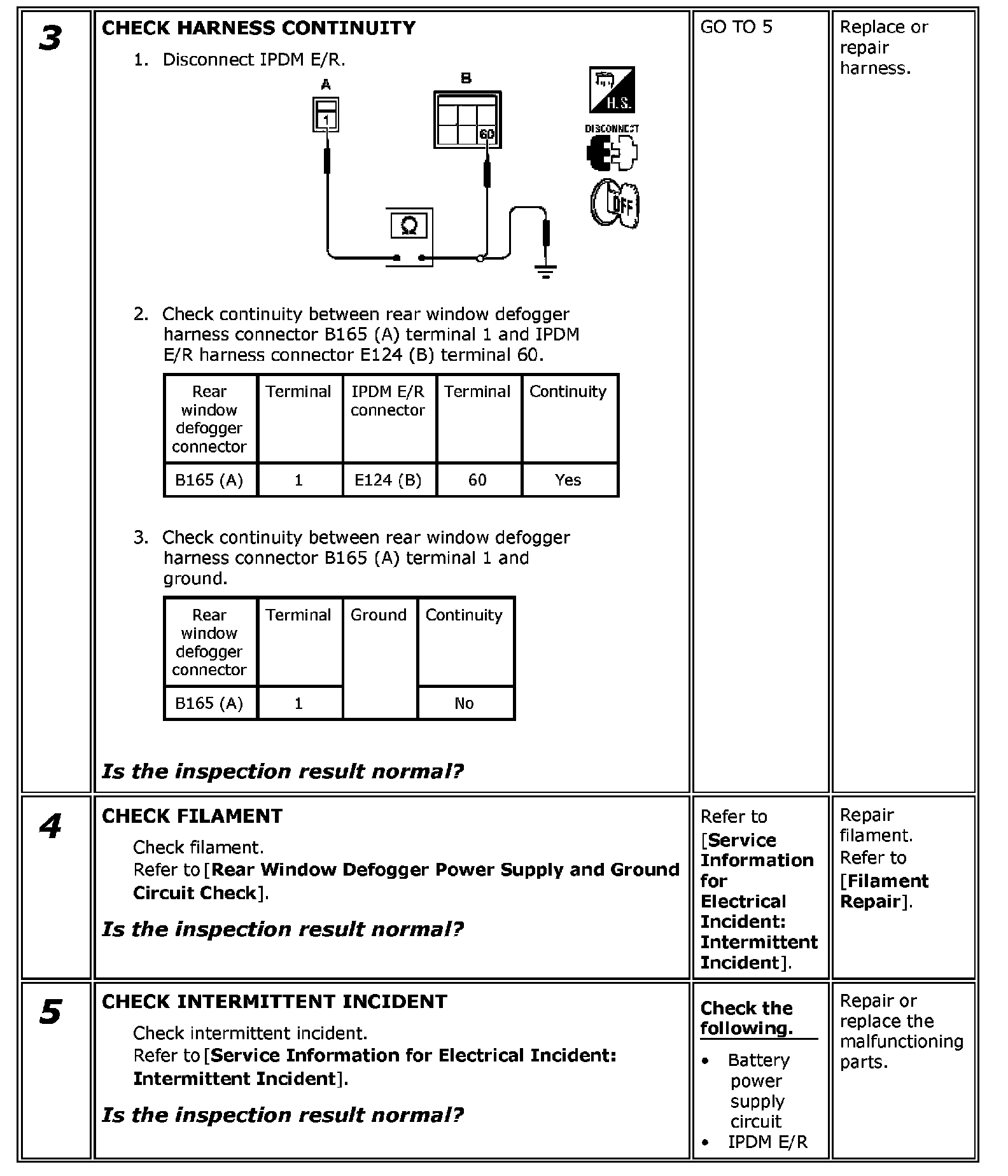

Diagnosis Procedure

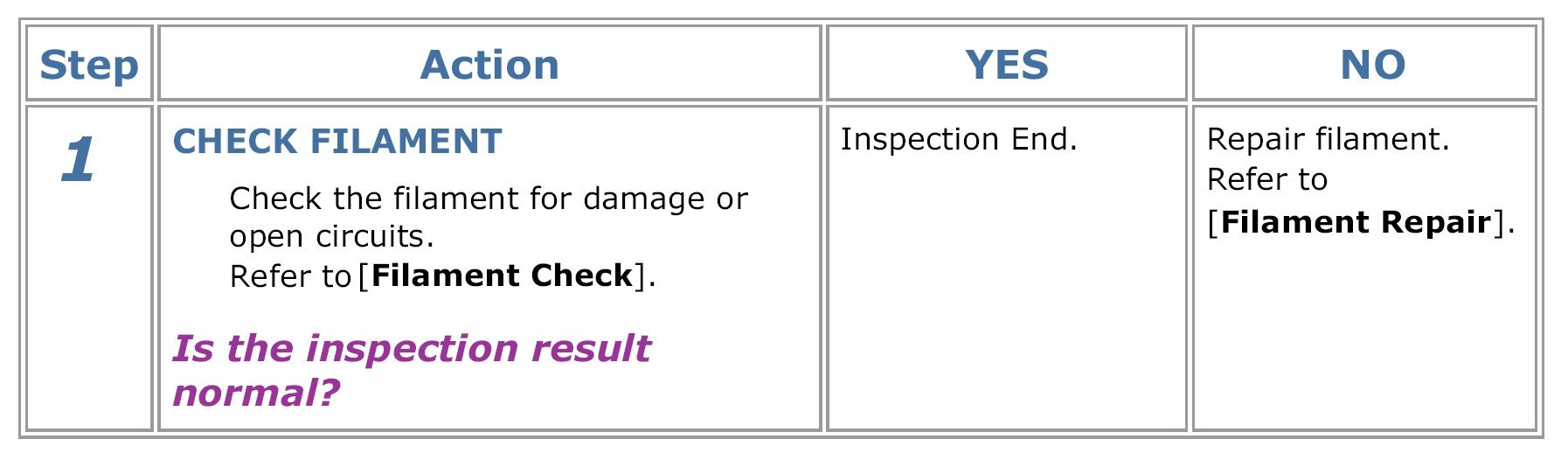

Component Inspection
