Diff Lock Indicator Lamp Inoperative

DIFF Lock Indicator Lamp Inoperative

SYMPTOM: DIFF LOCK indicator lamp does not turn ON for approx. 1 second when turning ignition switch to "ON".

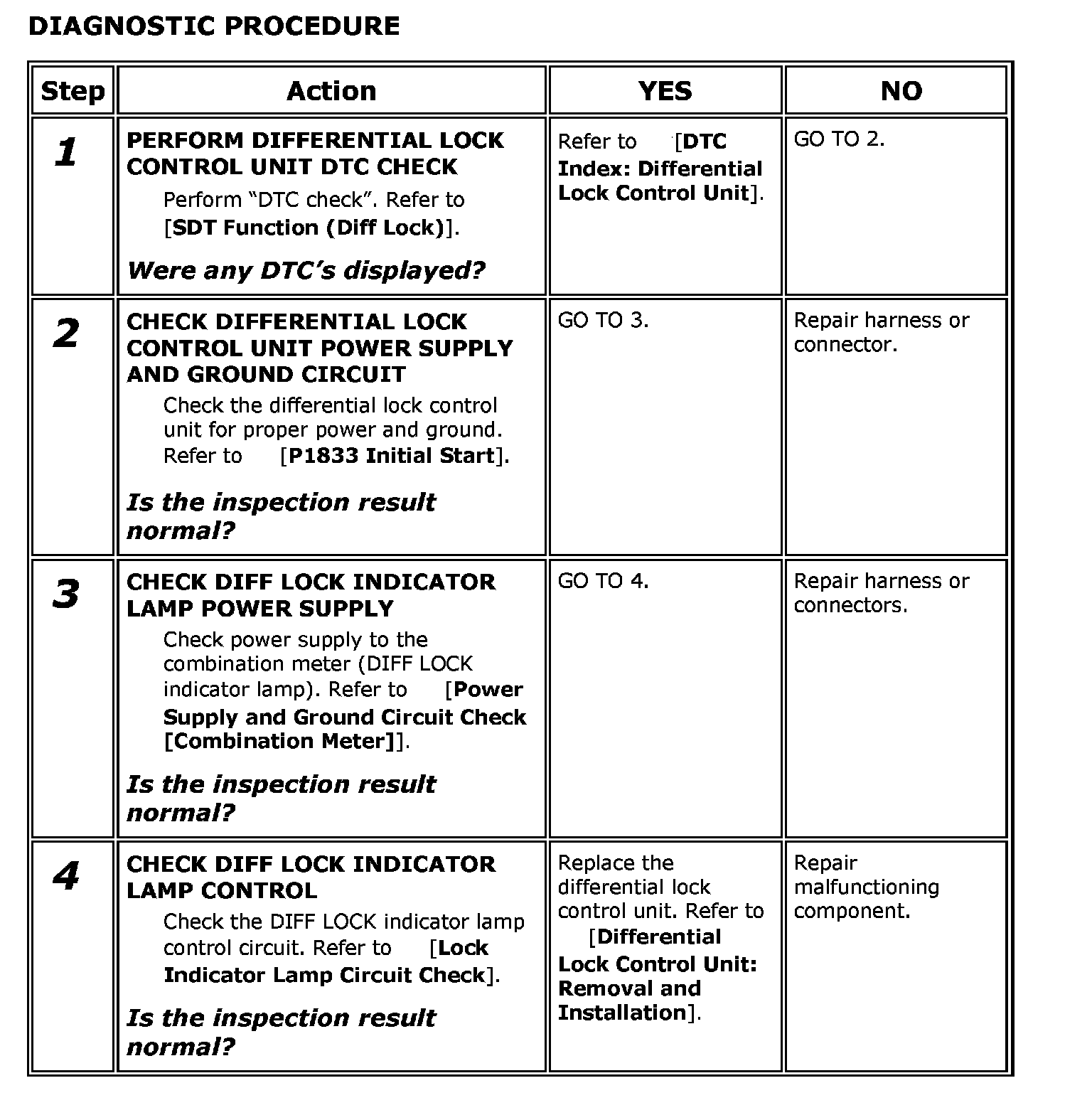

DIAGNOSTIC PROCEDURE

Step 1-4:
