Pinout Values and Diagnostic Parameters

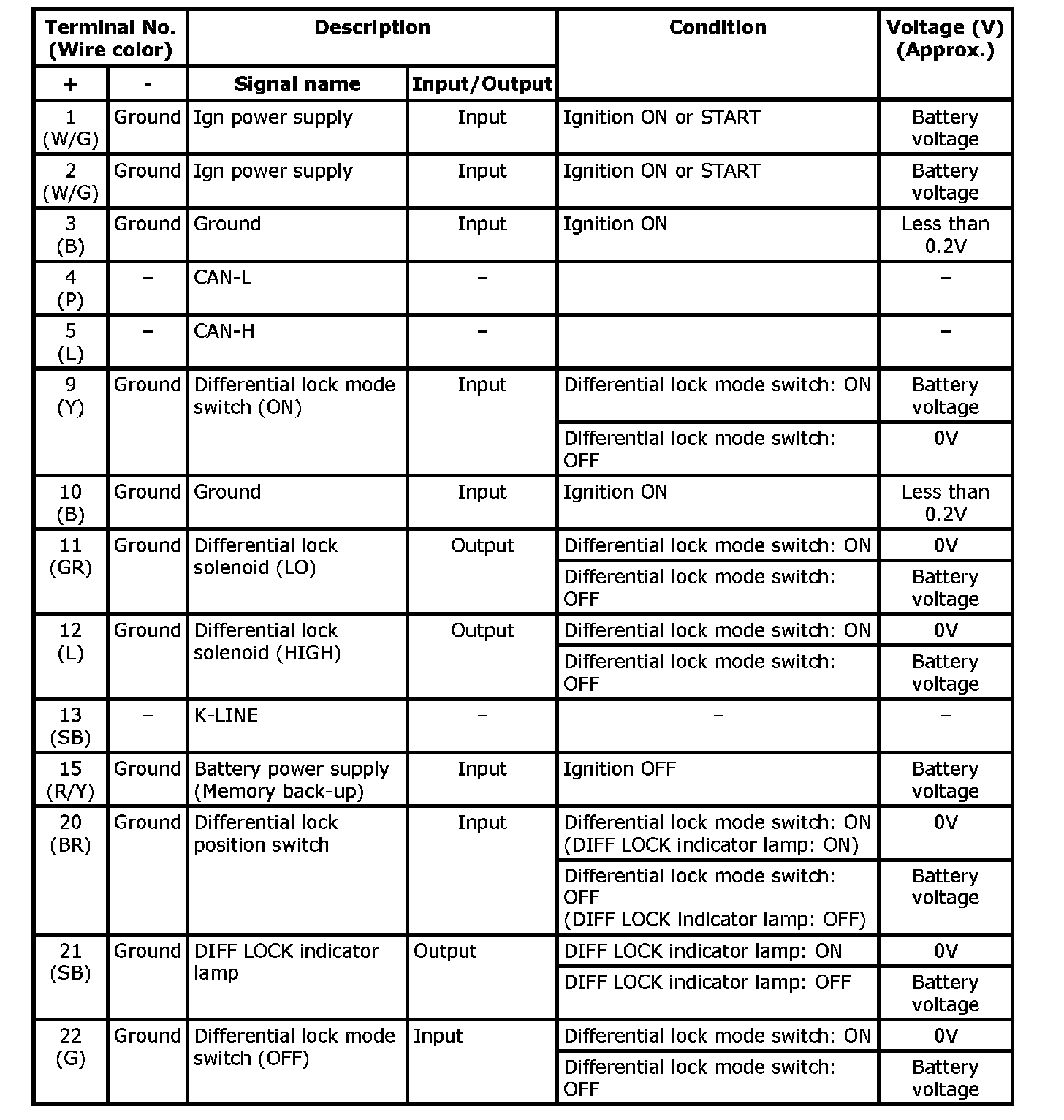

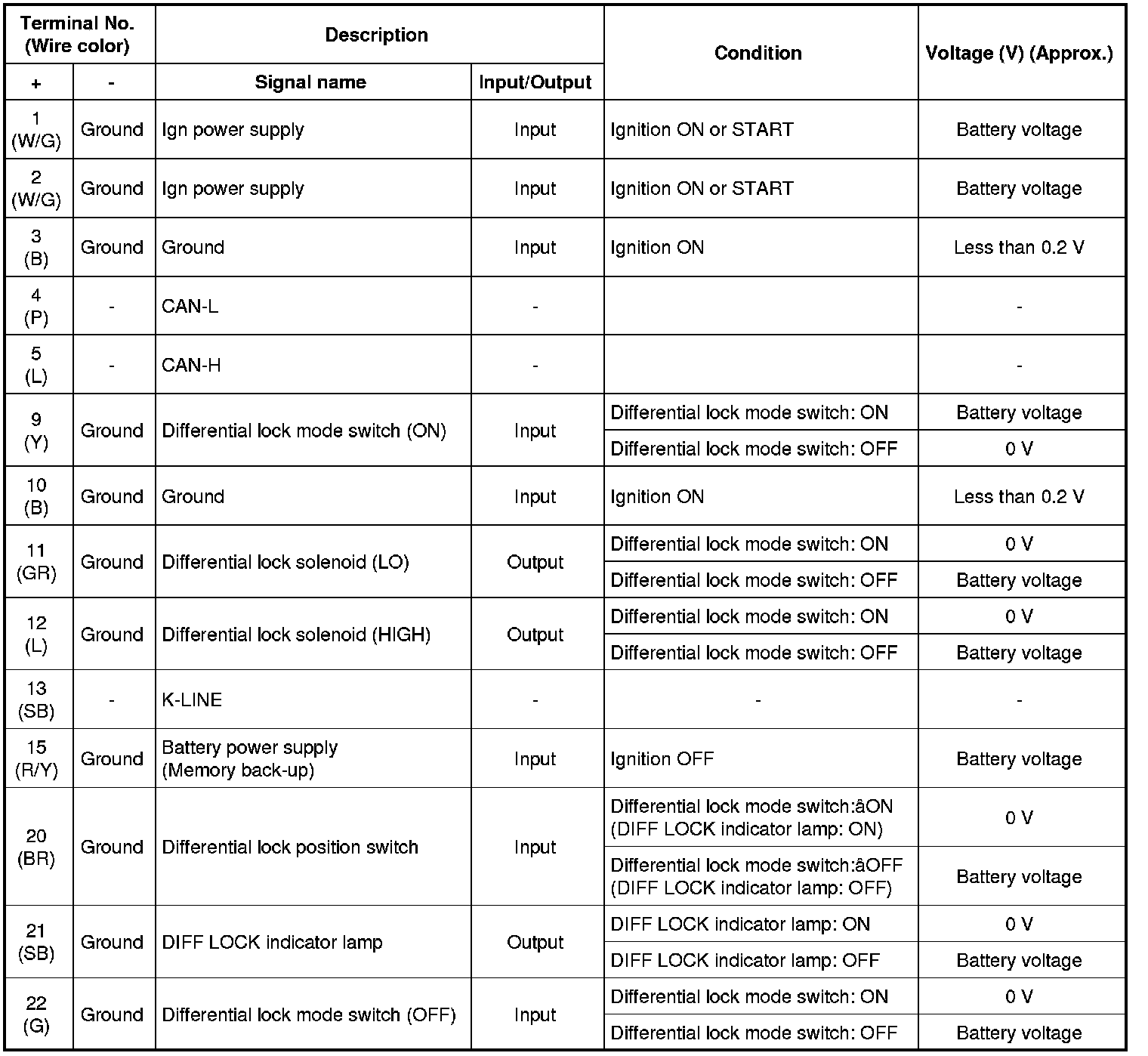

Differential Lock Control Unit: Reference Value

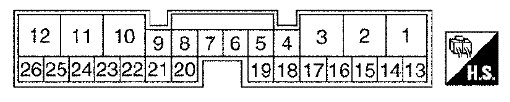

DIFFERENTIAL LOCK CONTROL UNIT TERMINAL CONNECTOR LAYOUT





Data are reference value and are measured between each terminal and ground.





CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
