Clutch: Testing and Inspection

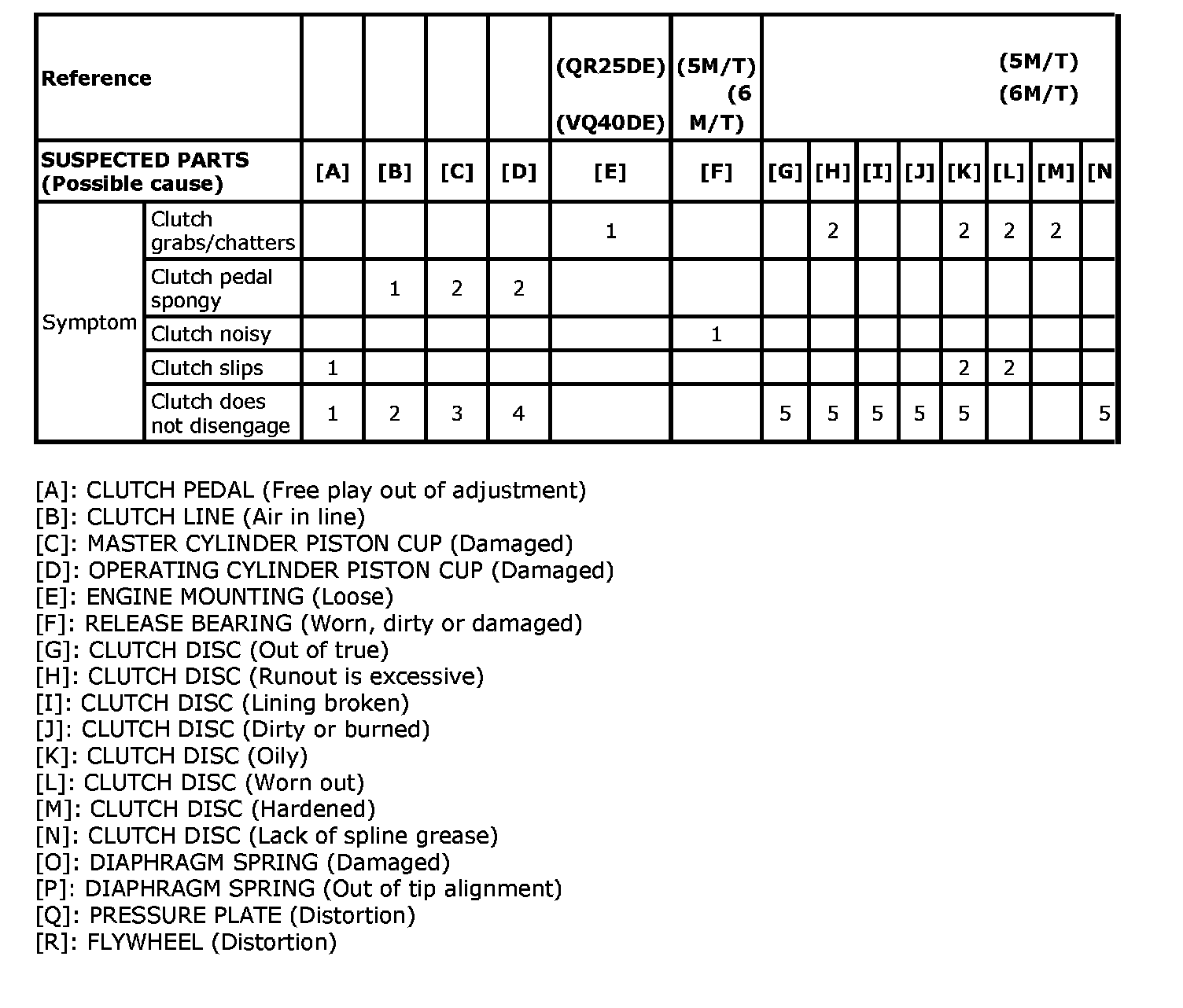

NVH Troubleshooting Chart
Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspection. If necessary, repair or replace these parts.

CLUTCH

NVH Troubleshooting Chart:
