Service Notice or Precautions

Service Notice or Precautions
^ Always use recommended fluid.
^ Never reuse drained fluid.
^ Be careful not to splash fluid on painted areas.

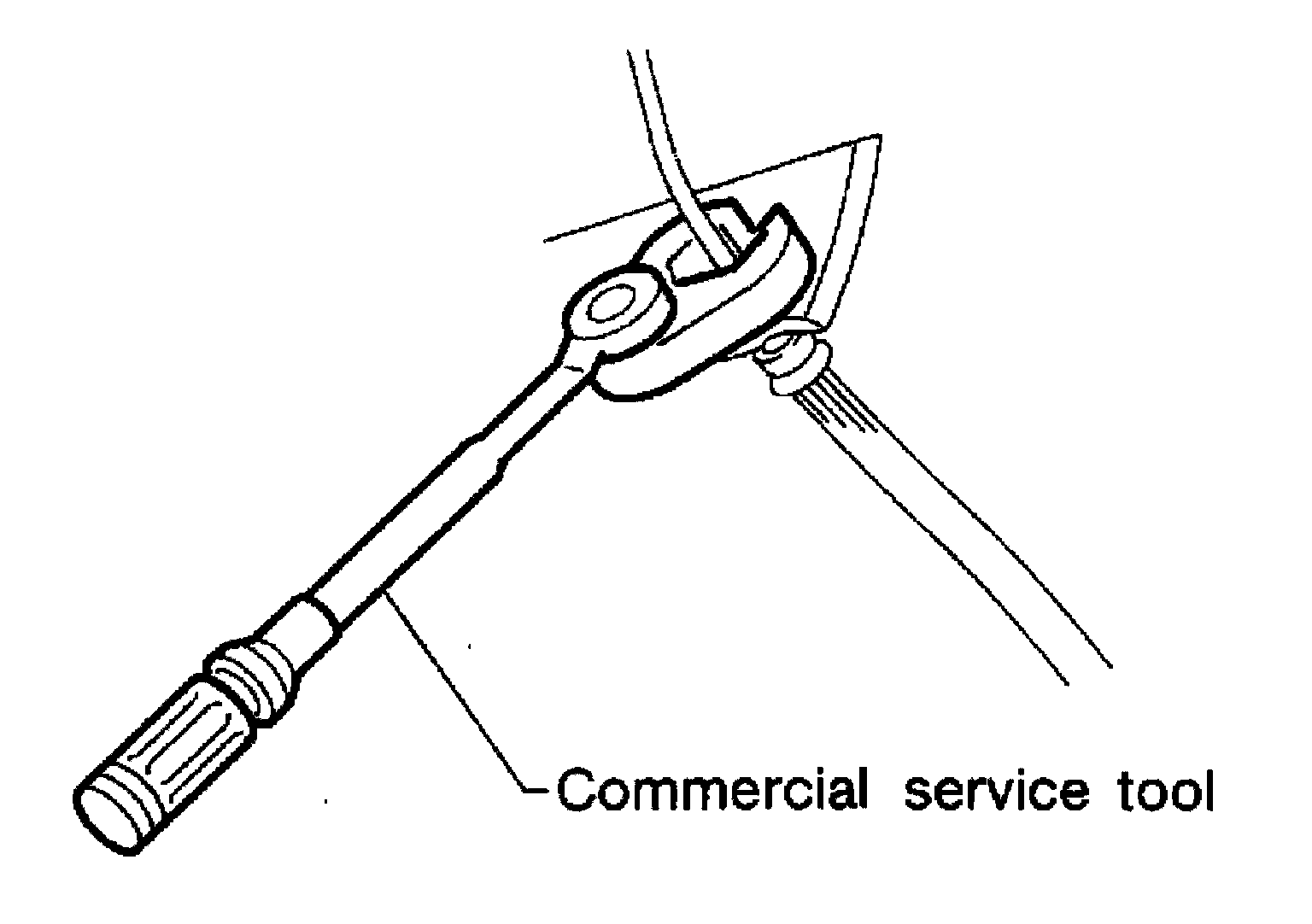

^ When removing and installing clutch piping, use tool.





^ Use new fluid to clean or wash all parts of master cylinder.
^ Never use mineral oils such as gasoline or kerosene. It will ruin the rubber parts of the hydraulic system.

WARNING:
After cleaning clutch disc, wipe it with a dust collector. Do not use compressed air.
