Vehicle Does Not Creep Forward In "D" Position

Vehicle Does Not Creep Forward in "D" Position

SYMPTOM:
Vehicle does not creep forward when selecting "D" position.

DIAGNOSTIC PROCEDURE

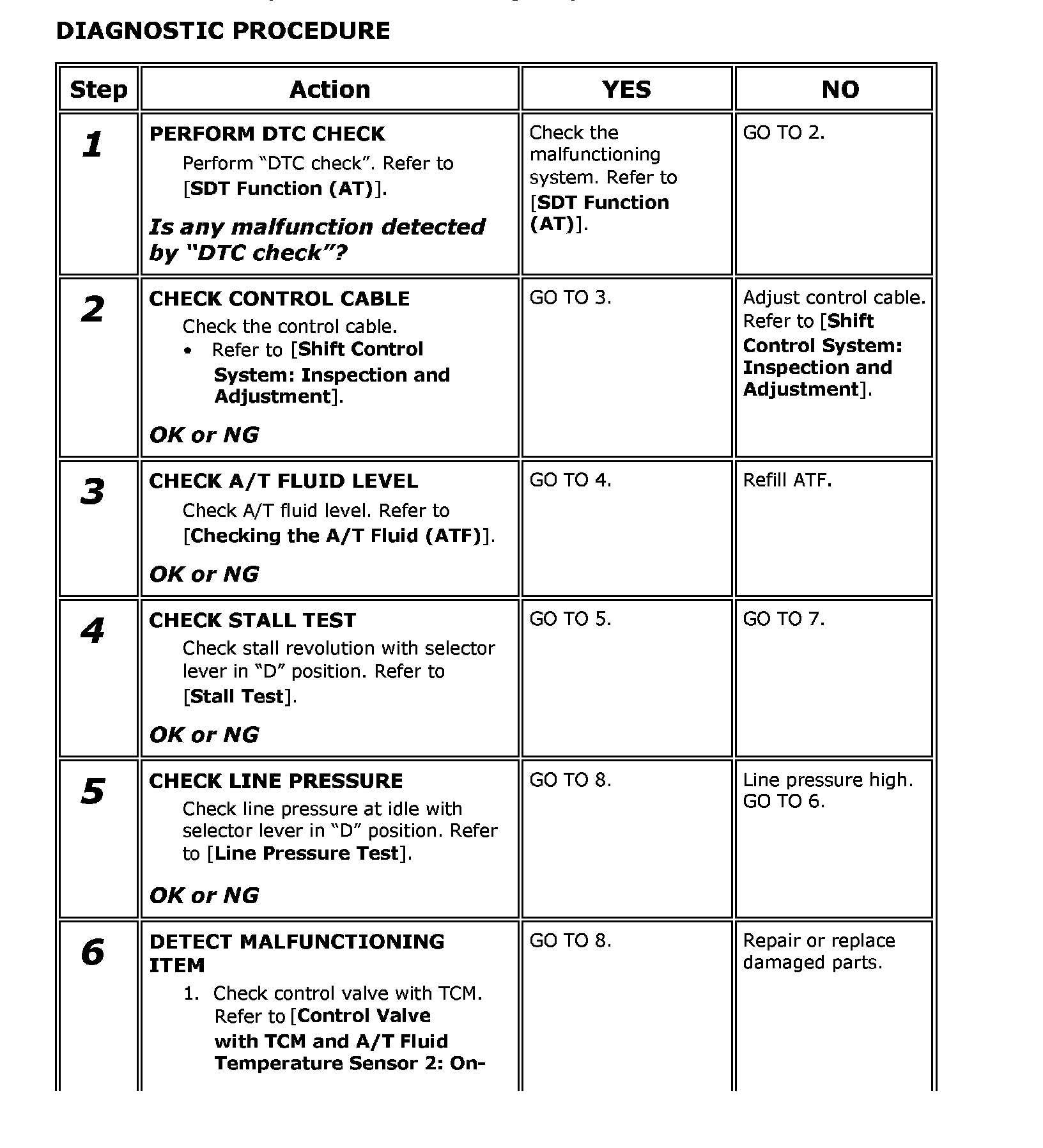

Steps 1-6:

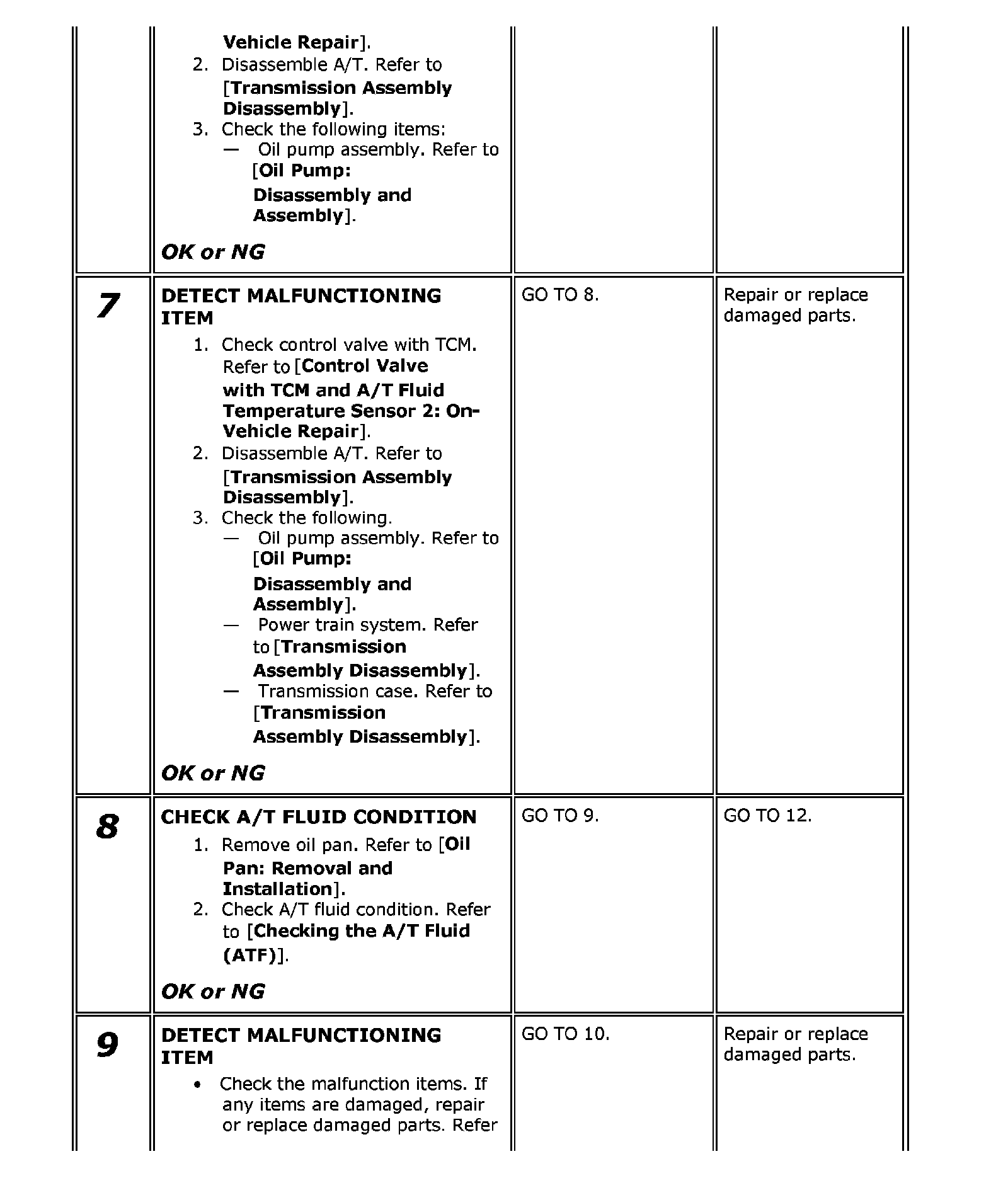

Steps 6-9:

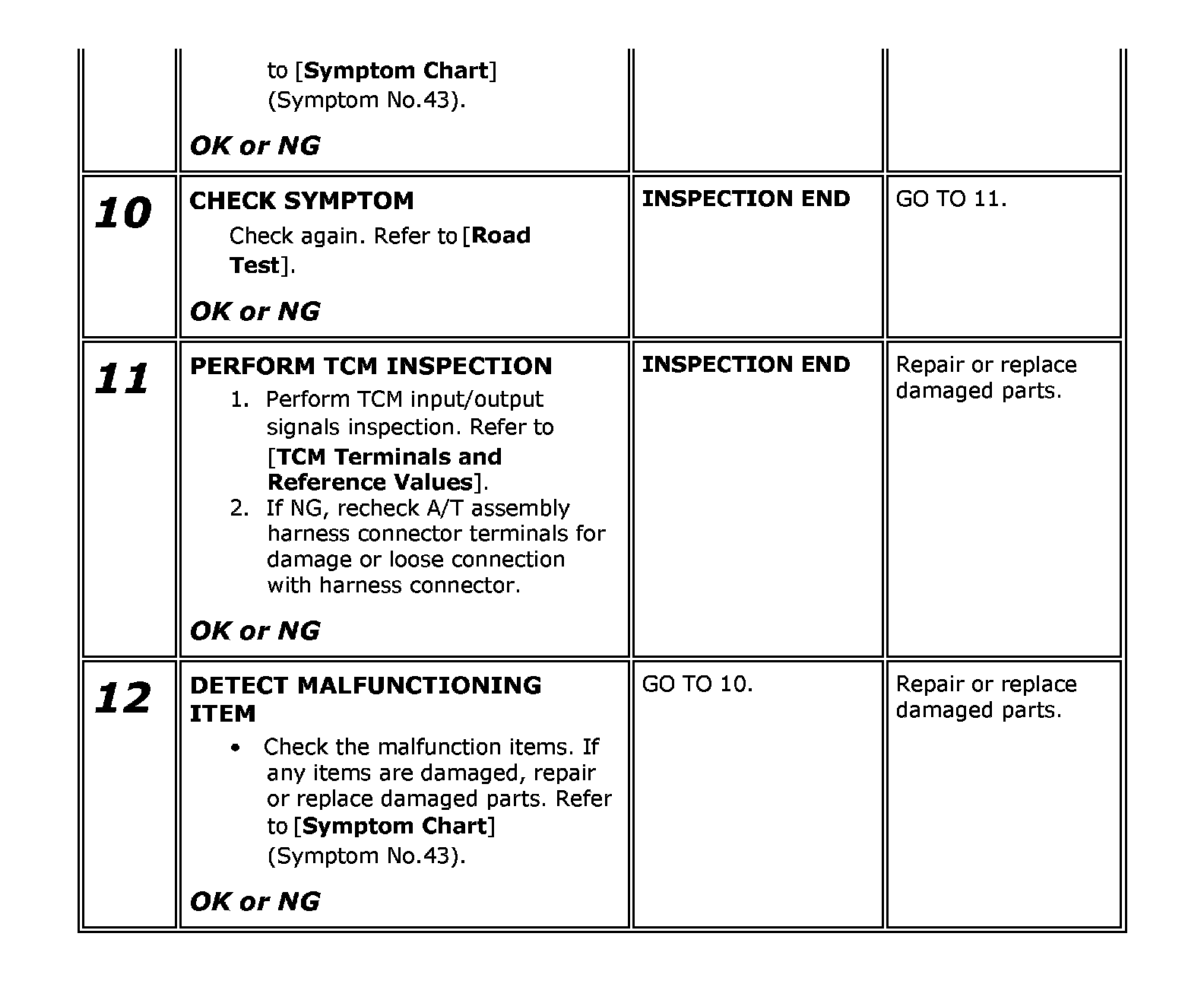

Steps 9-12:
