Vehicle Cannot Be Started From D1

Vehicle Cannot Be Started from D1

SYMPTOM:
Vehicle cannot be started from D1 on cruise test - Part 1 and cruise test - Part 2.

DIAGNOSTIC PROCEDURE

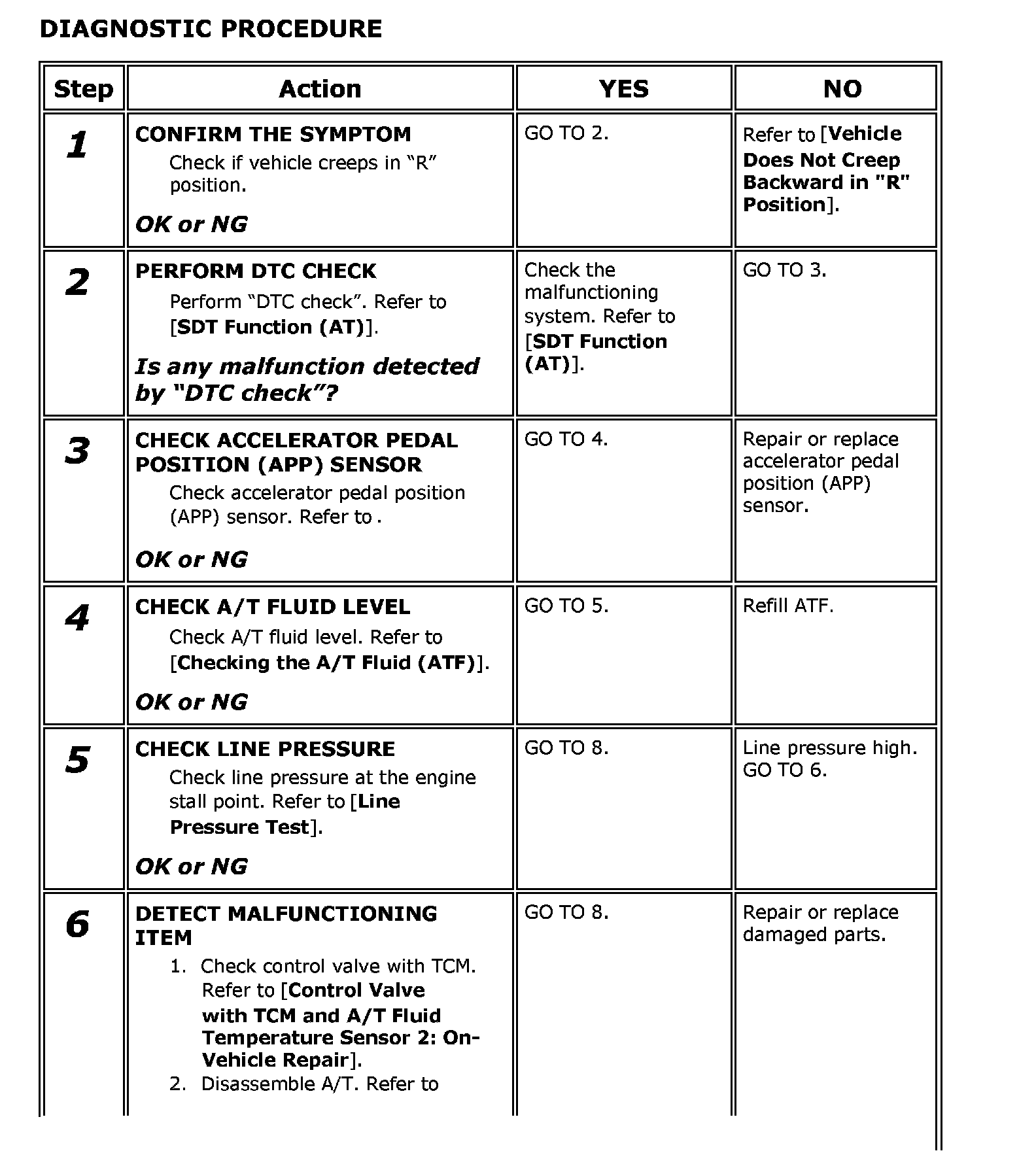

Steps 1-6:

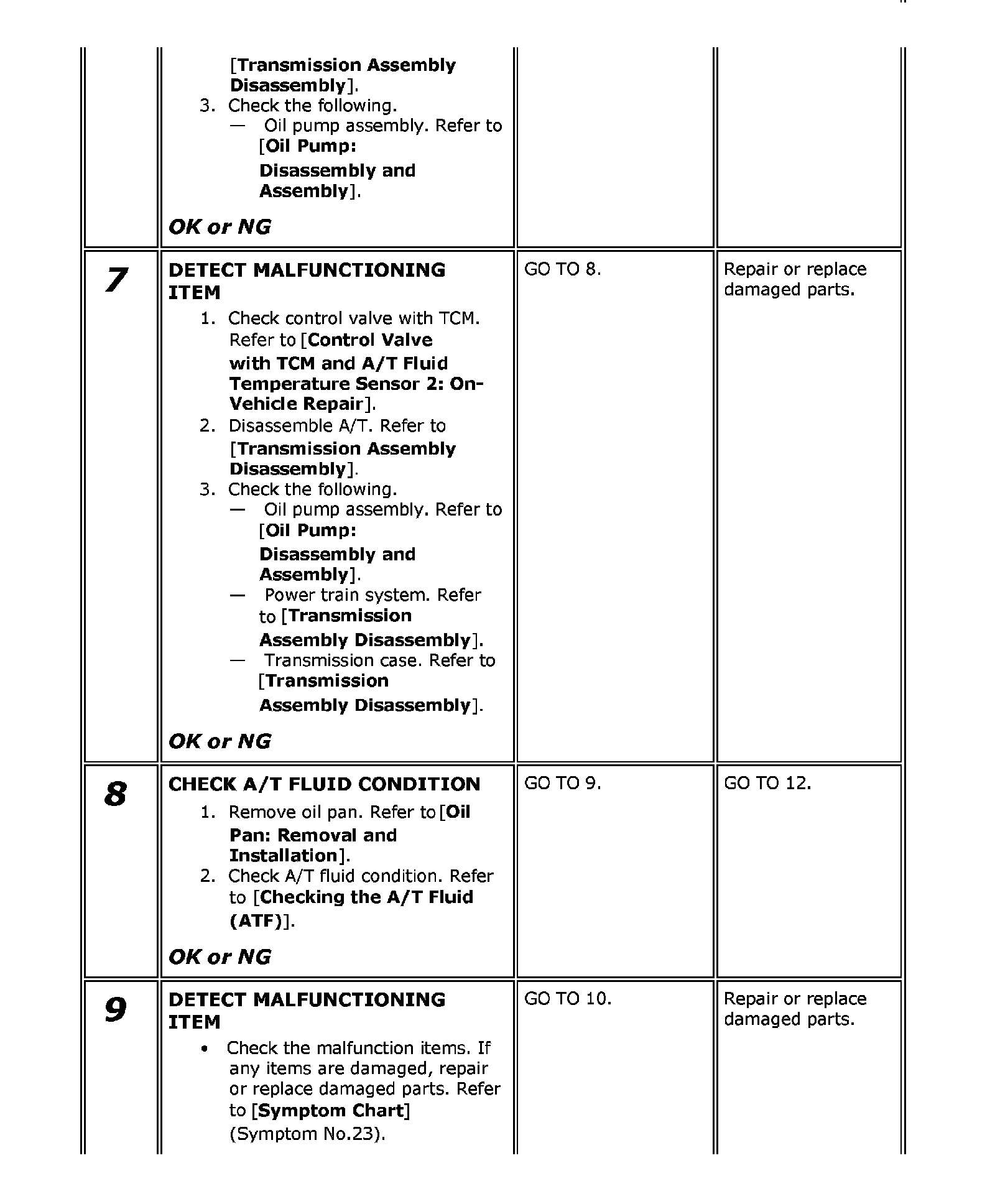

Steps 6-9:

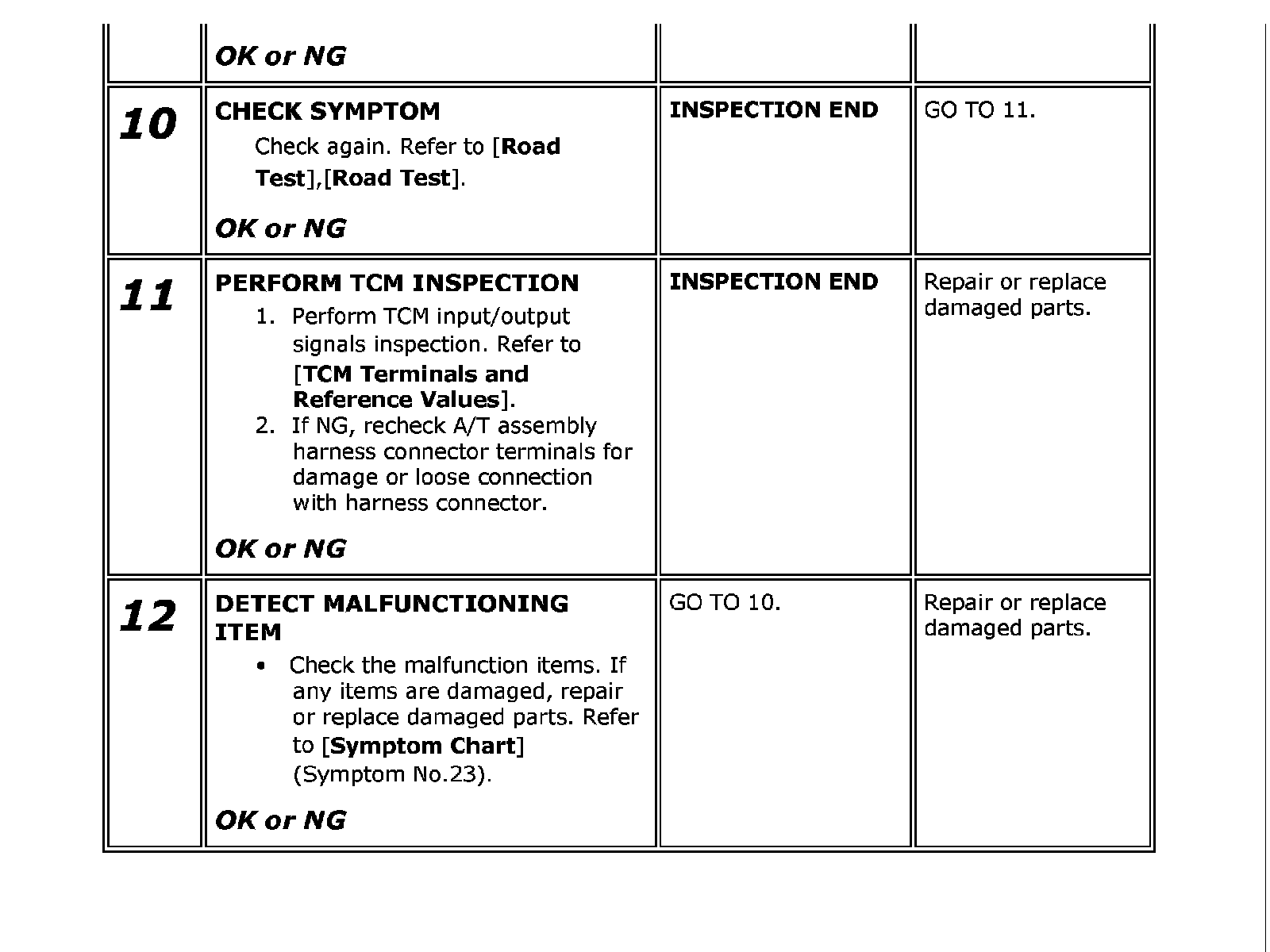

Steps 9-12:
