In "P" Position, Vehicle Moves When Pushed

In "P" Position, Vehicle Moves When Pushed

SYMPTOM:
Even though the selector lever is set in the "P" position, the parking mechanism is not actuated, allowing the vehicle to be moved when it is pushed.

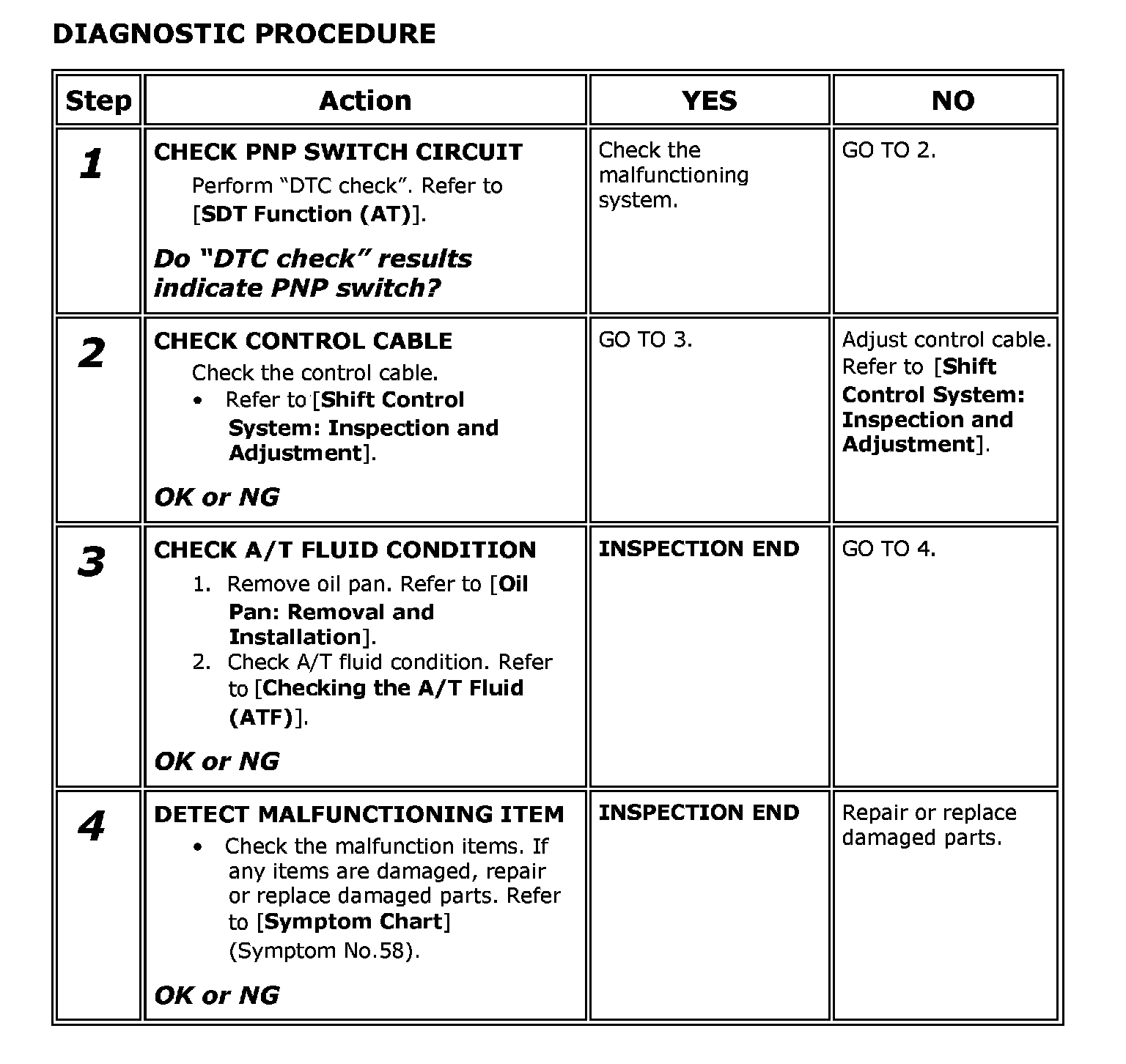

DIAGNOSTIC PROCEDURE

Steps 1-4:
