Engine Cannot Be Started In "P" or "N" Position

Engine Cannot Be Started in "P" or "N" Position

SYMPTOM:
^ Engine cannot be started with selector lever in "P" or "N" position.
^ Engine can be started with selector lever in "D", "3", "2", "1" or position.

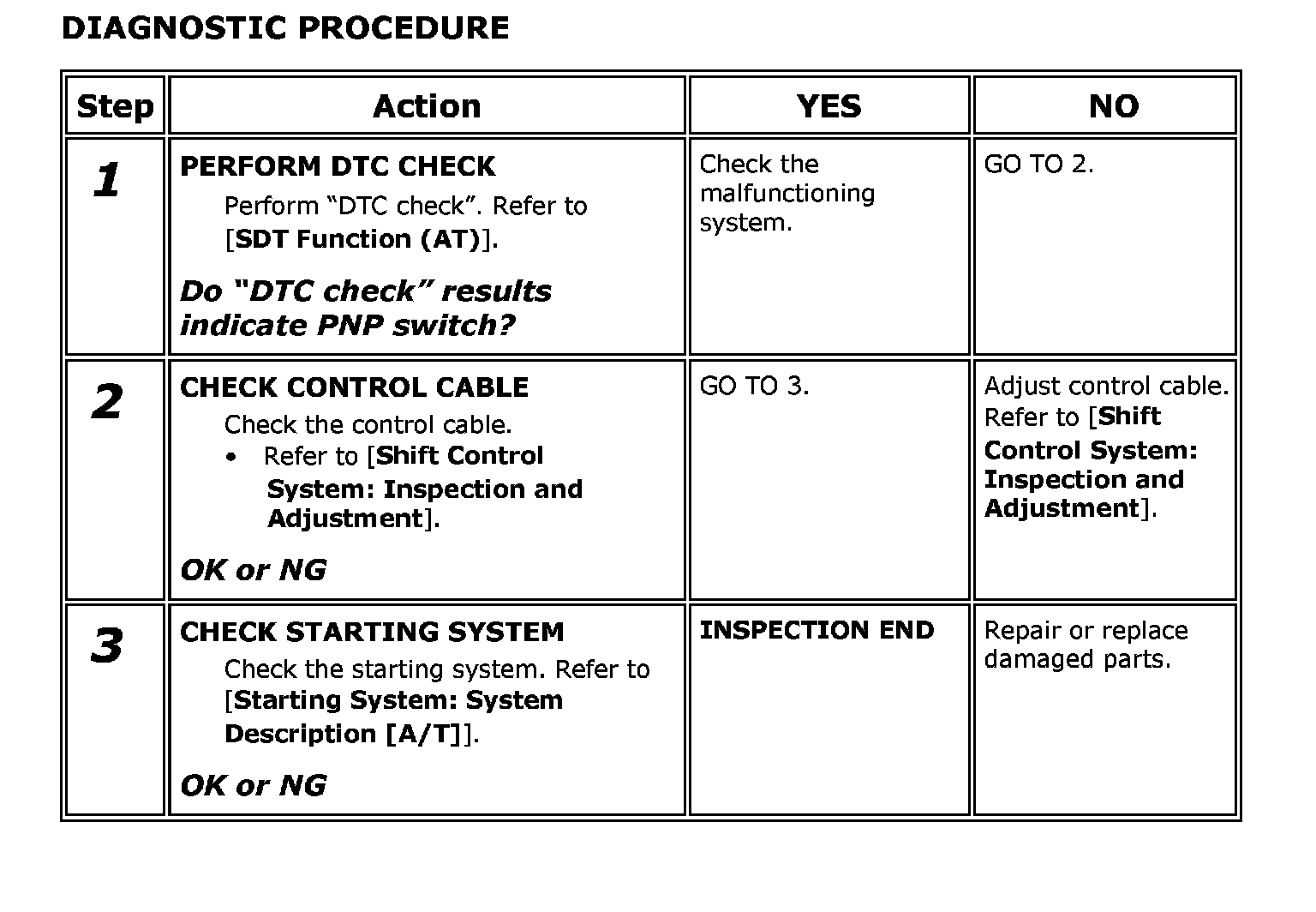

DIAGNOSTIC PROCEDURE

Steps 1-3:
