A/T Does Not Shift: D4 -> D5

A/T Does Not Shift: D4 -> D5

SYMPTOM:
^ The vehicle does not shift-up from the D4 to D5 gear at the specified speed.
^ The vehicle does not shift-up from the D4 to D5 gear unless A/T is warmed up.

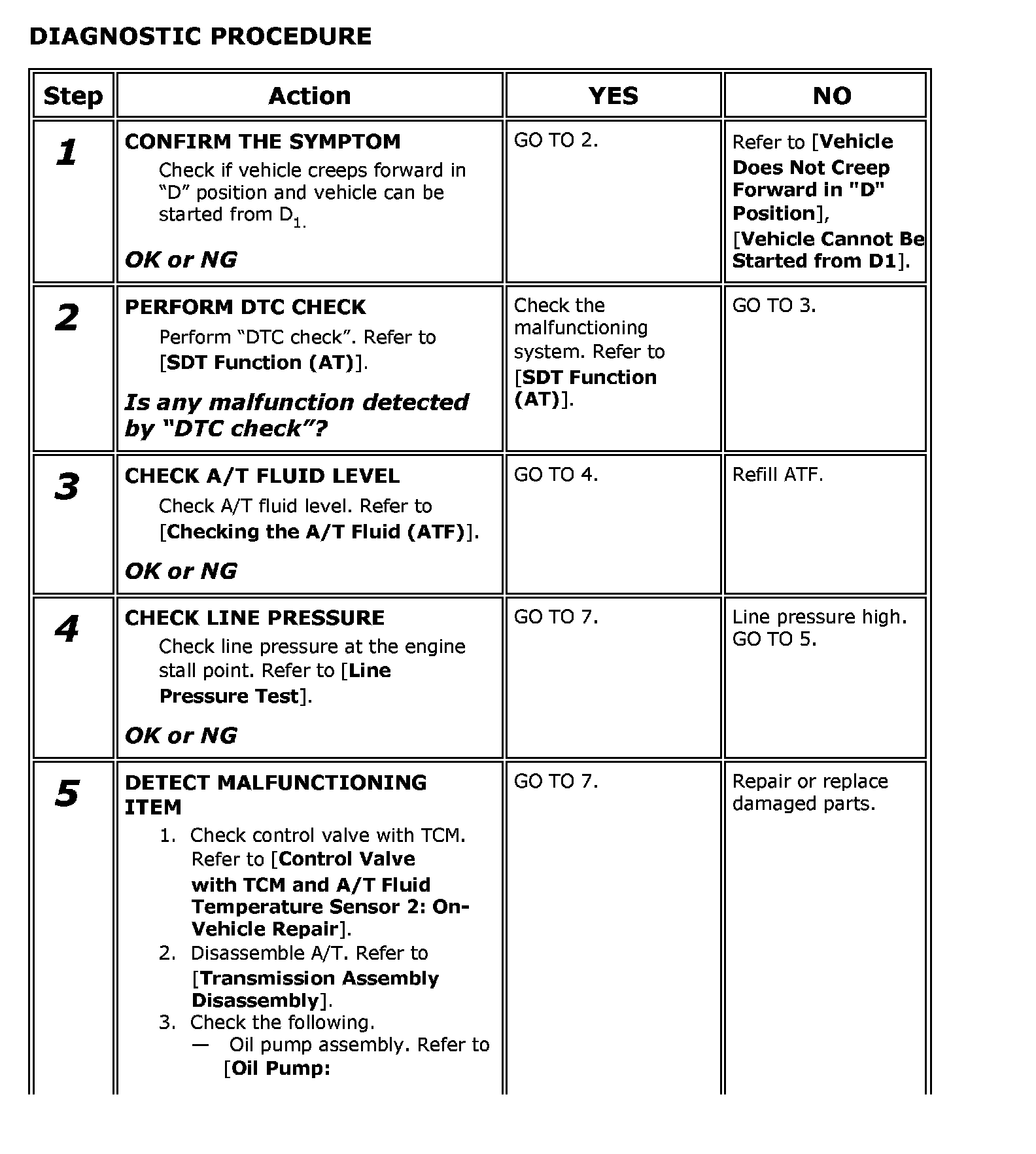

DIAGNOSTIC PROCEDURE

Steps 1-5:

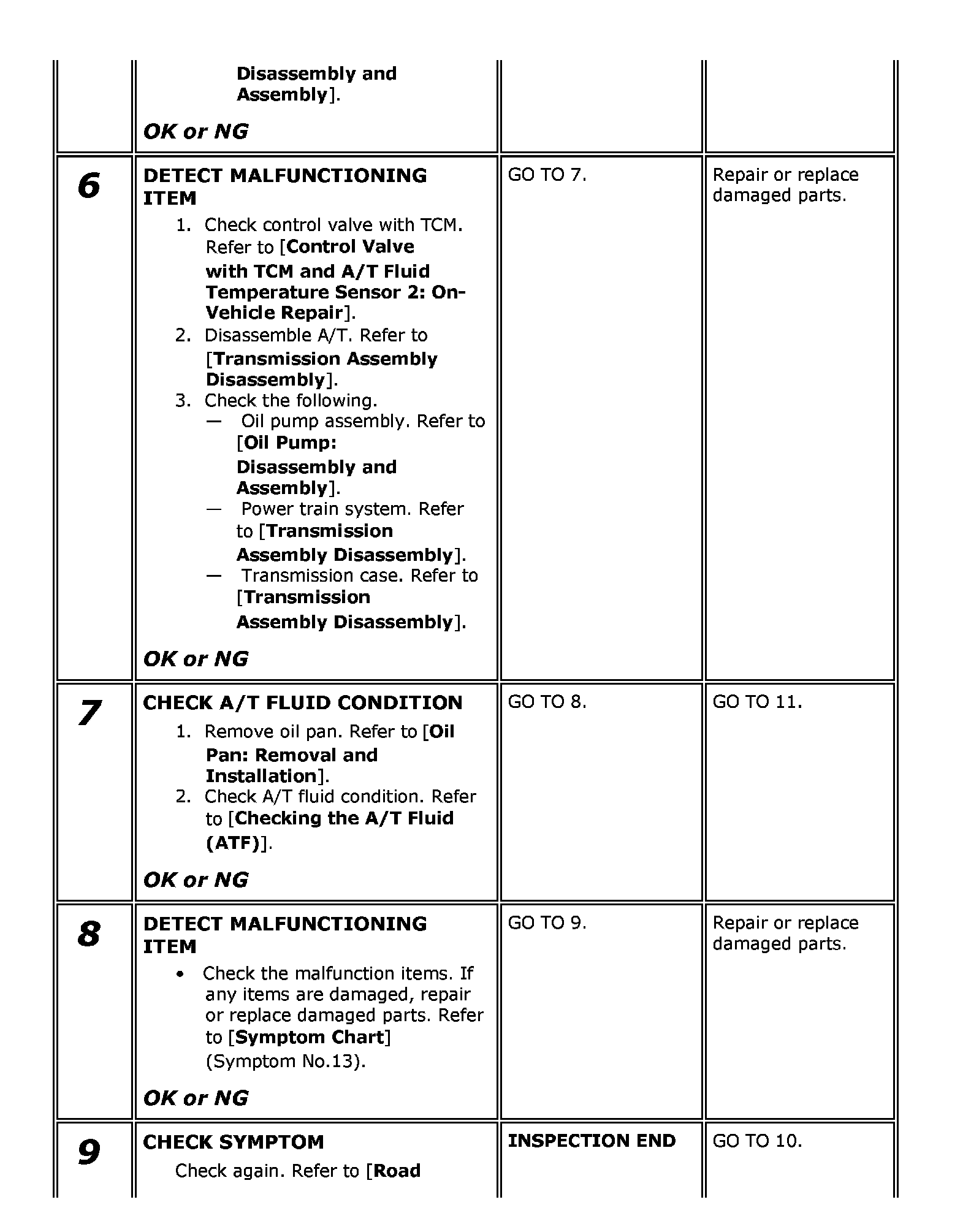

Steps 5-9:




Steps 9-11:
