A/T Does Not Shift: D3 -> D4

A/T Does Not Shift: D3 -> D4

SYMPTOM:
^ The vehicle does not shift-up from the D3 to D4 gear at the specified speed.

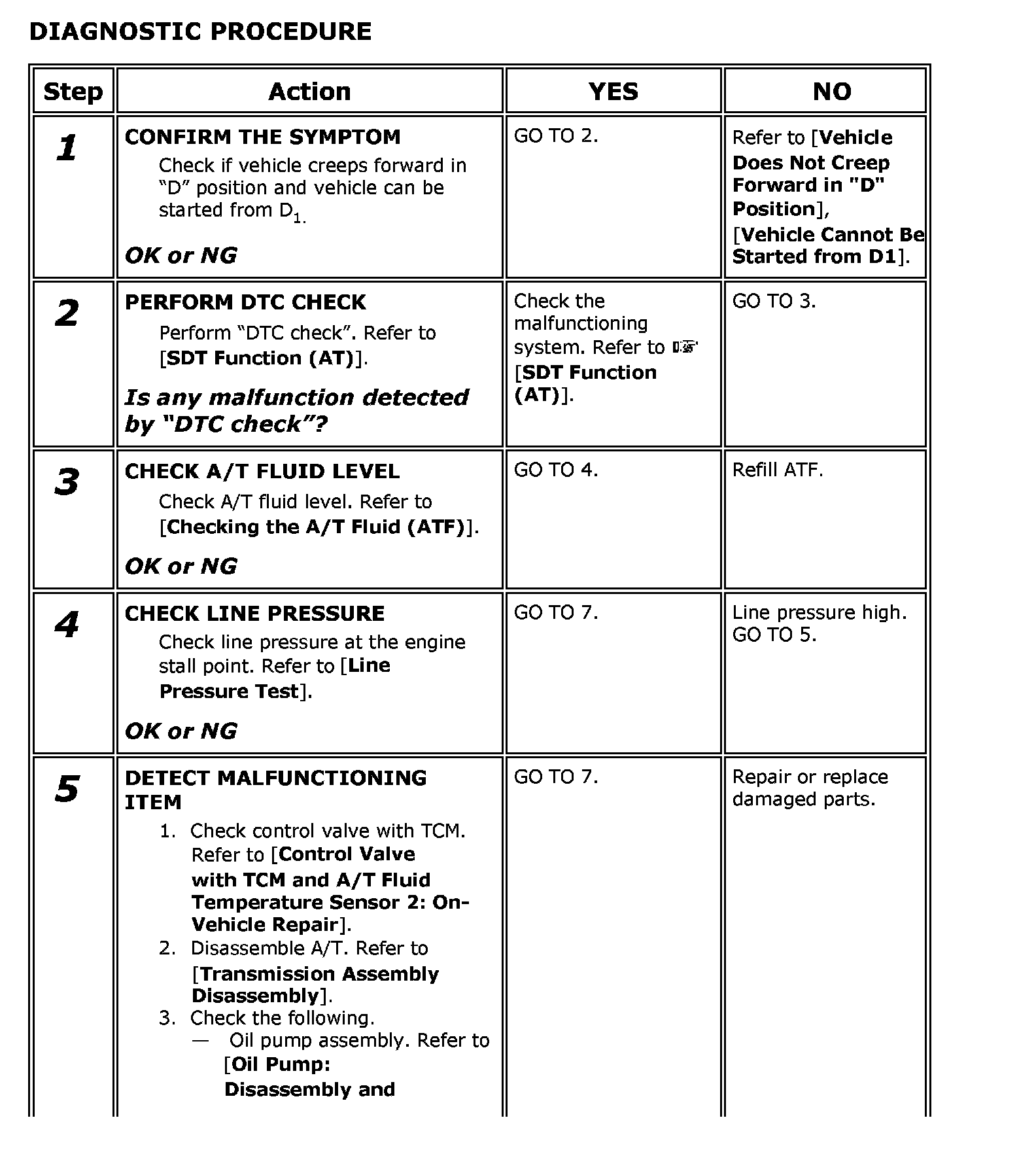

DIAGNOSTIC PROCEDURE

Steps 1-5:

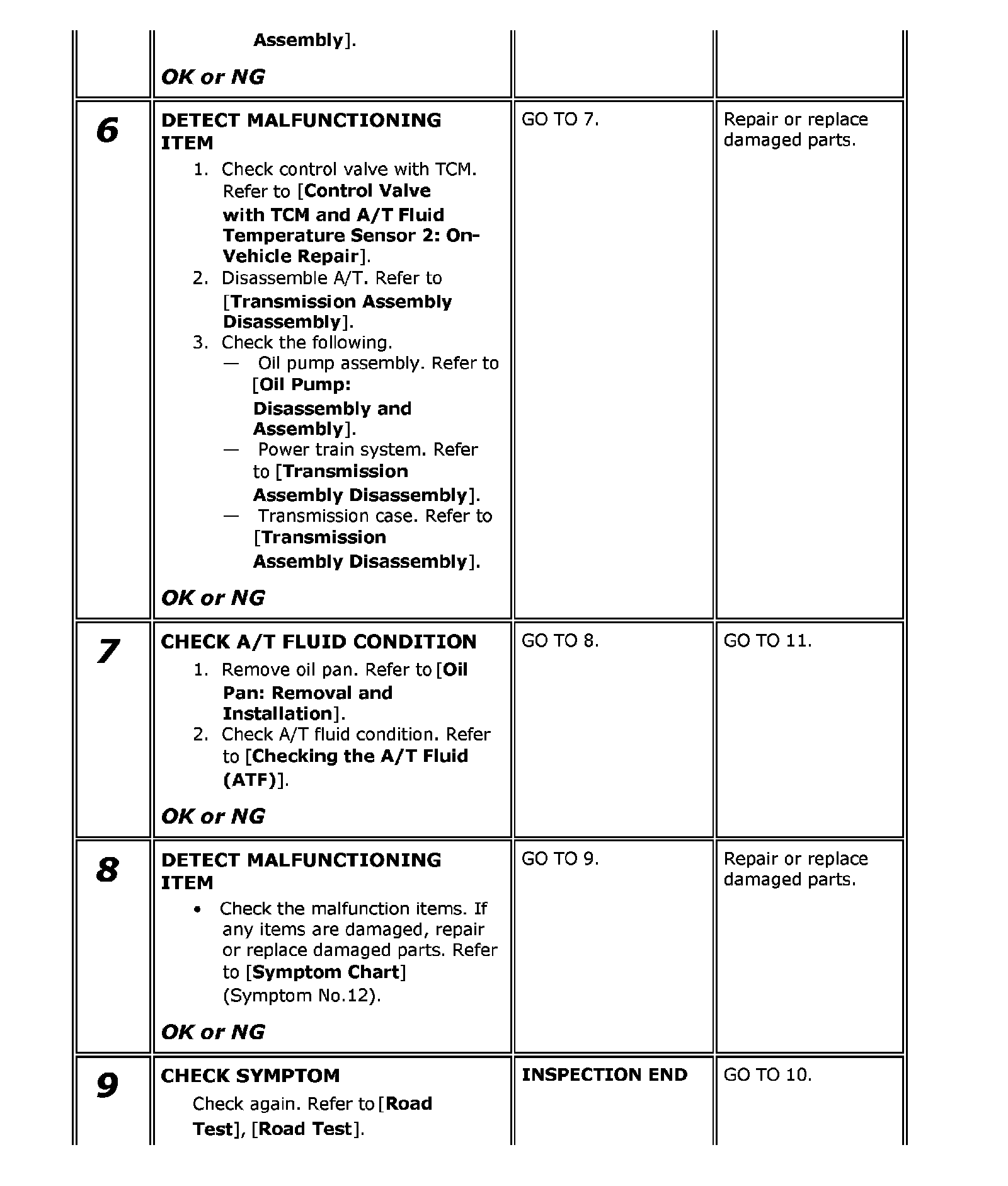

Steps 5-9:




Steps 9-11:
