A/T Does Not Shift: D2 -> D3

A/T Does Not Shift: D2 -> D3

SYMPTOM:
The vehicle does not shift-up from D[2] to D3 gear at the specified speed.

DIAGNOSTIC PROCEDURE

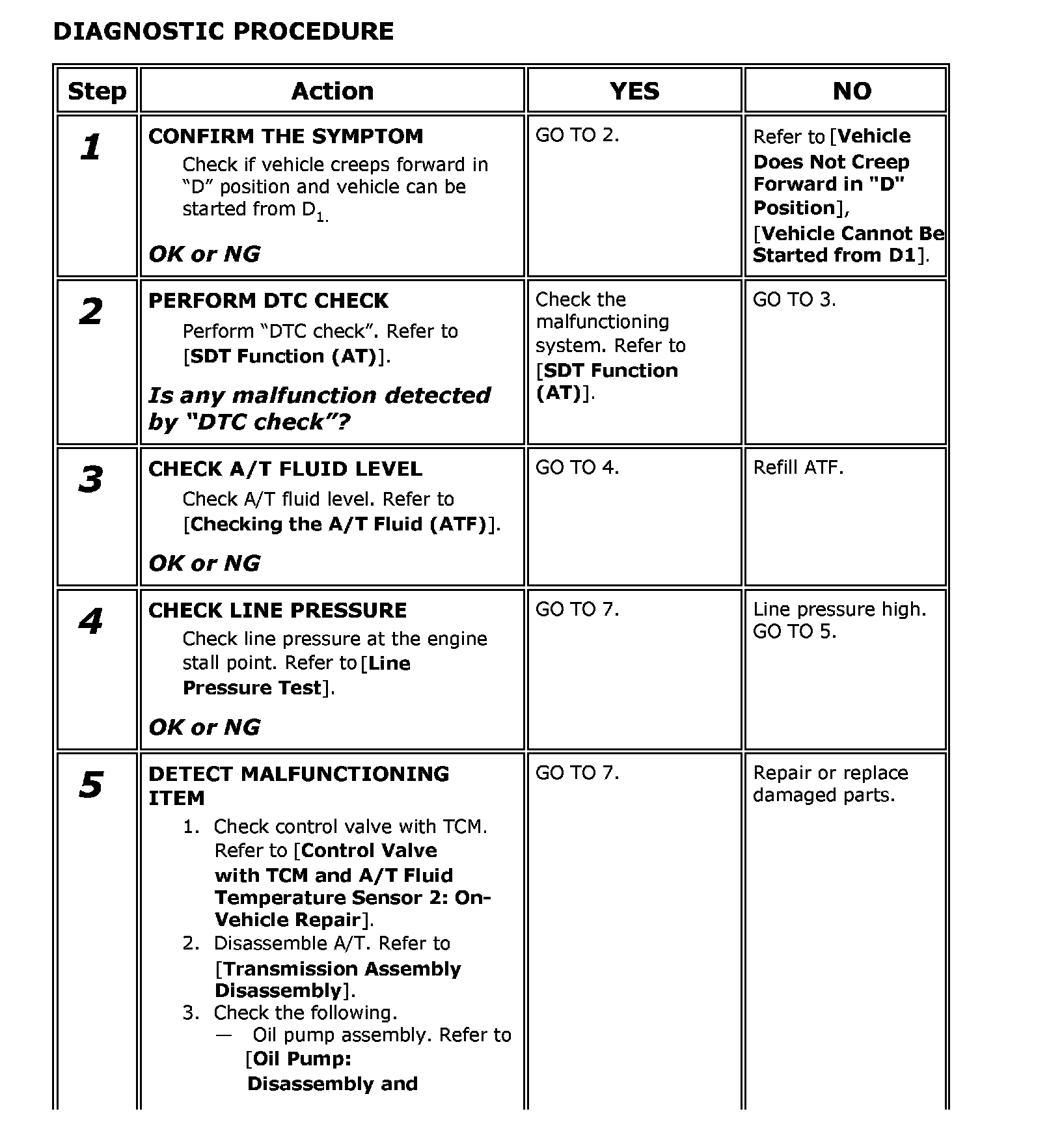

Steps 1-5:

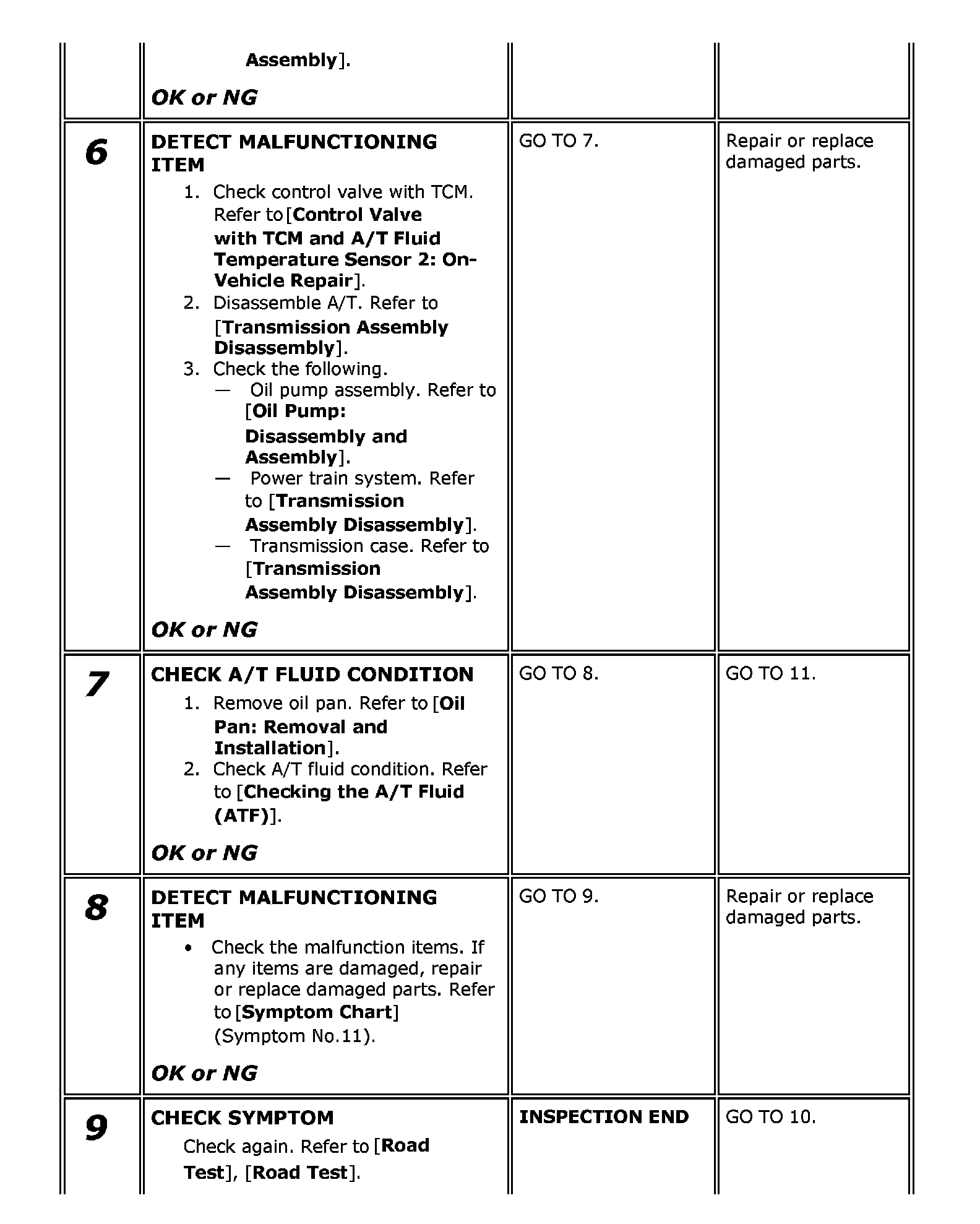

Steps 5-9:




Steps 9-11:
