A/T Does Not Shift: D1 -> D2

A/T Does Not Shift: D1 -> D2

SYMPTOM:
The vehicle does not shift-up from the D1 to D[2] gear at the specified speed.

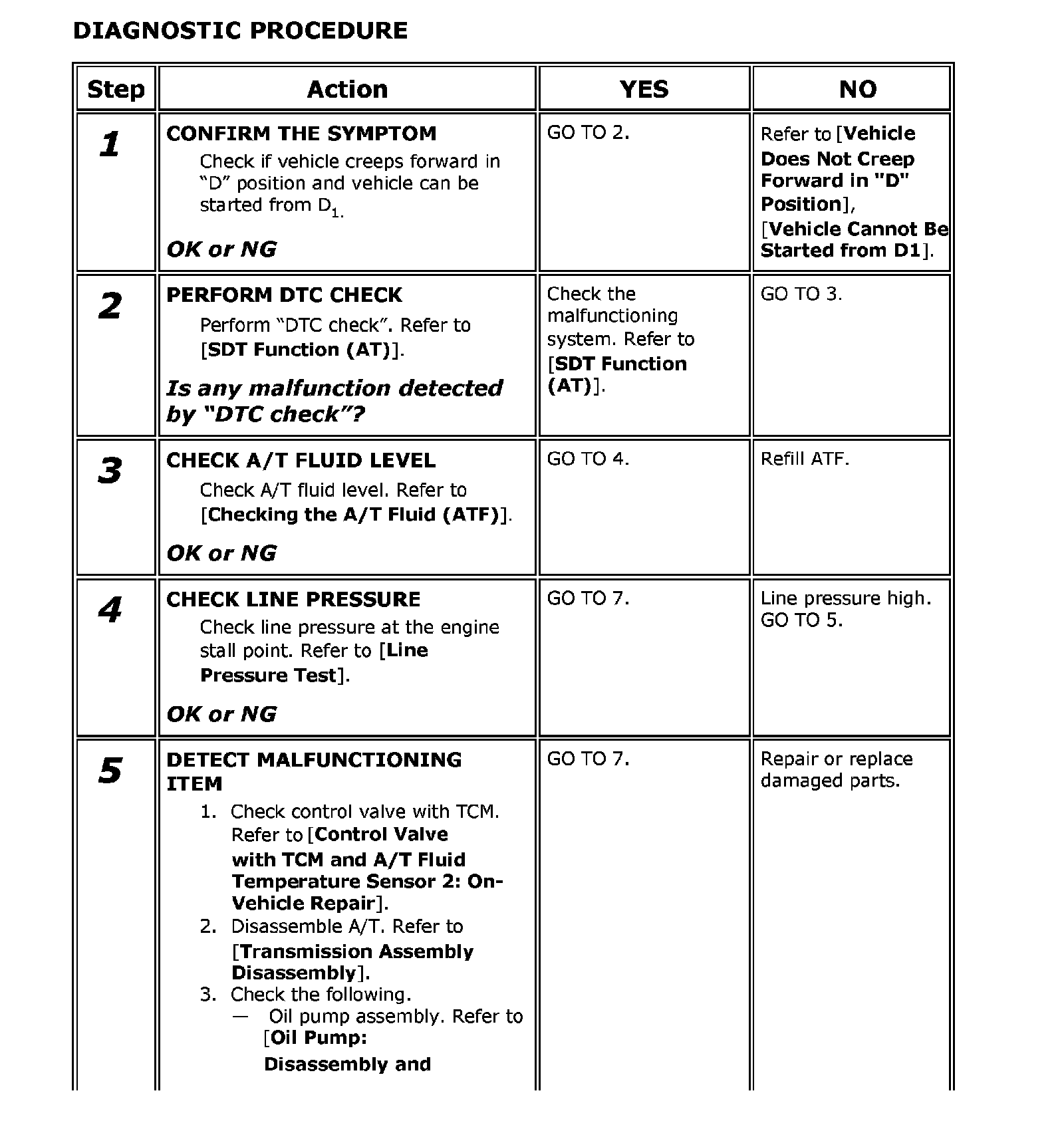

DIAGNOSTIC PROCEDURE

Steps 1-5:

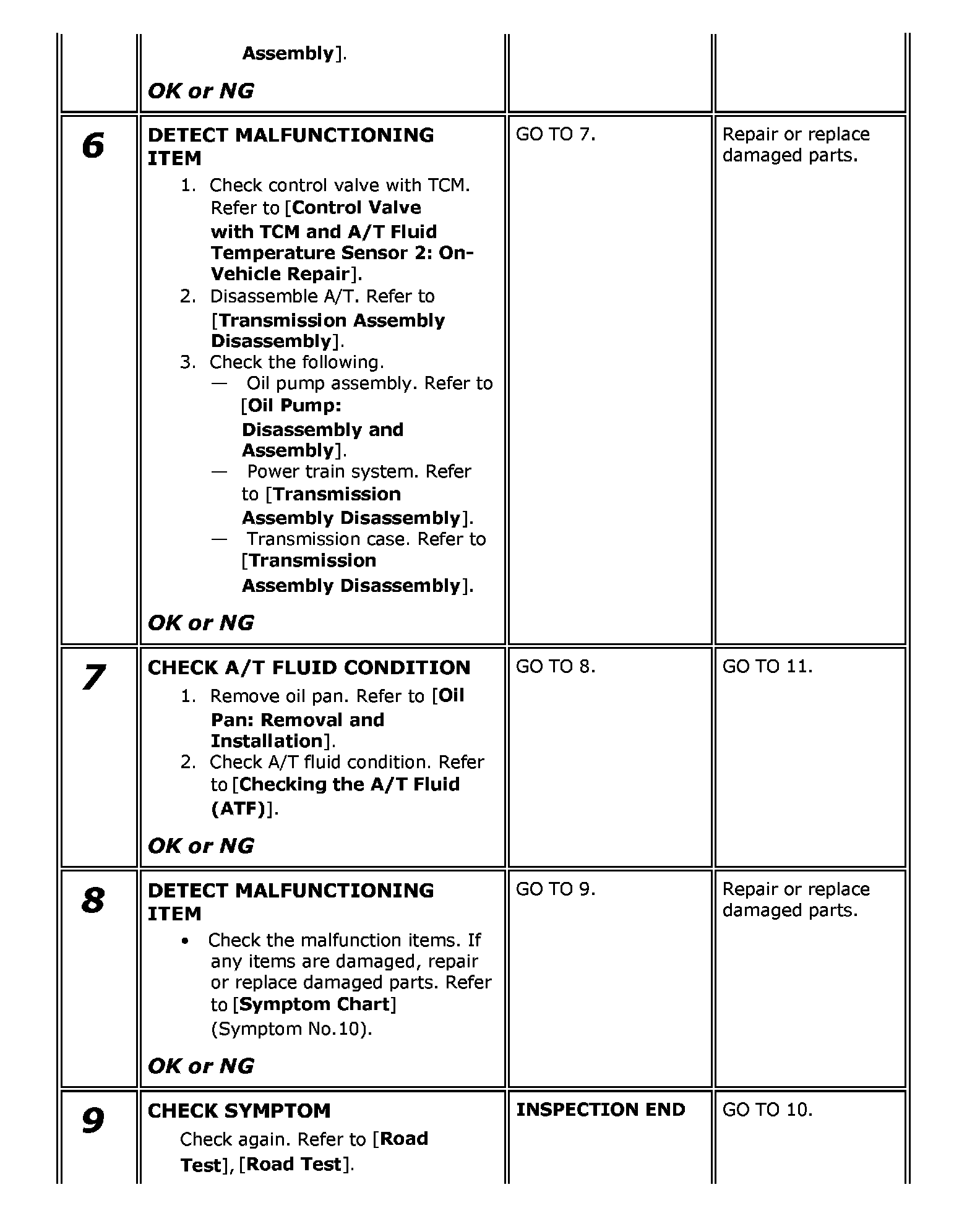

Steps 5-9:




Steps 9-11:
