A/T Does Not Perform Lock-Up

A/T Does Not Perform Lock-up

SYMPTOM:
A/T does not perform lock-up at the specified speed.

DIAGNOSTIC PROCEDURE

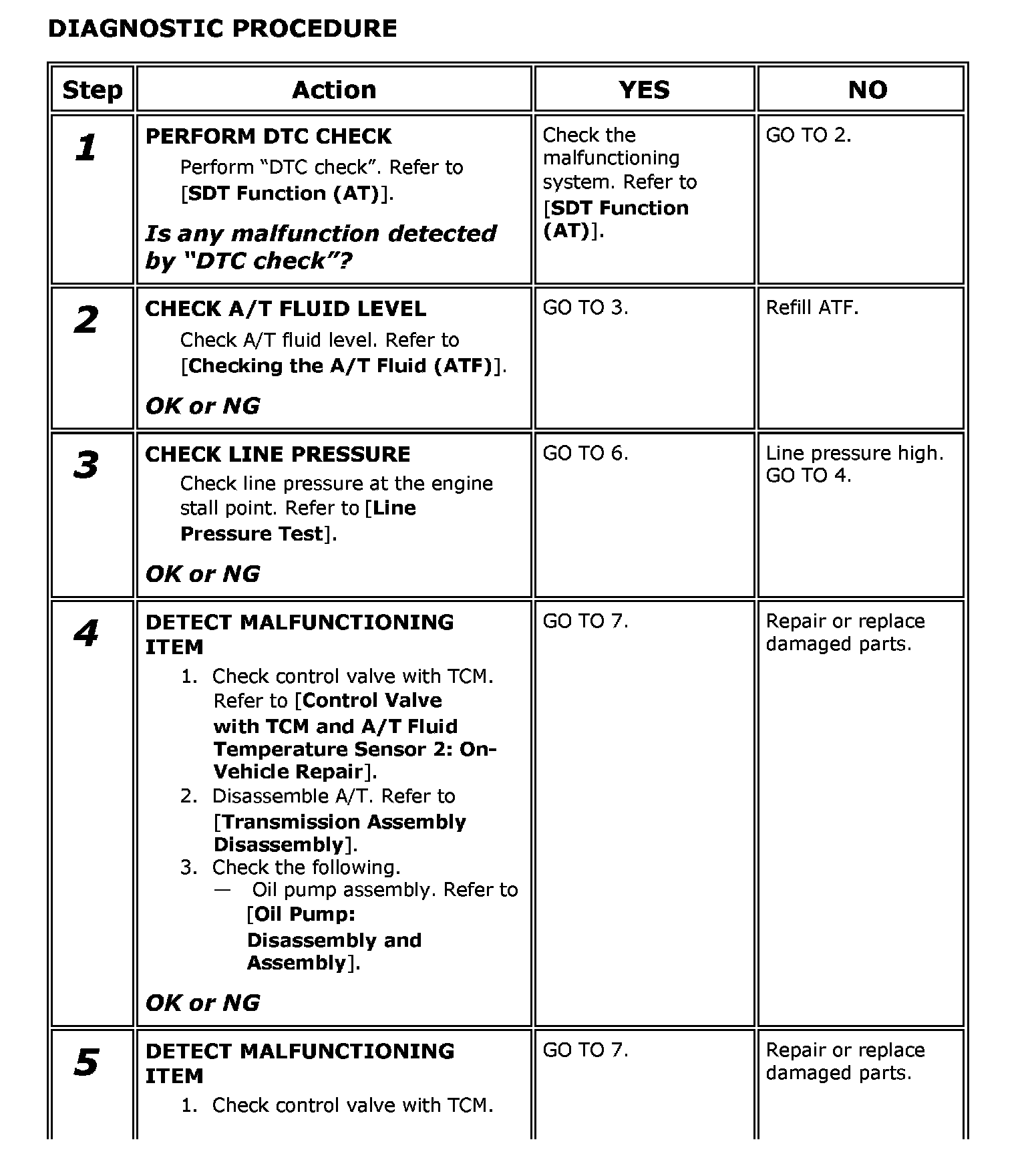

Steps 1-5:

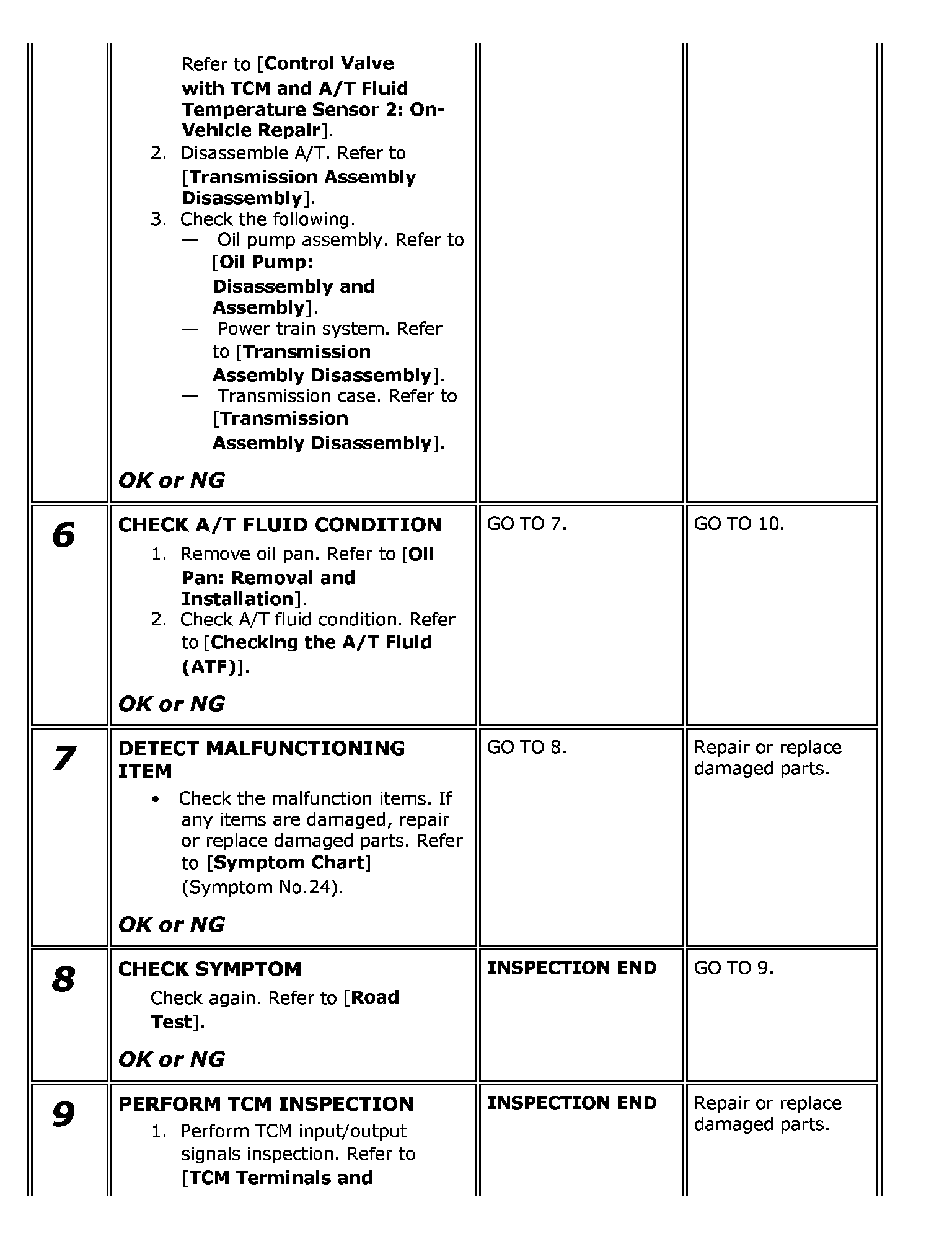

Steps 5-9:




Steps 9-10:
