Road Test

Road Test

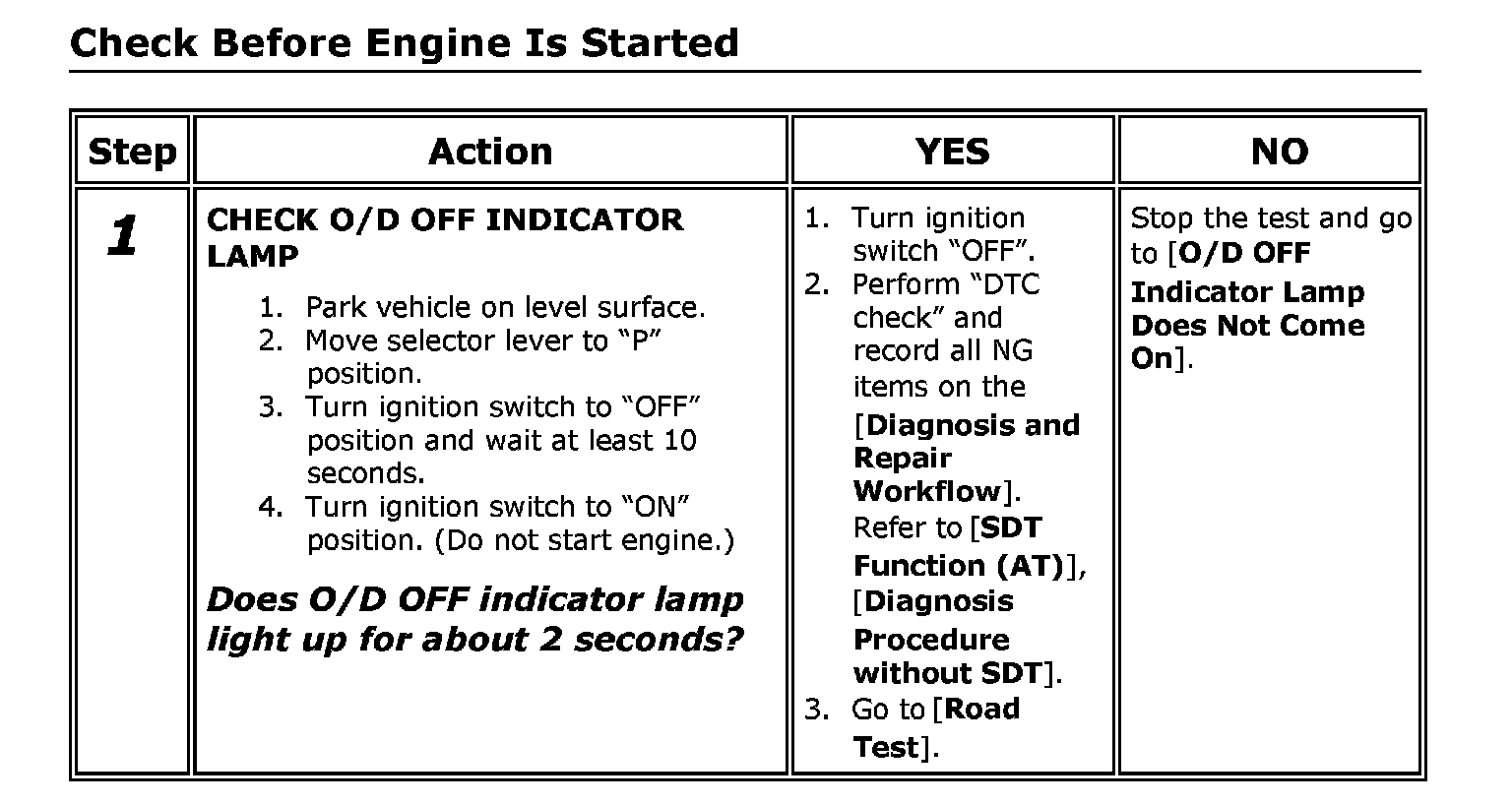

Check Before Engine Is Started

Step 1:

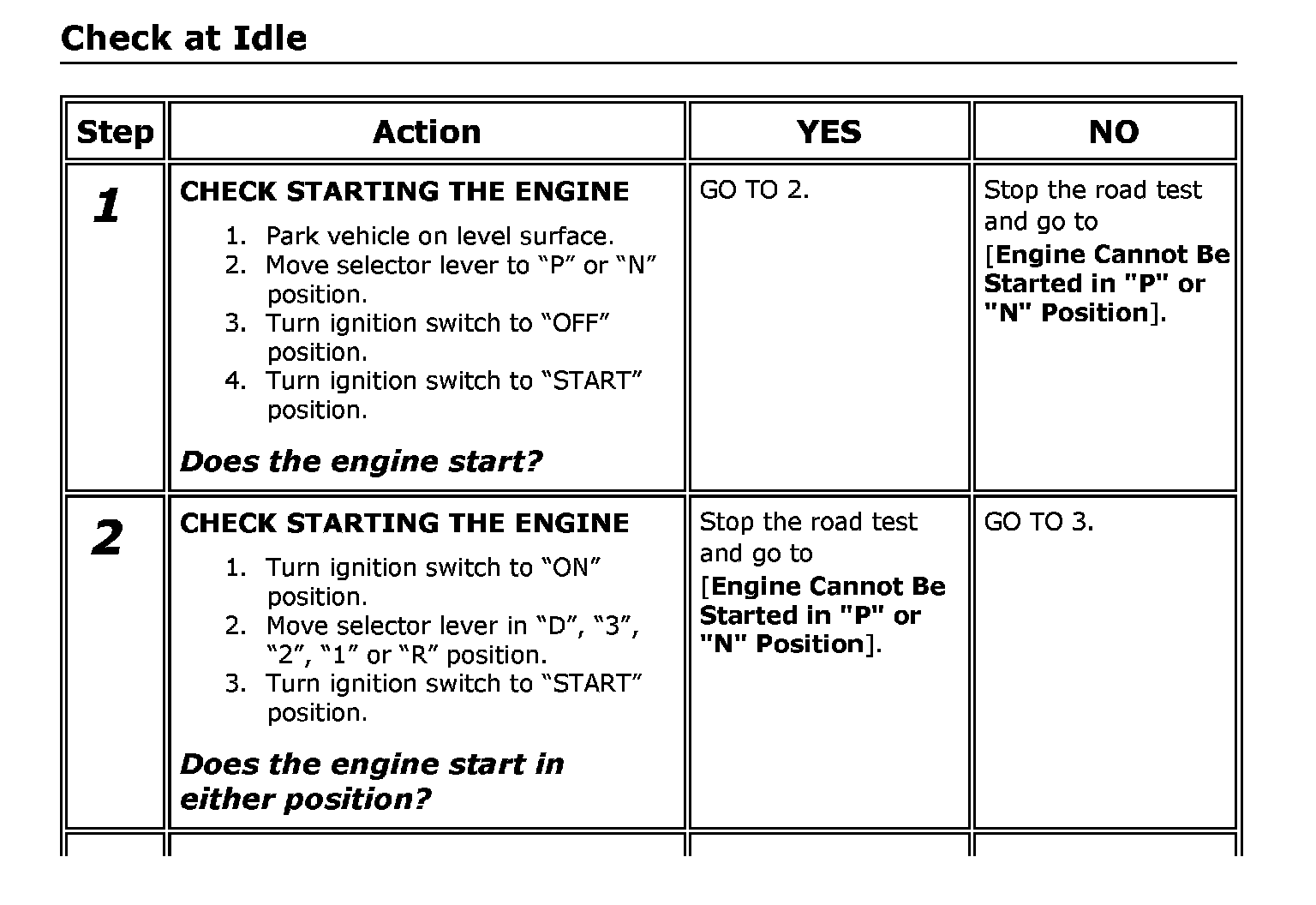

Check at Idle

Steps 1-2:

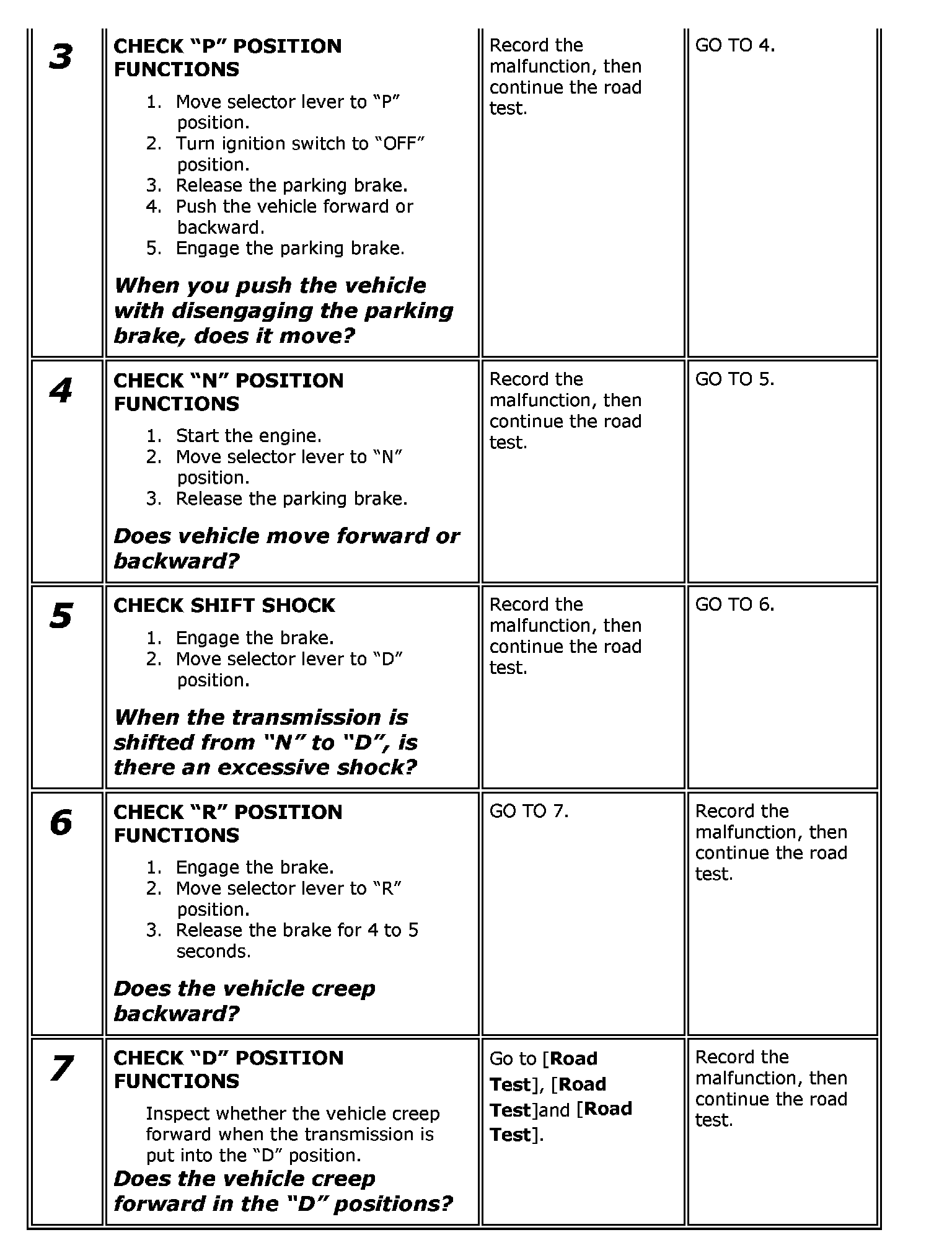

Steps 3-7:

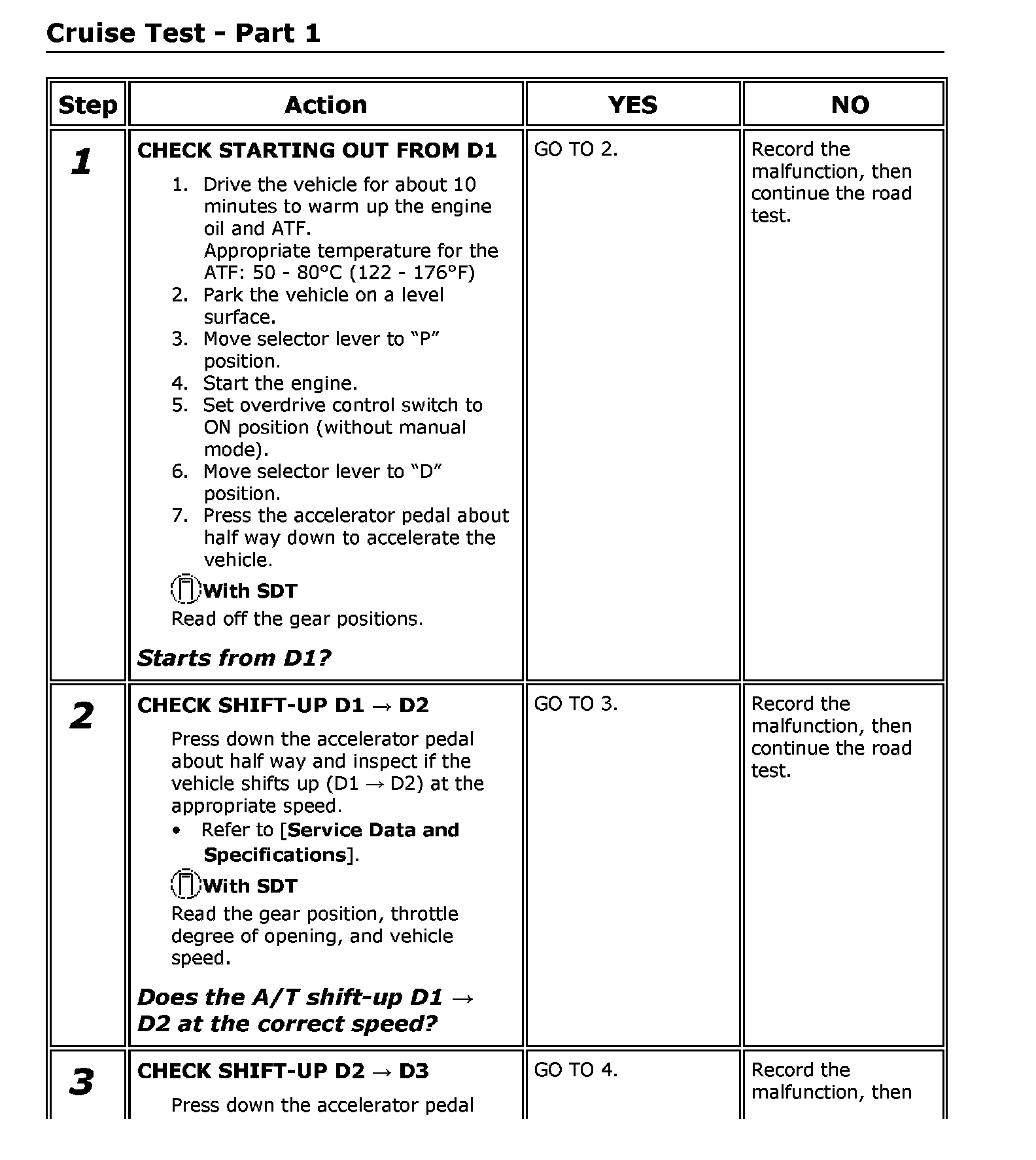

Cruise Test - Part 1

Steps 1-3:

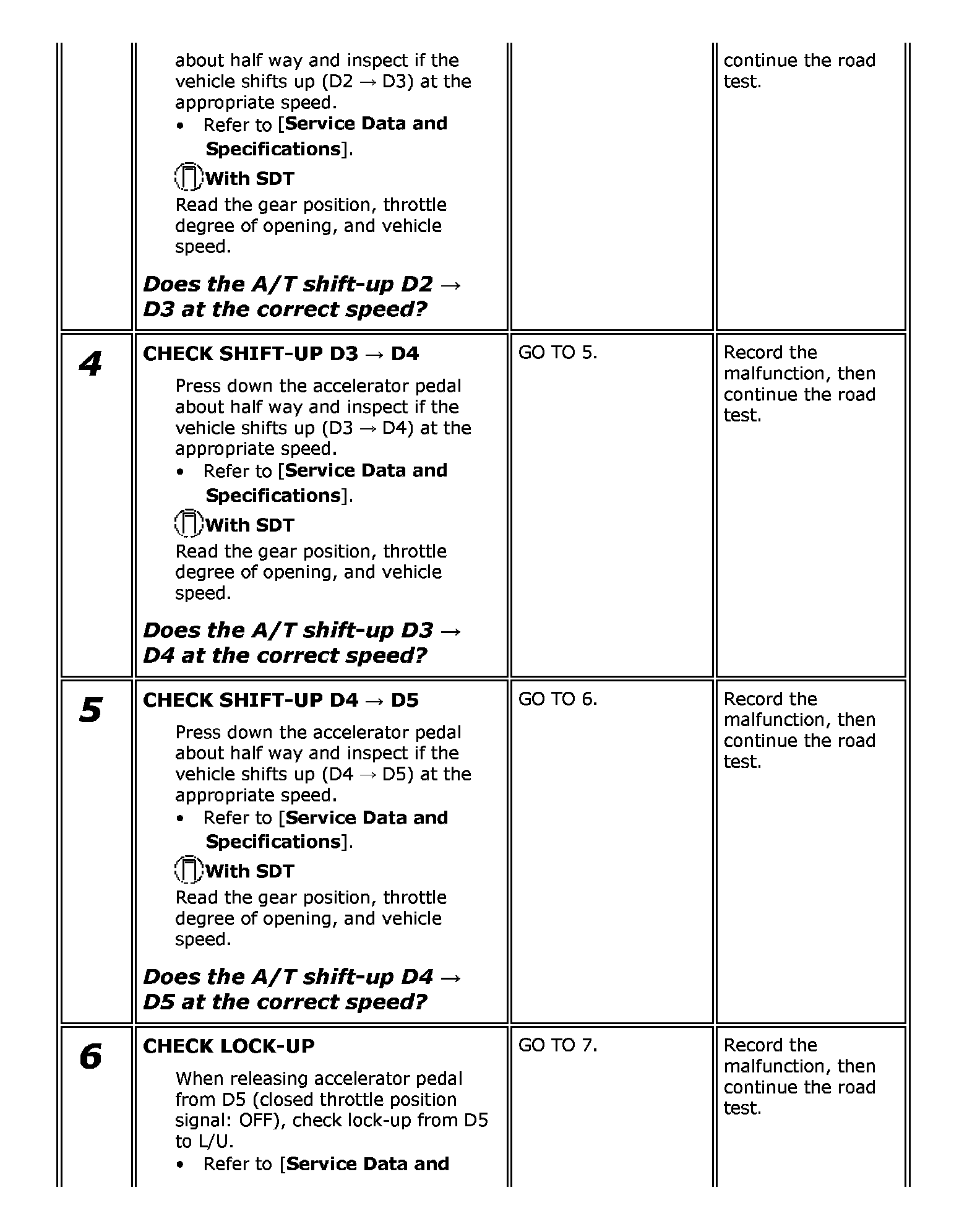

Steps 3-6:

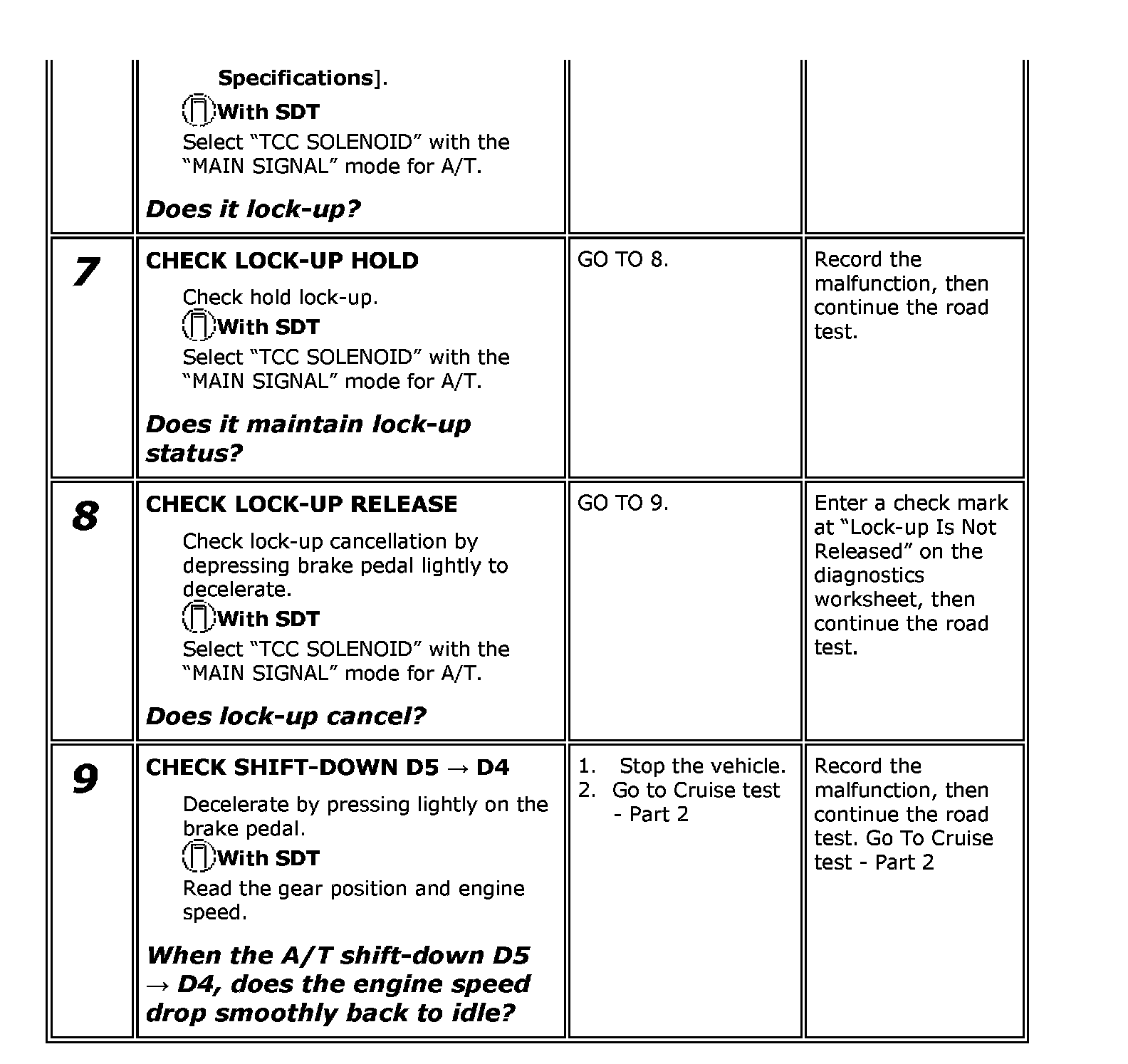

Steps 6-9:

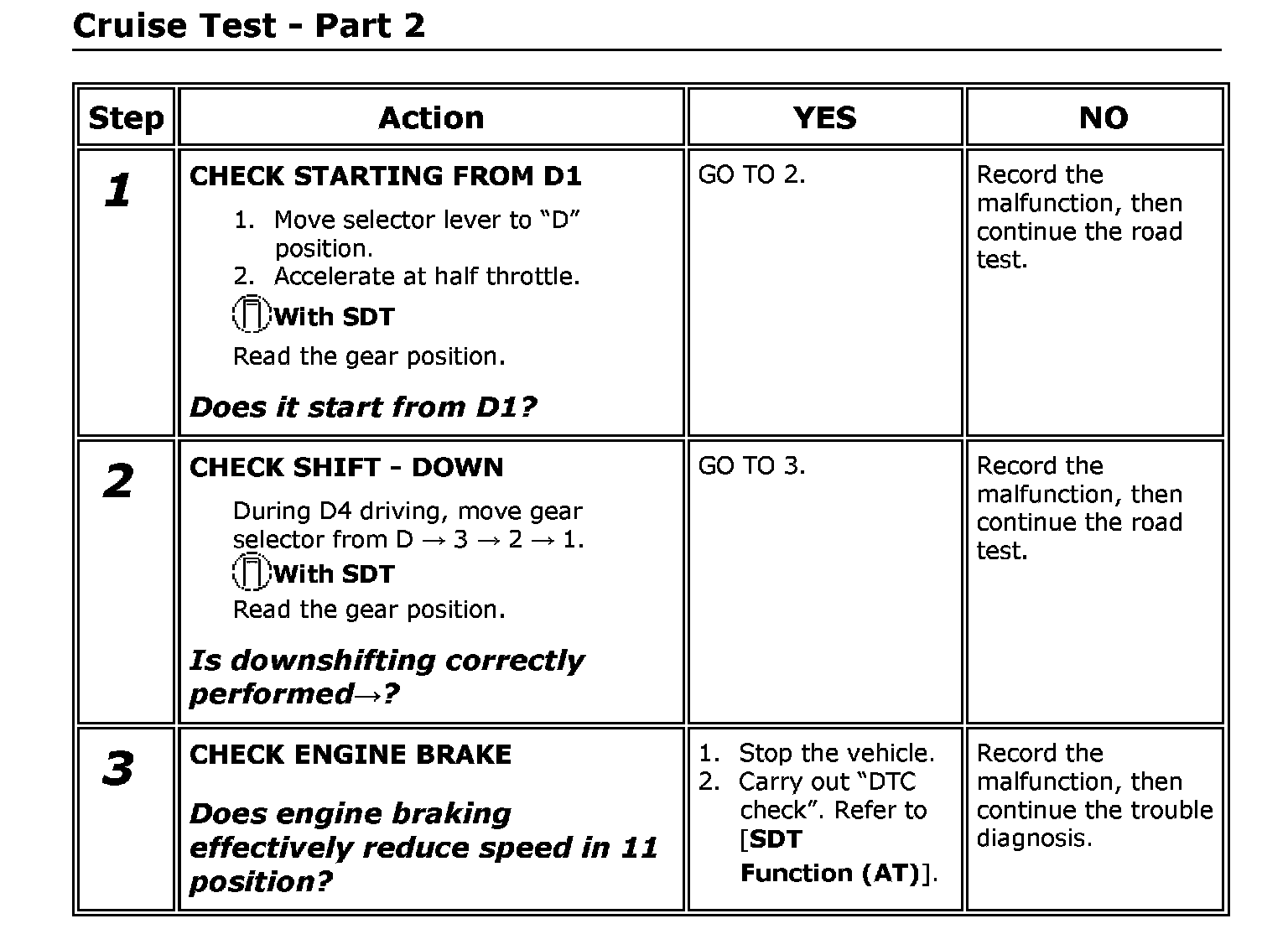

Cruise Test - Part 2

Steps 1-3:

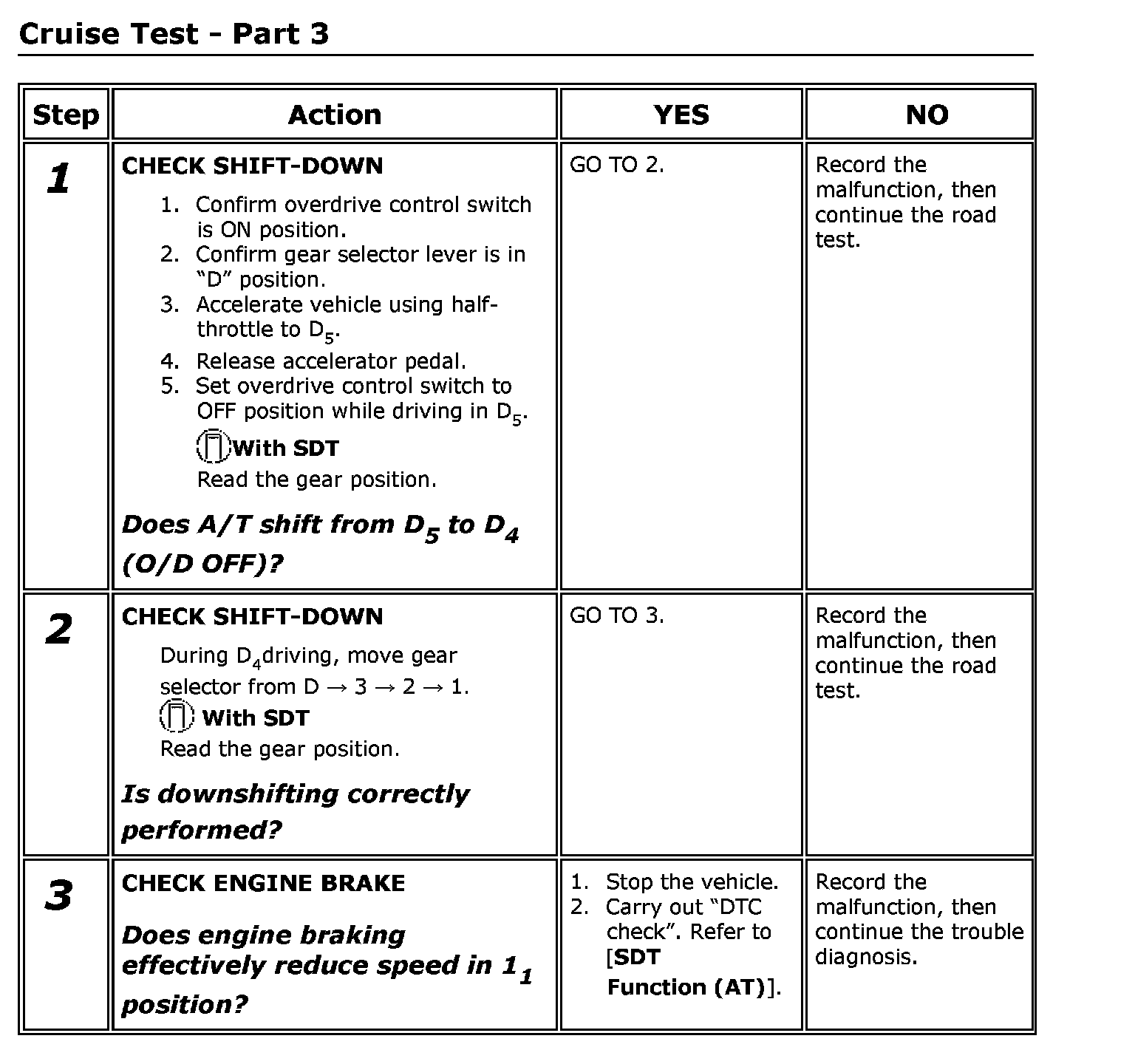

Cruise Test - Part 3

Steps 1-3:
