Overdrive Control Switch Circuit Check
Overdrive Control Switch Circuit Check
SDT Reference Value in Data List Mode

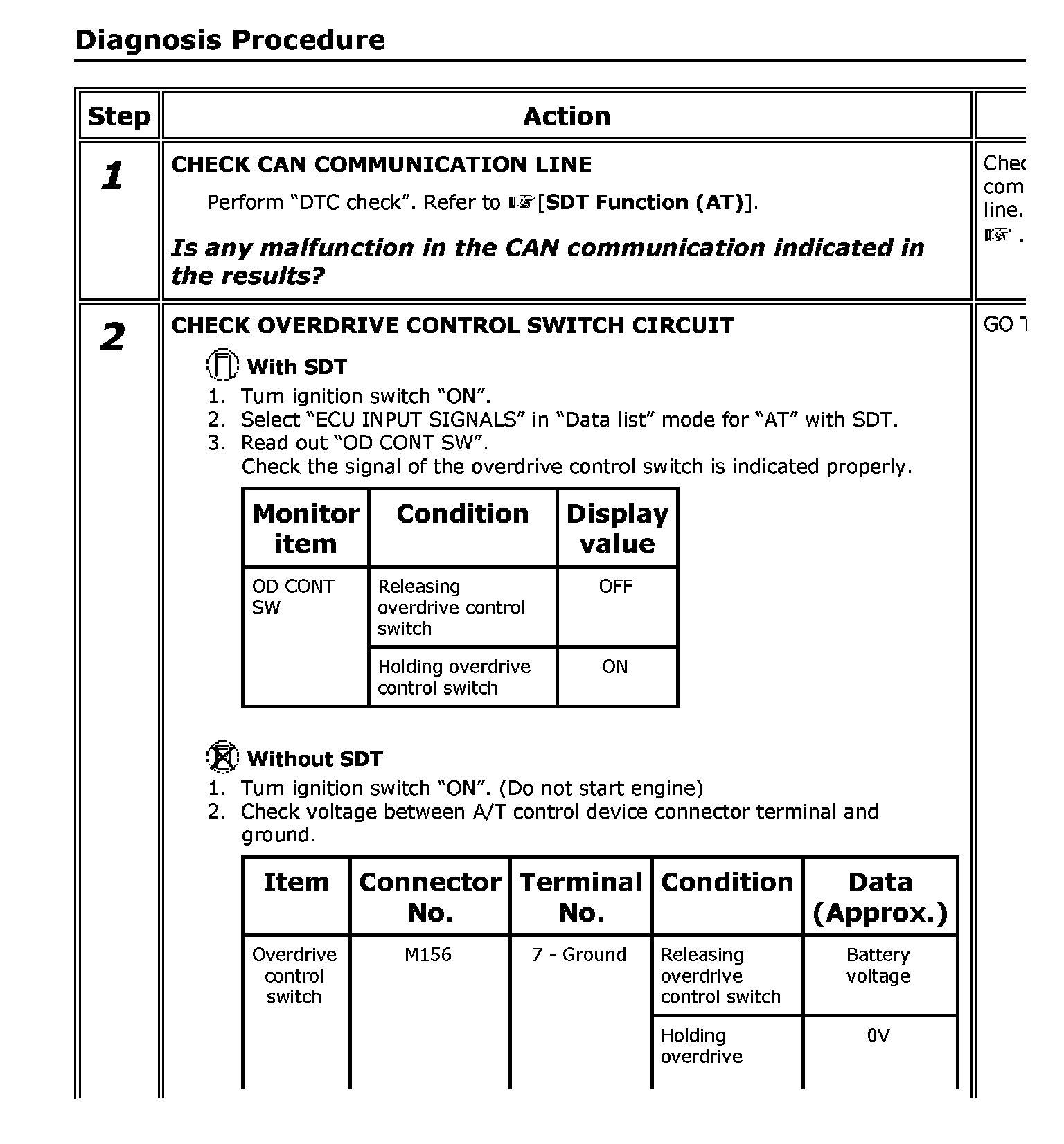

Diagnosis Procedure
Steps 1-2:

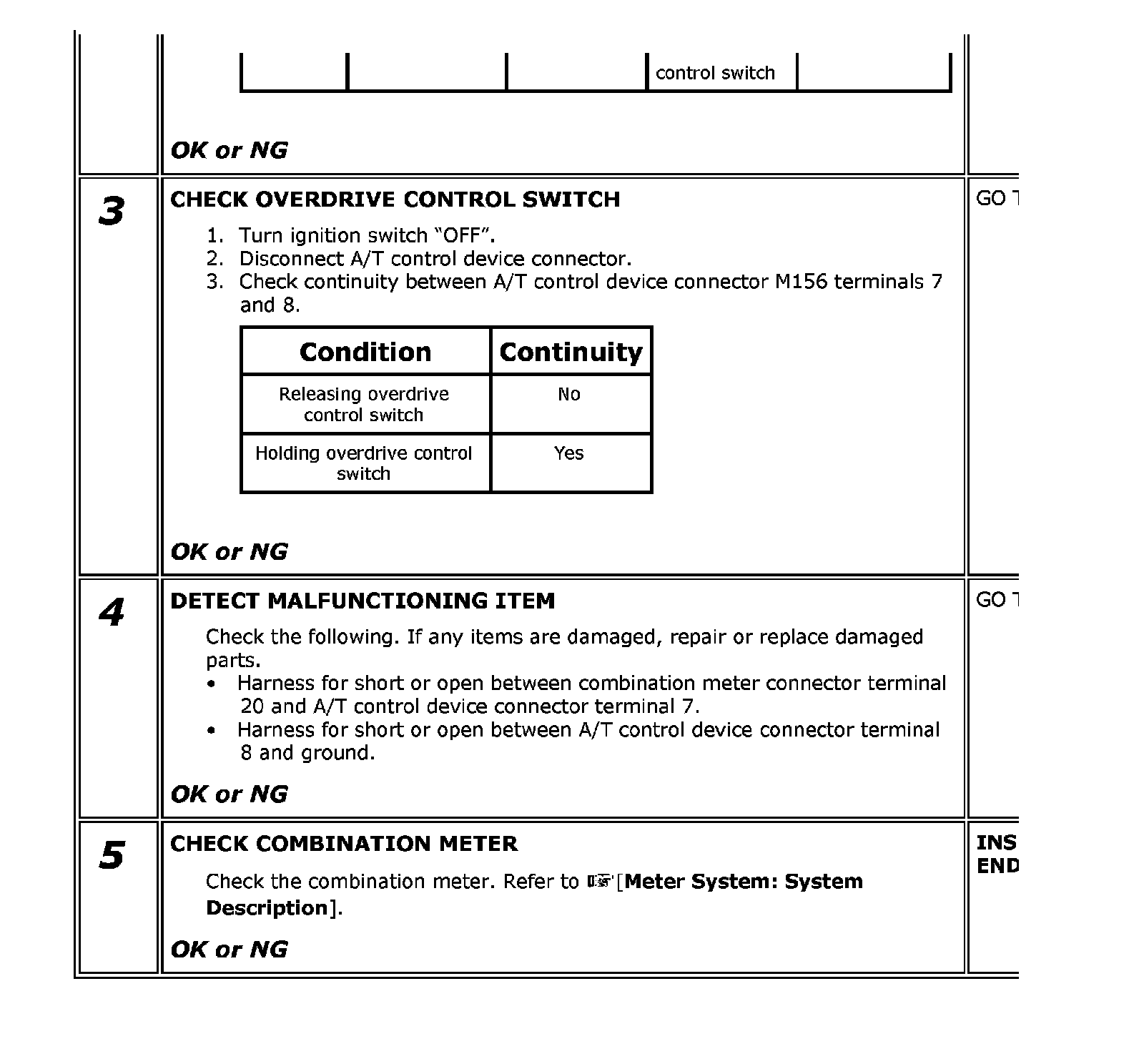

Steps 2-5:
