Main Power Supply and Ground Circuit Check

Main Power Supply and Ground Circuit Check

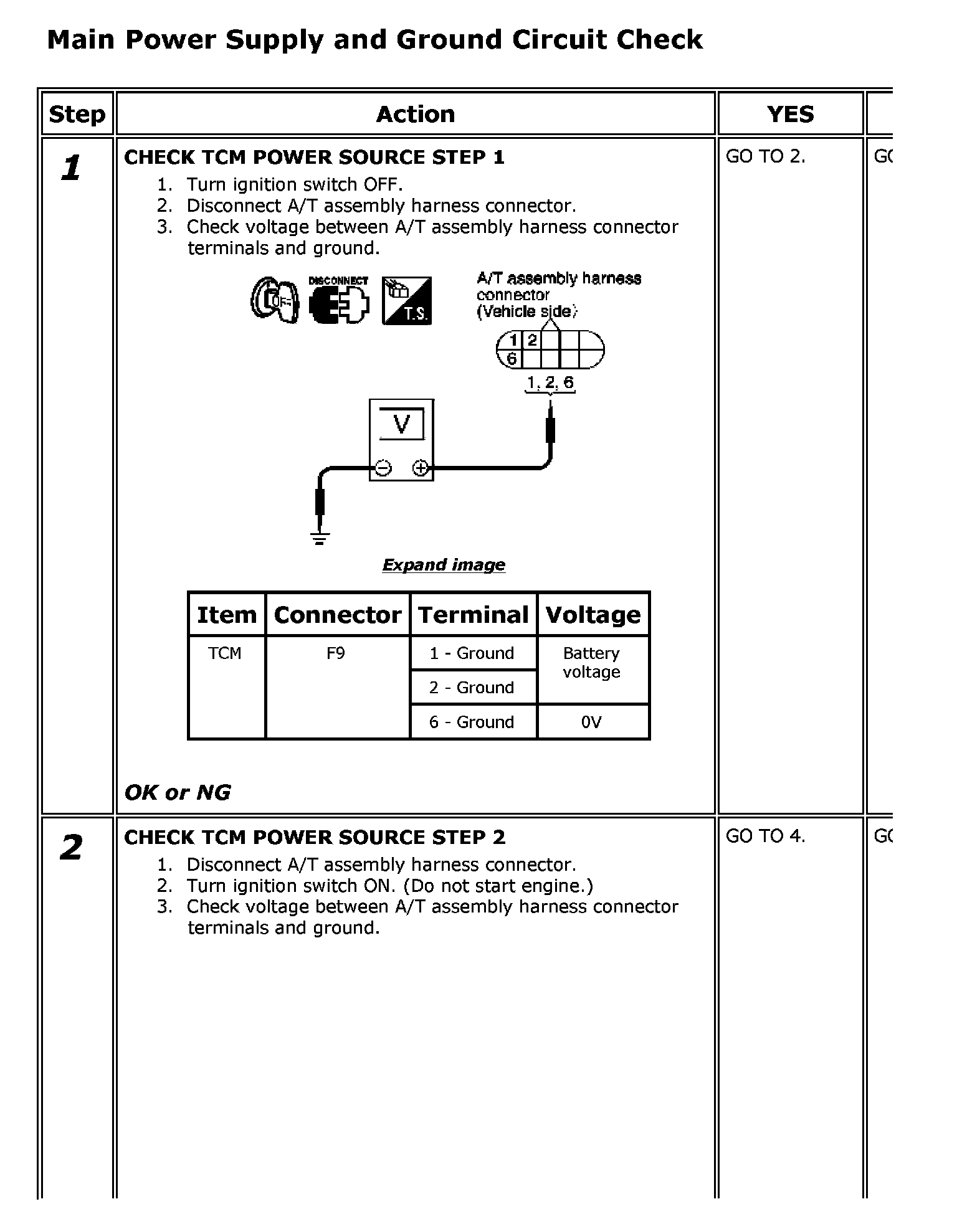

Steps 1-2:

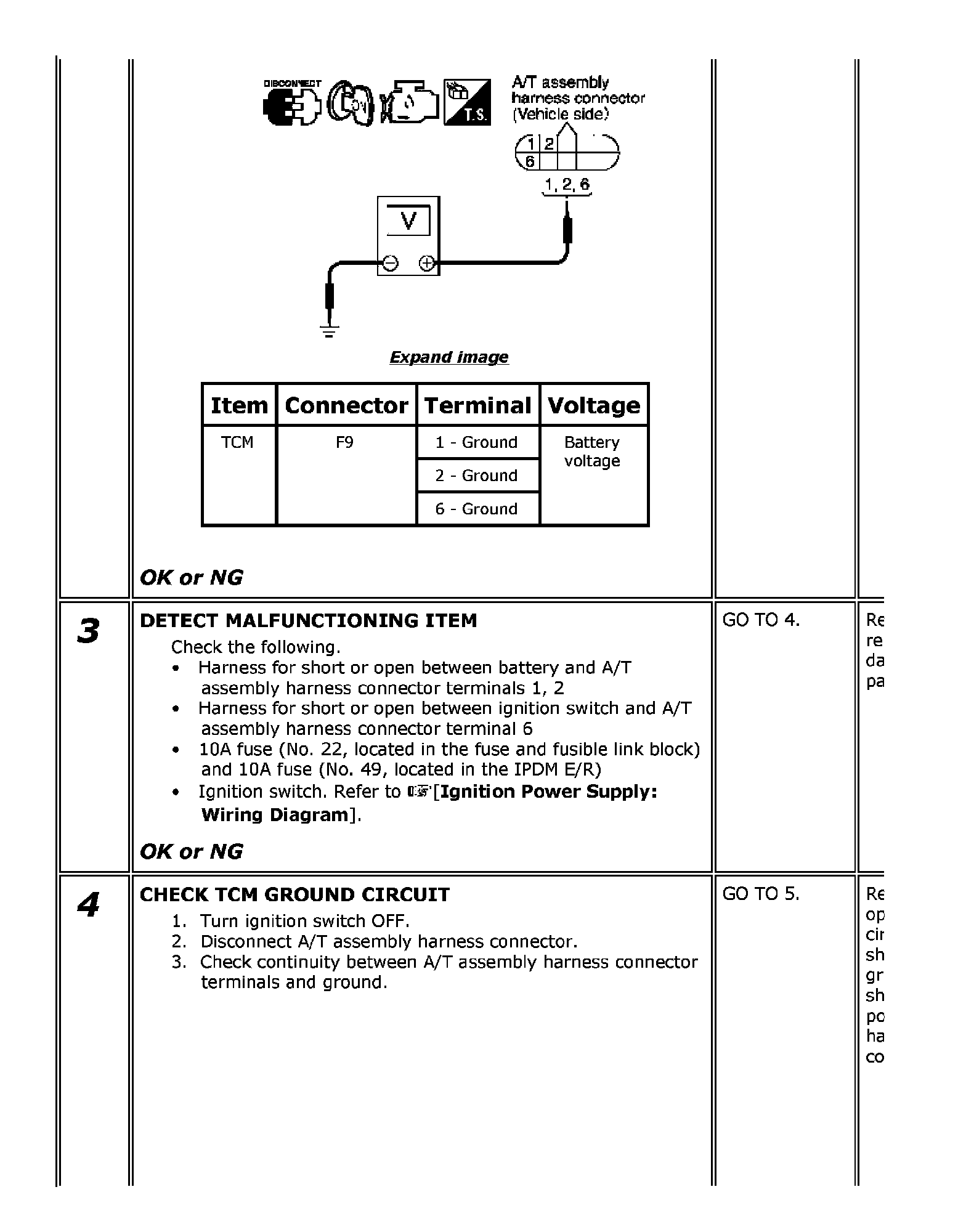

Steps 2-4:

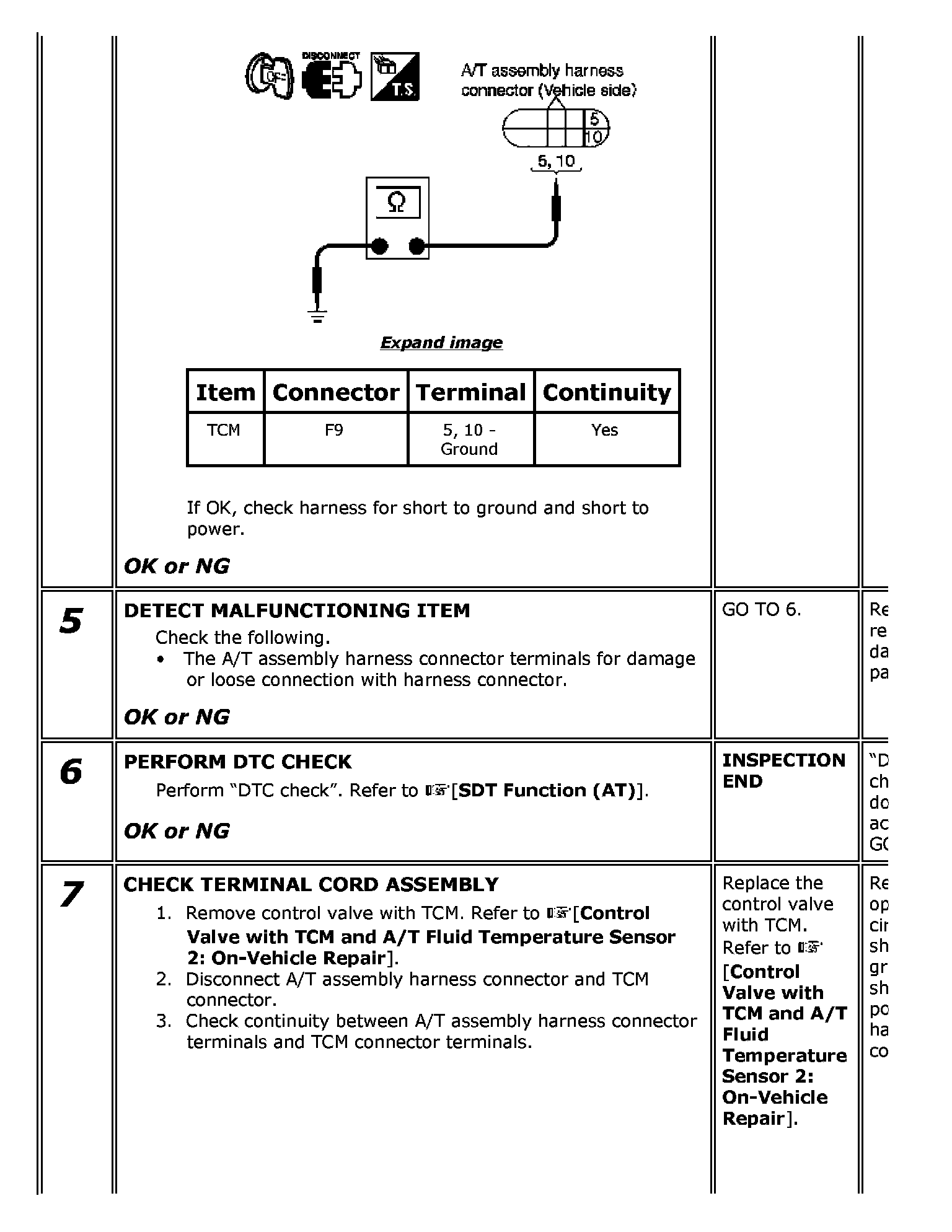

Steps 4-7:




Step 7:




Step 7:
