Brake Signal Circuit Check
Brake Signal Circuit Check
SDT Reference Value in Data List Mode

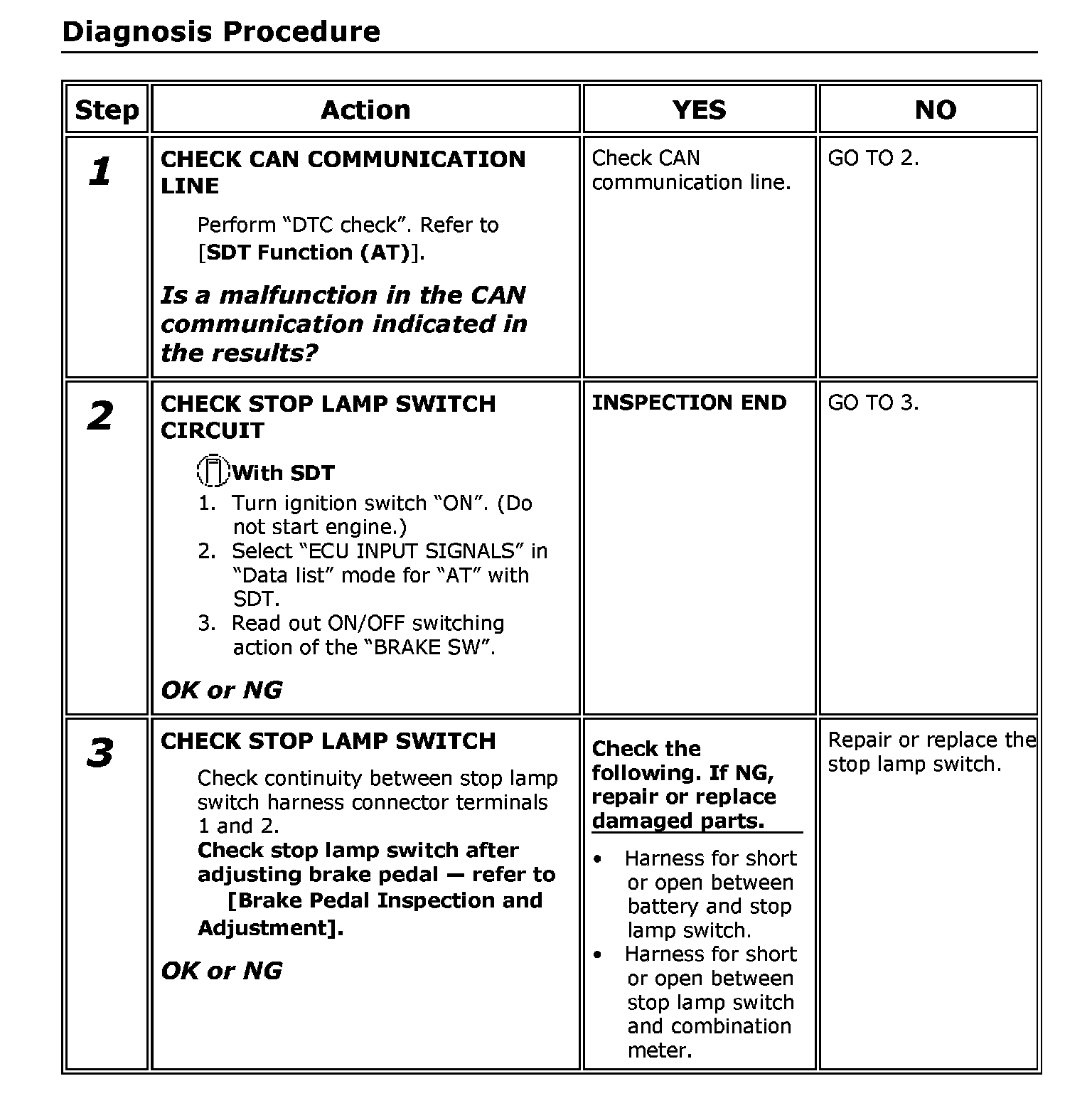

Diagnosis Procedure
Steps 1-3:
