Key Reminder Switch: Testing and Inspection

The Key Warning Does Not Sound

Description

Key warning does not sound even though key is in ignition and front door LH is opened.

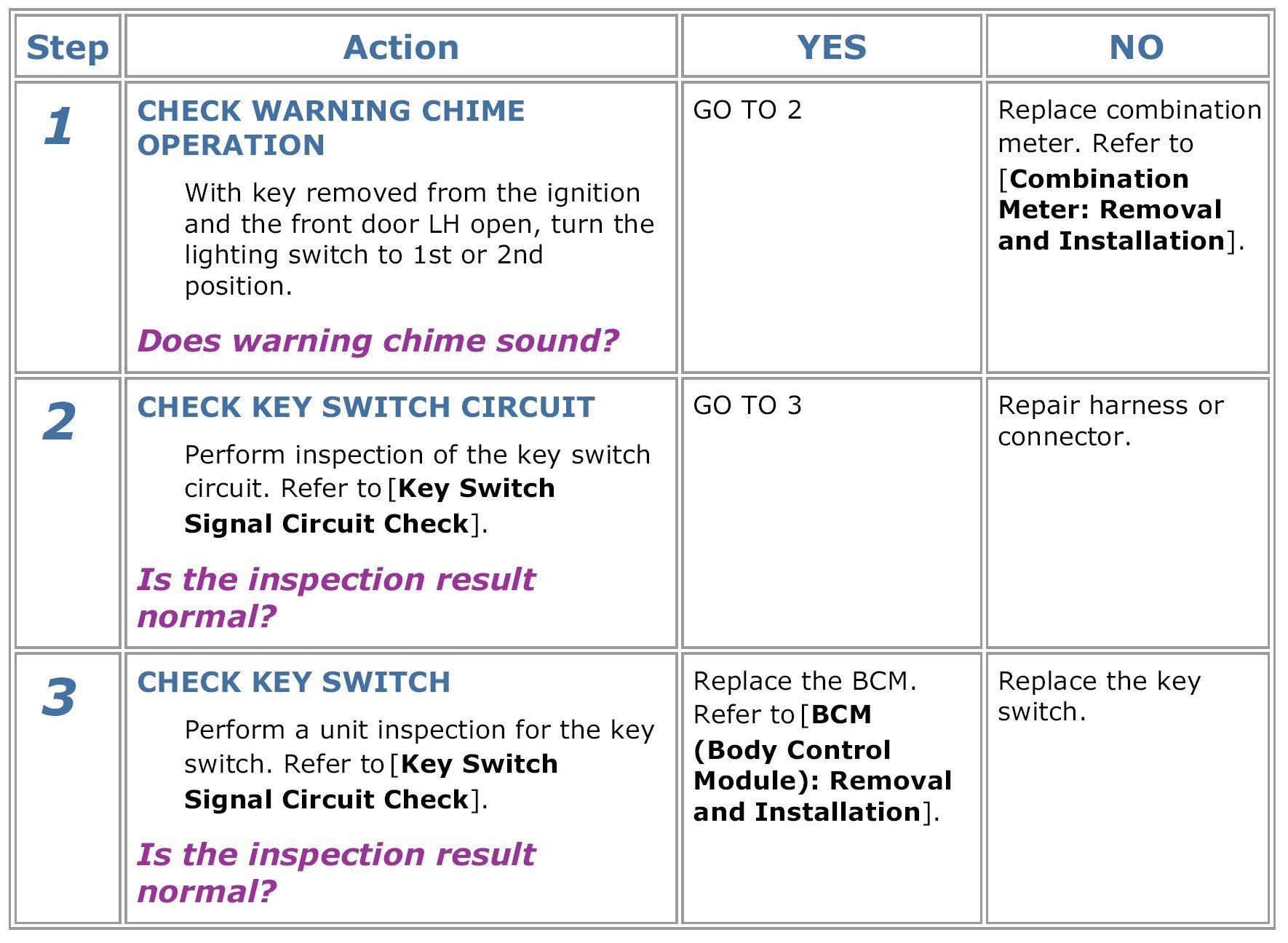

Diagnosis Procedure
