Diagnosis and Repair Workflow

Diagnosis and Repair Workflow

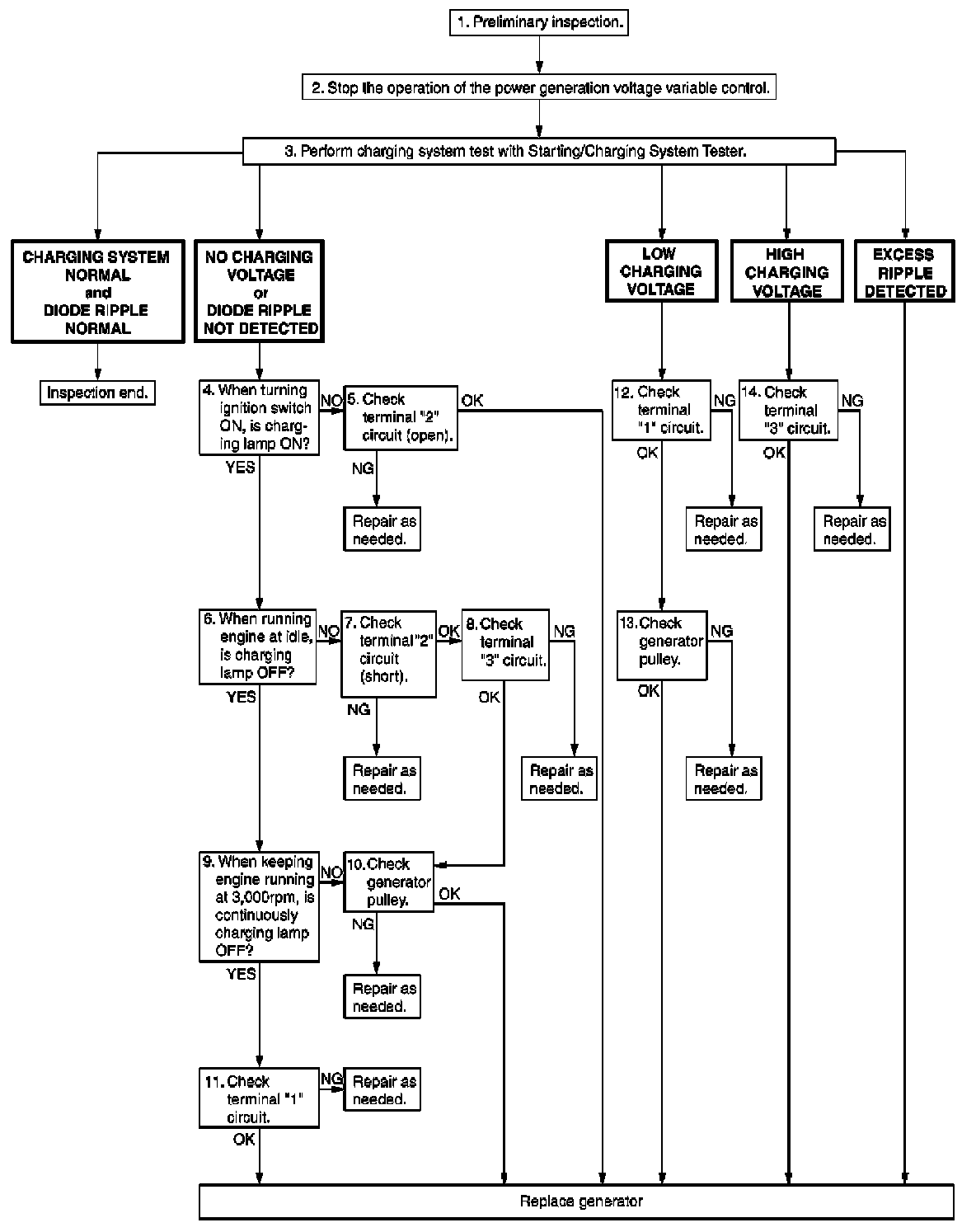

OVERALL SEQUENCE






DETAILED FLOW

NOTE: To ensure a complete and thorough diagnosis, the battery, starter and generator test segments must be done as a set from start to finish.

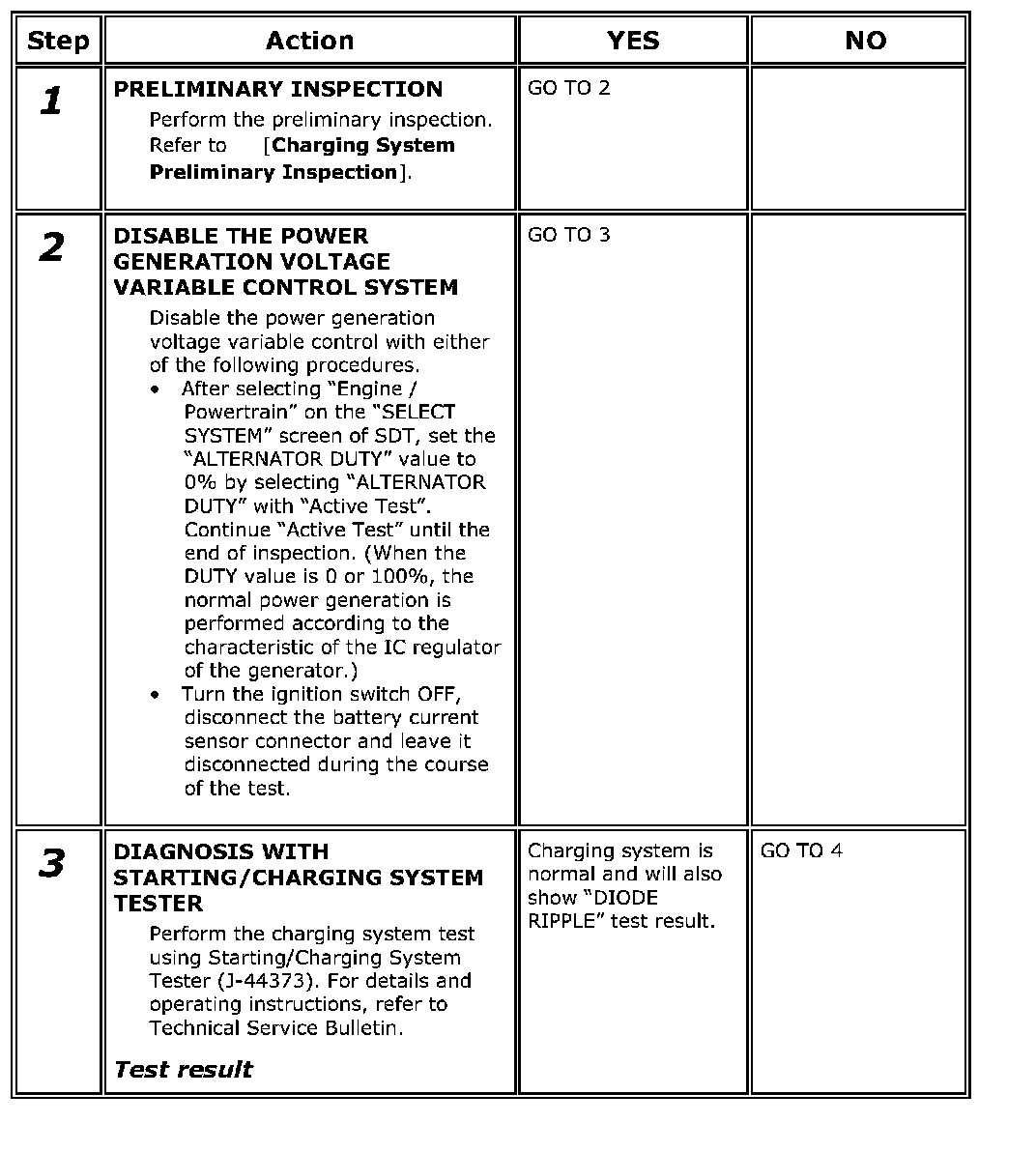

Step 1-3:

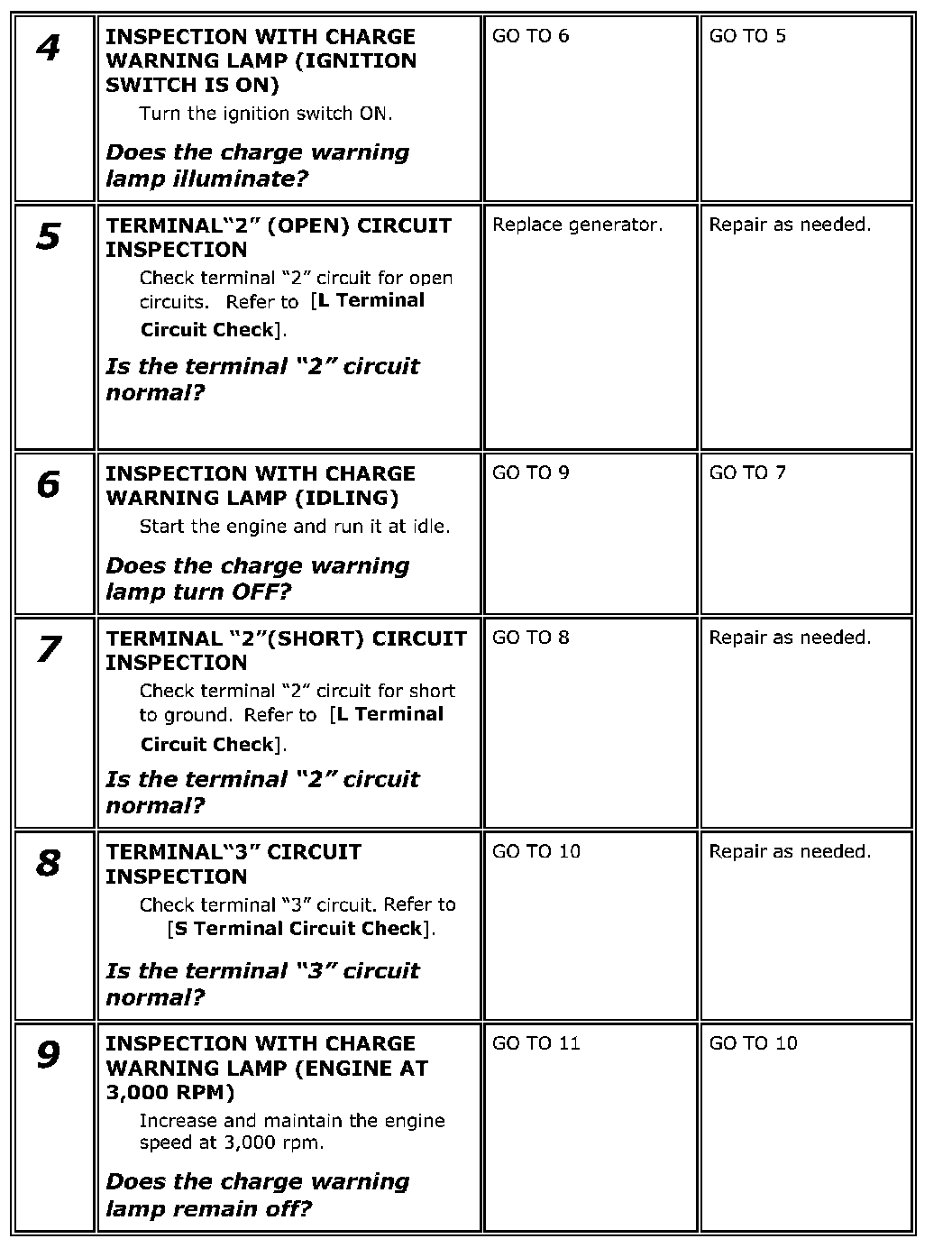

Step 4-9:

Step 10-14:
