Removal and Replacement

Battery: Removal and Installation

REMOVAL
1. Disconnect both negative and positive battery terminals.







CAUTION: Disconnect negative battery terminal first.

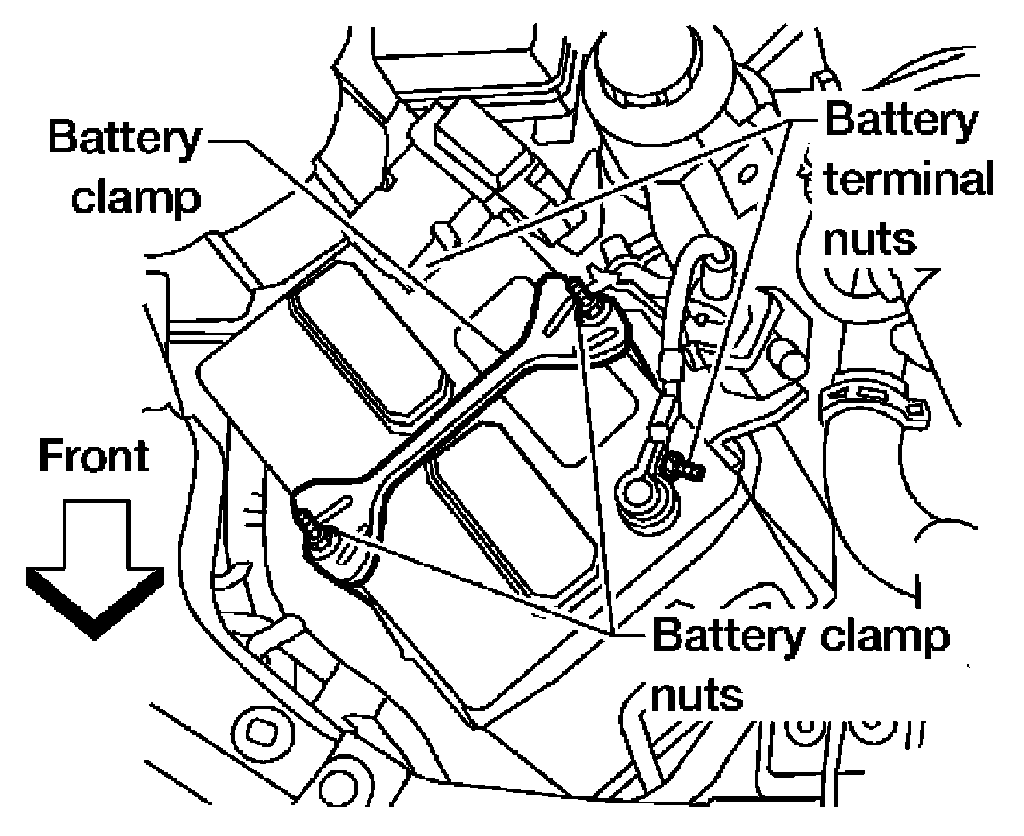

2. Remove battery clamp nuts and battery clamp.
3. Remove battery.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: Connect positive battery terminal first.

Battery clamp nuts : 3.92 N.m (0.40 kg.m, 35 in.lb)

Battery terminal nut : 3.4 N.m (0.35 kg.m, 30 in.lb)

Reset electronic systems as necessary. Refer to [Battery: Special Repair Requirement].
