Seat Belt Buckle Switch: Testing and Inspection
Seat Belt Buckle Switch Signal Circuit CheckDescription
Transmits a seat belt buckle switch signal to the combination meter.

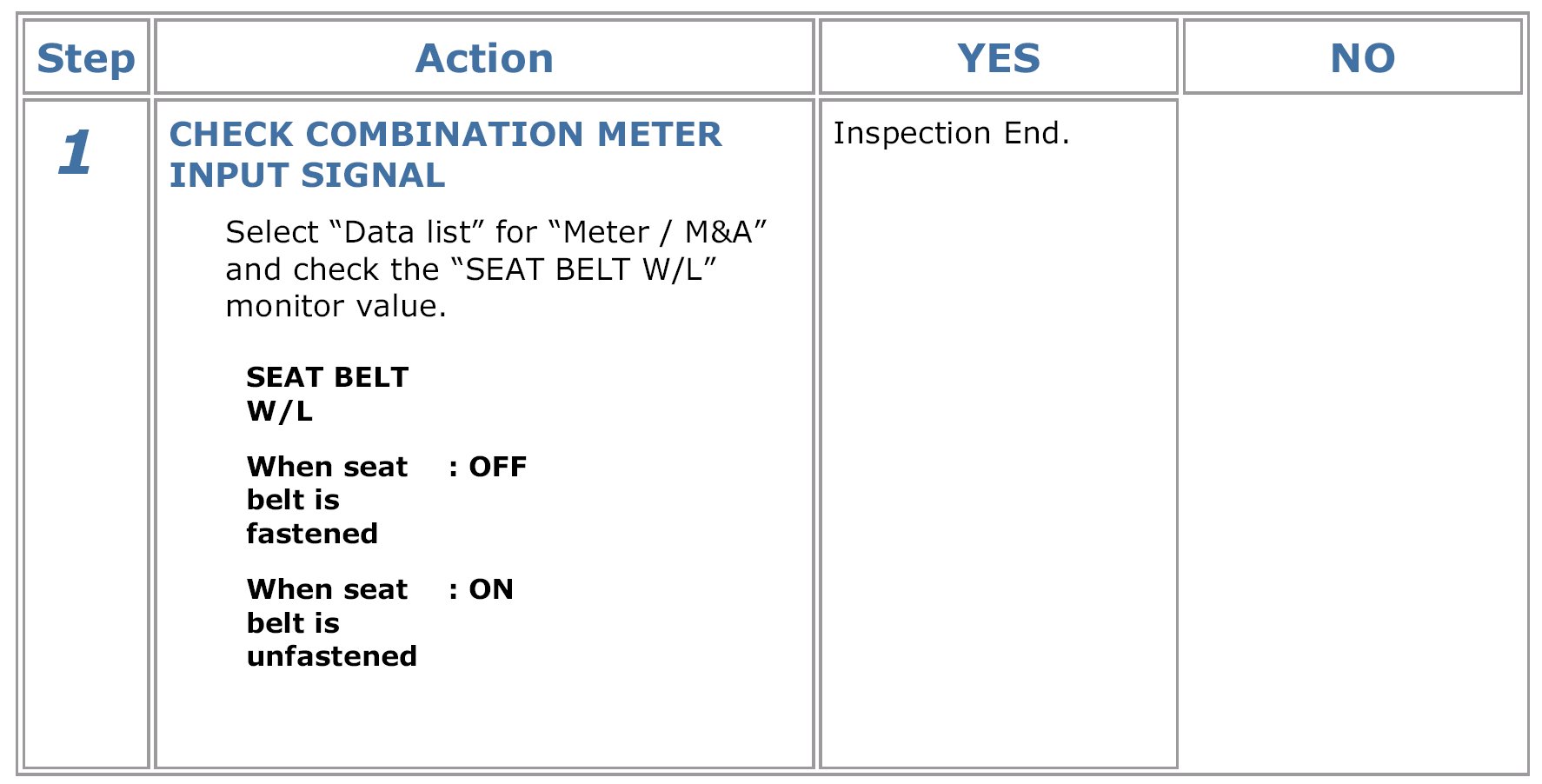

Component Function Check

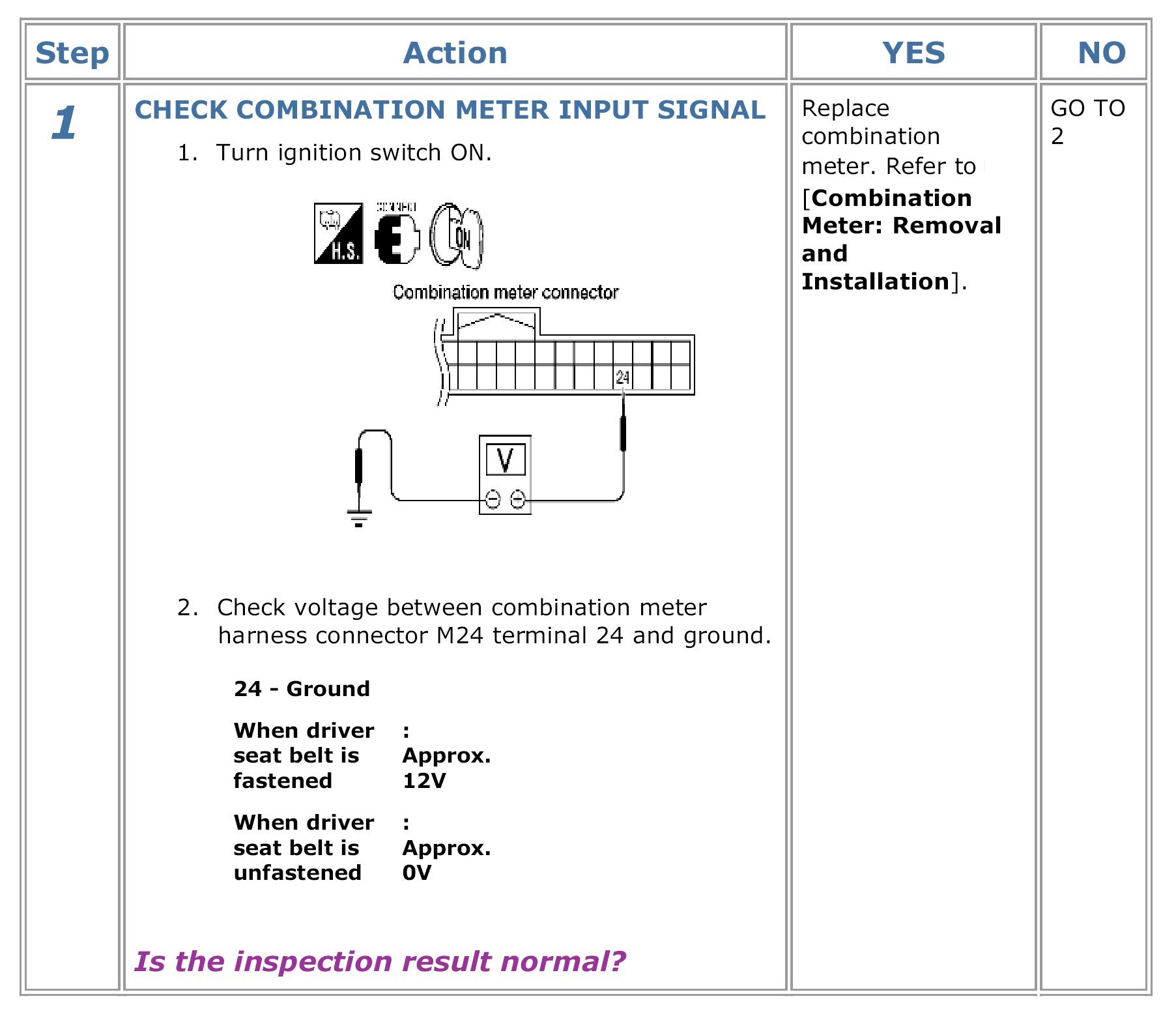

Diagnosis Procedure
Component Inspection
Description
Transmits a seat belt buckle switch signal to the combination meter.
Component Function Check

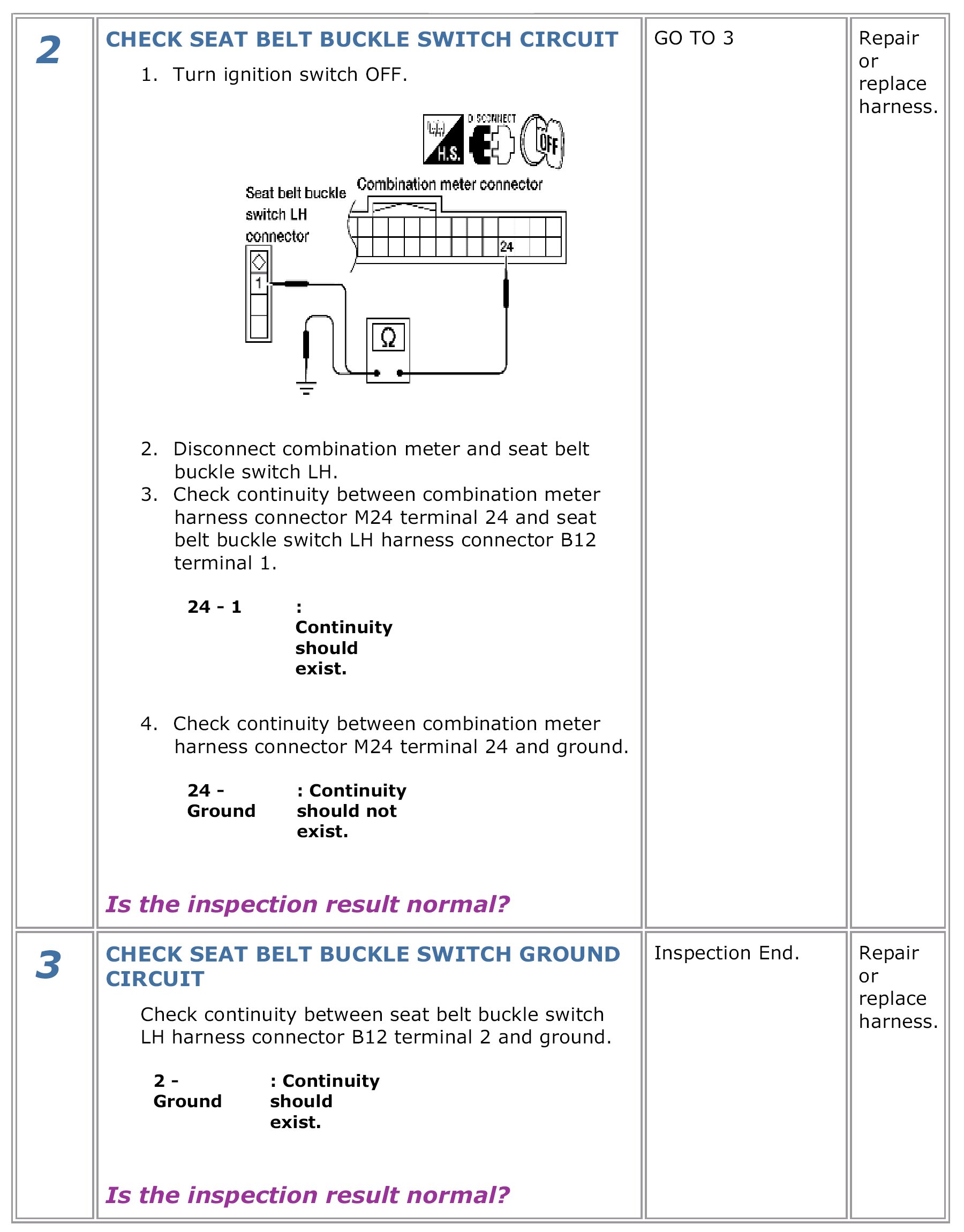

Diagnosis Procedure

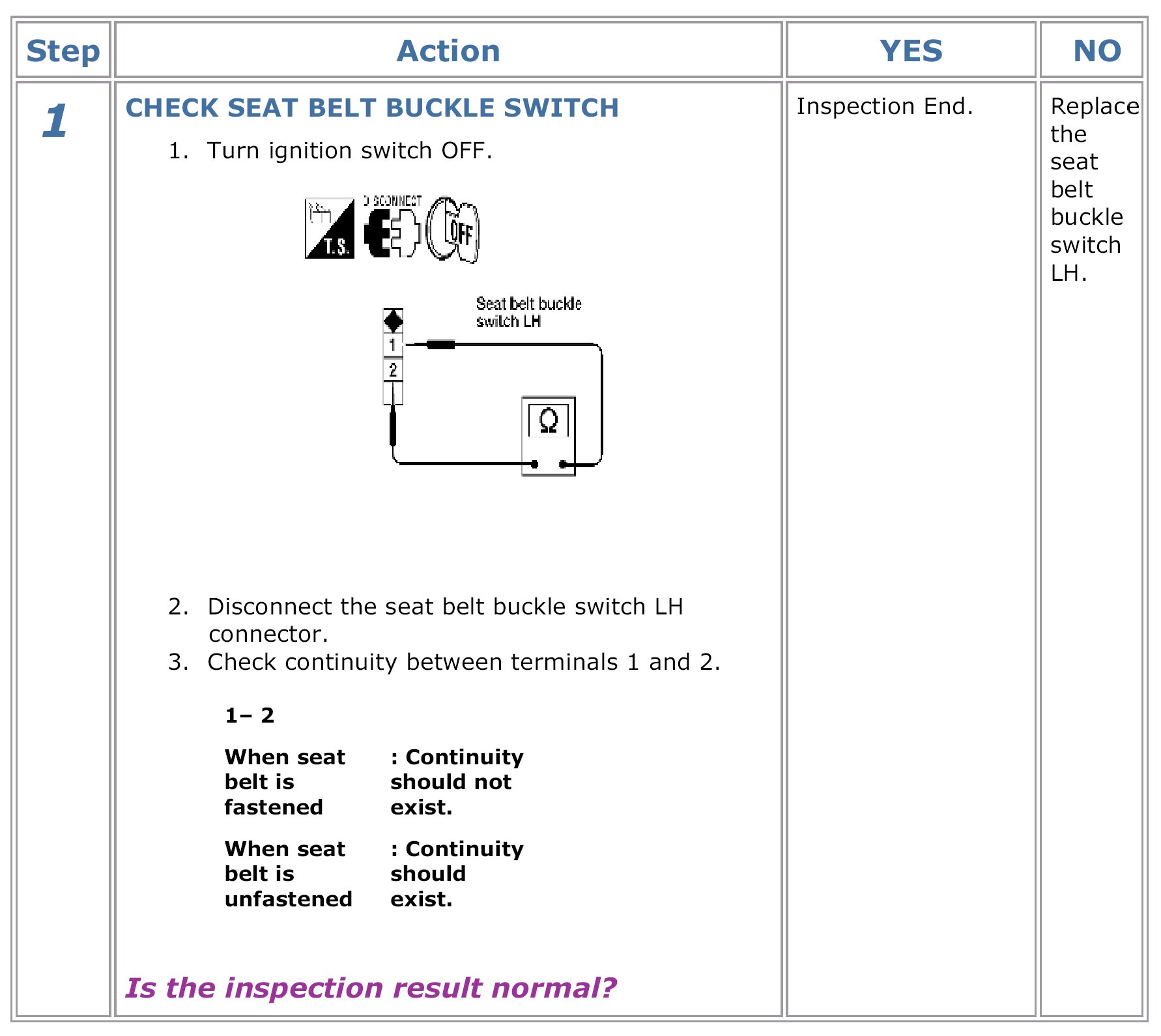

Component Inspection
