Fusible Link: Locations

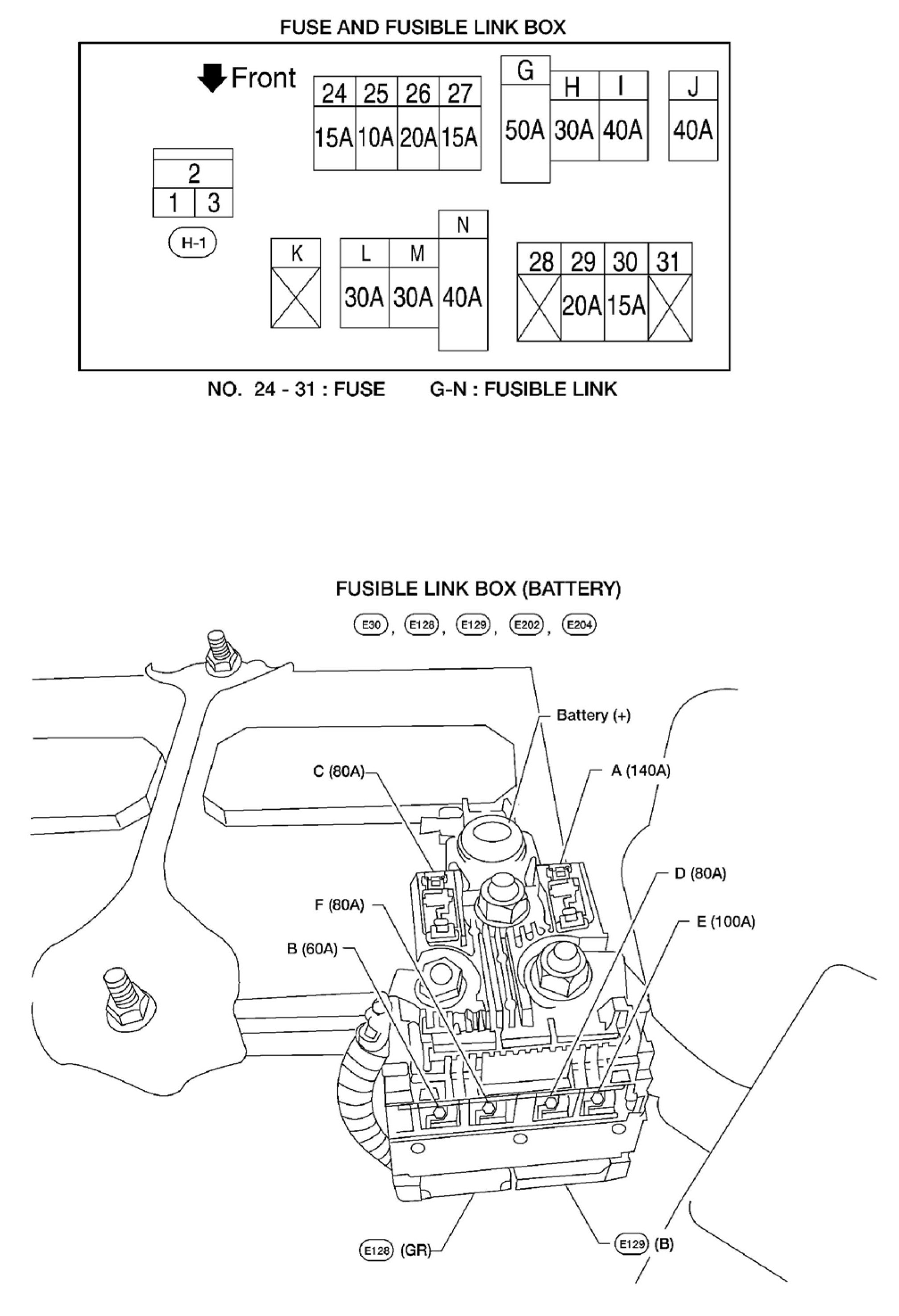

Fuse, Fusible Link and Relay Box: Terminal Arrangement

FUSE AND FUSIBLE LINK BOX


Fuse And Fusible Link Box:
