Ignition Power Supply

Ignition Power Supply: Wiring Diagram

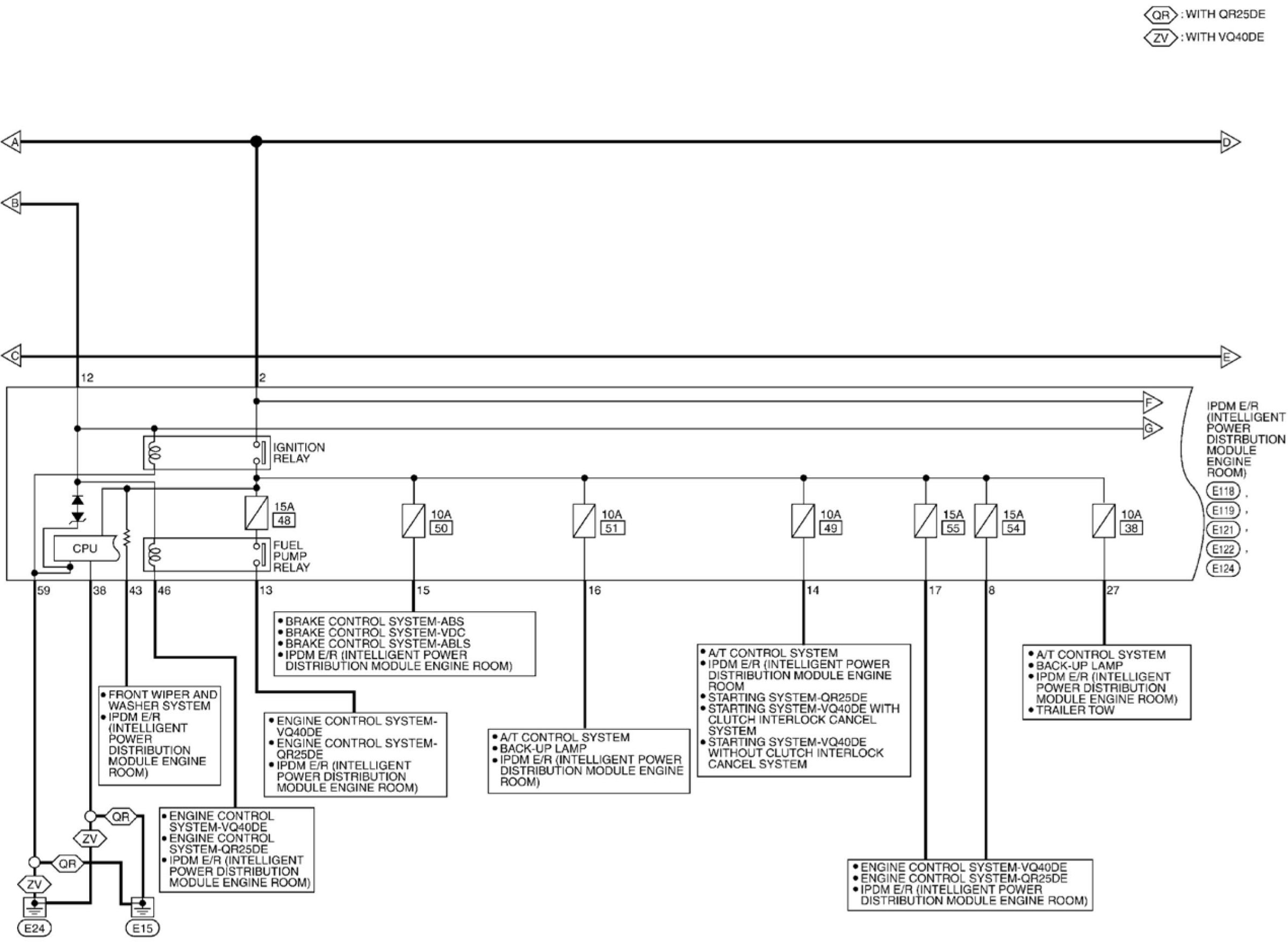

Ignition Power Supply (Part 1):

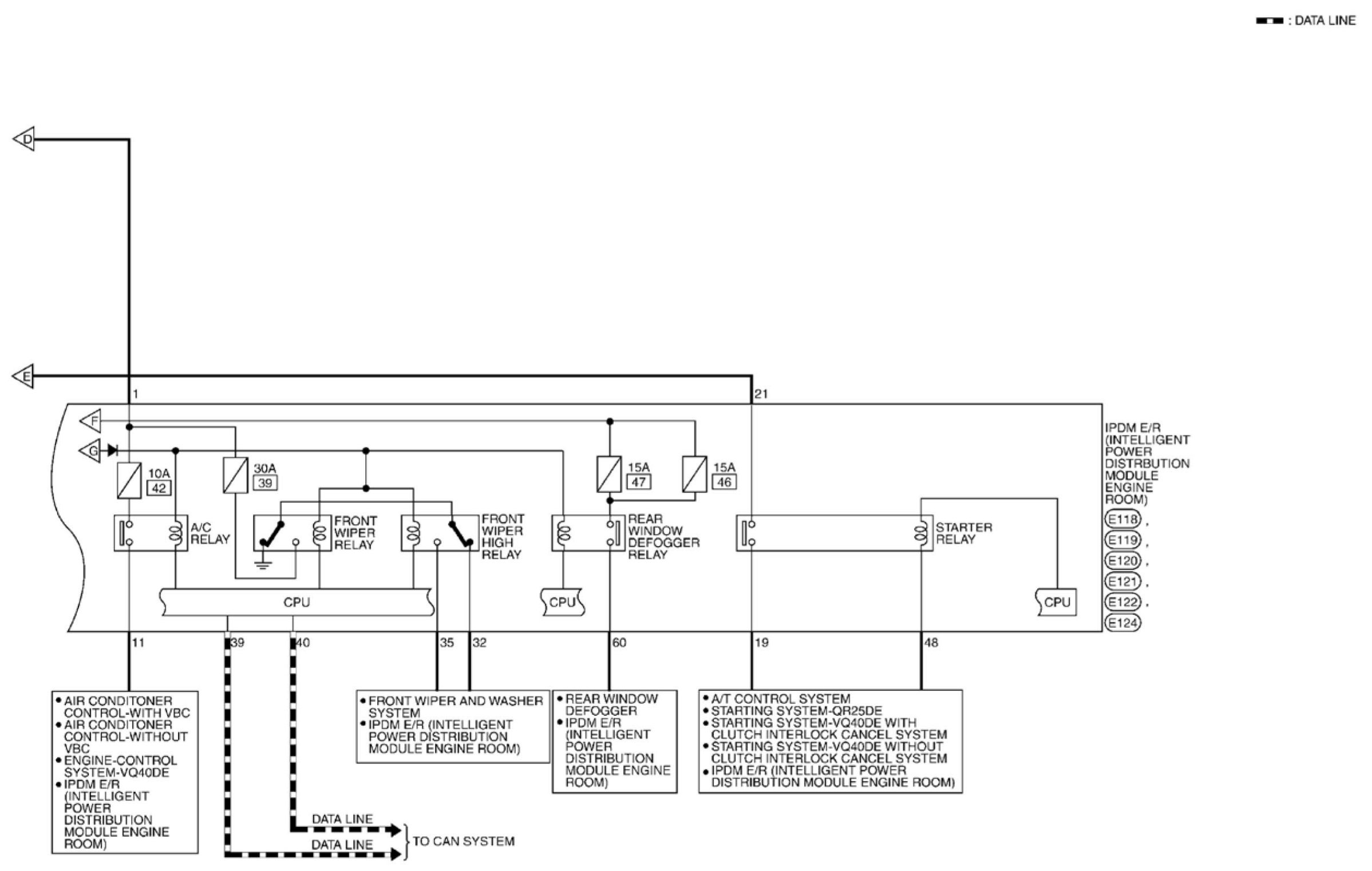

Ignition Power Supply (Part 2):

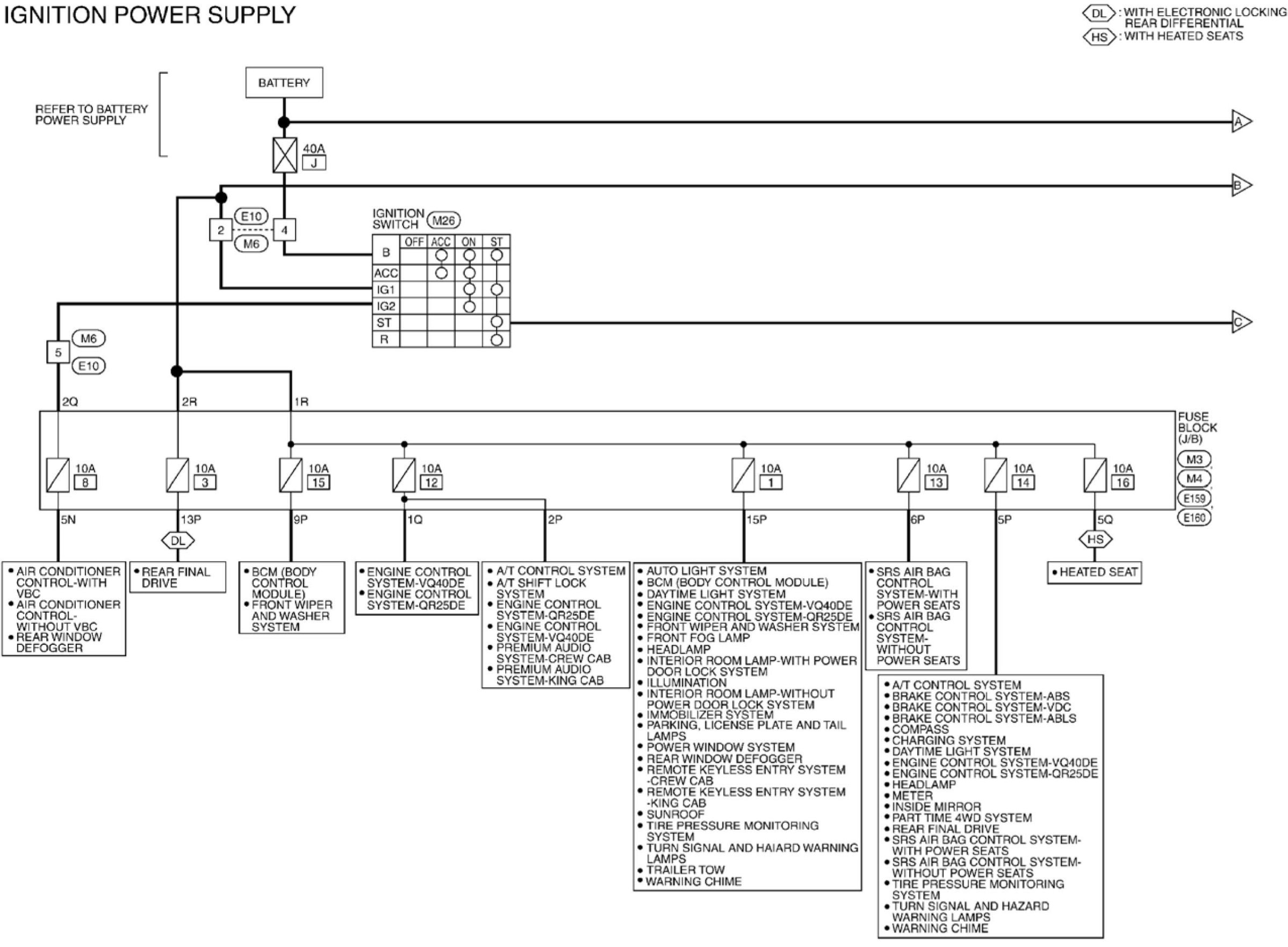

Ignition Power Supply (Part 3):






Ignition Power Supply Connectors

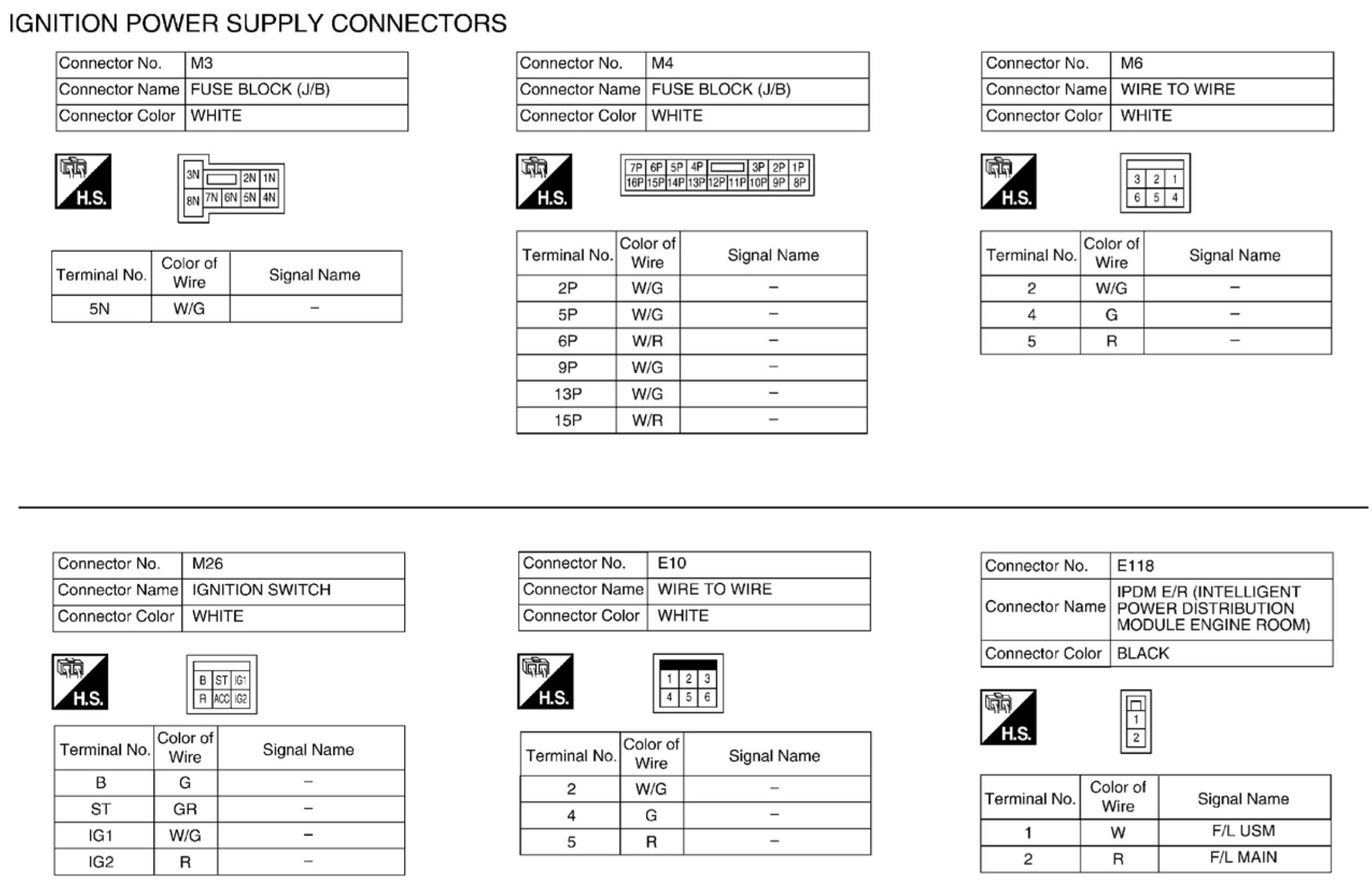

Ignition Power Supply Connectors (Part 1):

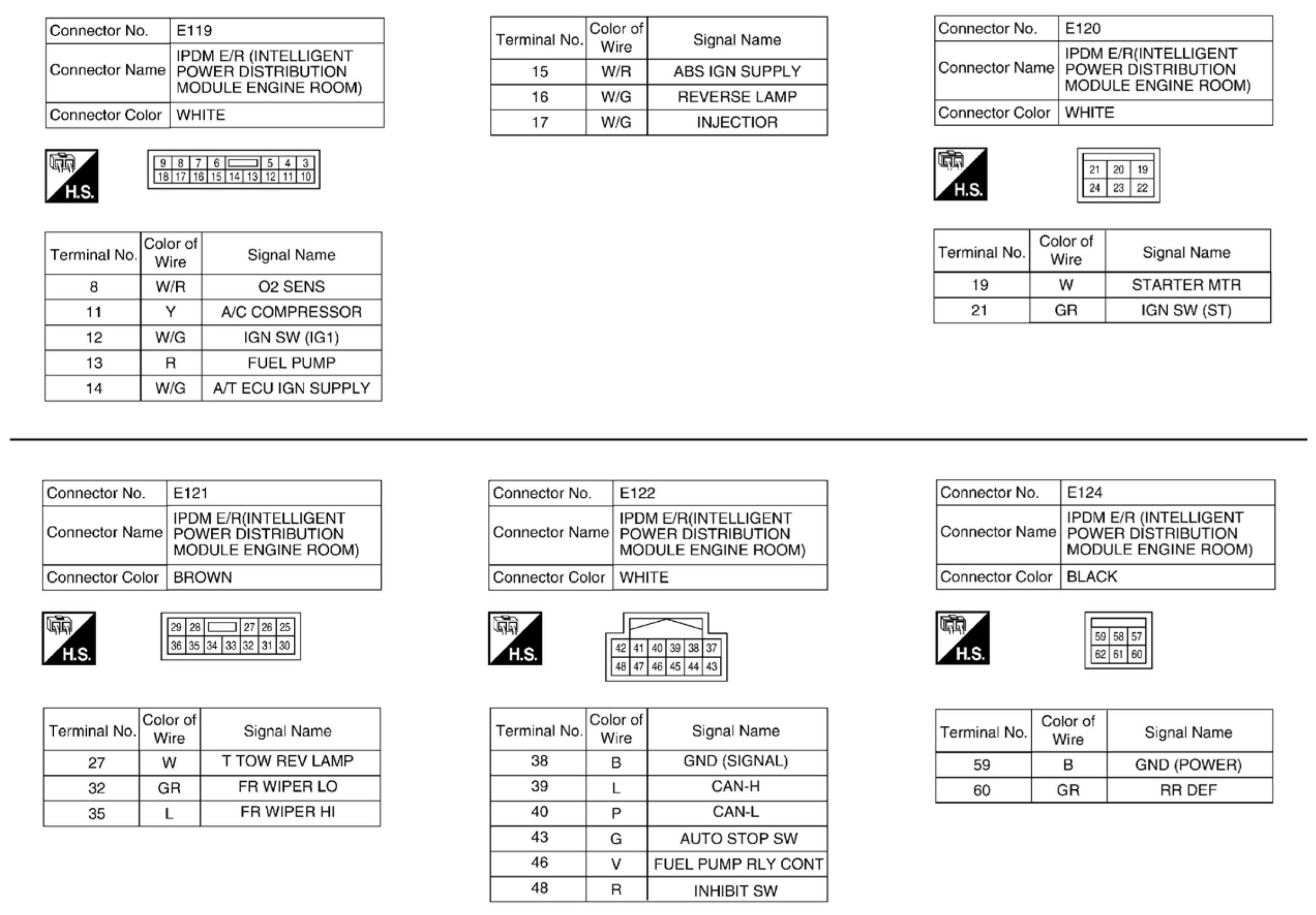

Ignition Power Supply Connectors (Part 2):

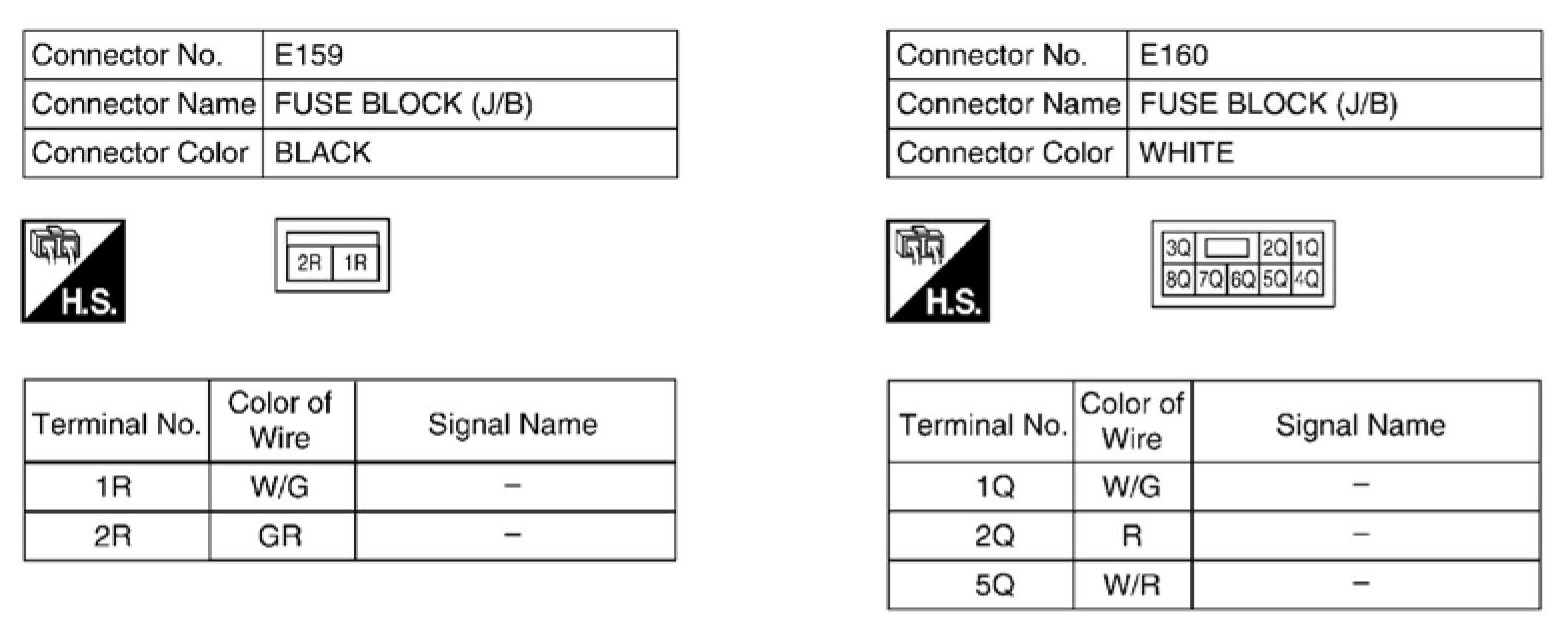

Ignition Power Supply Connectors (Part 3):
