Main Harness

Ground Distribution

MAIN HARNESS

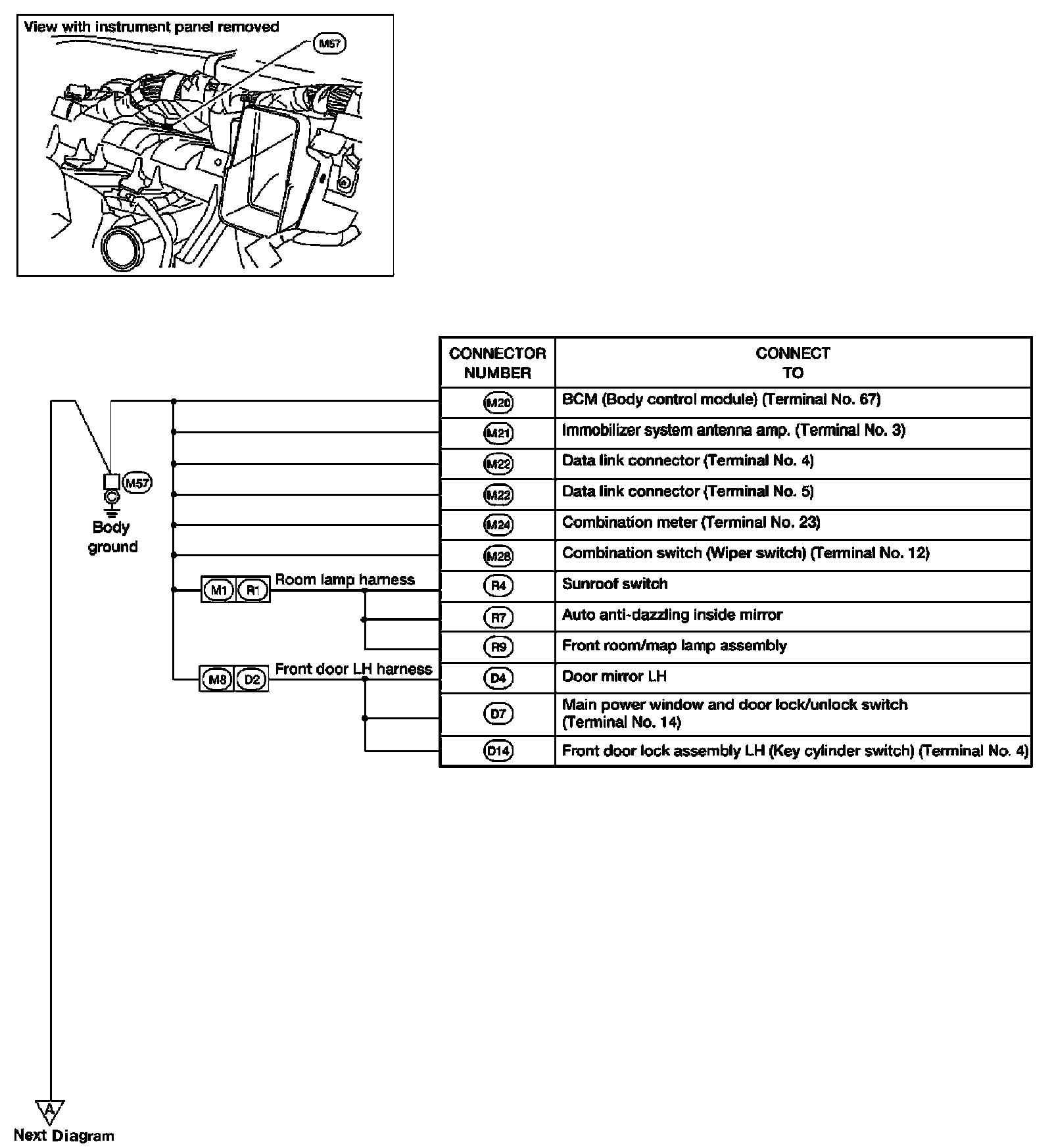

Main Harness (Part 1):

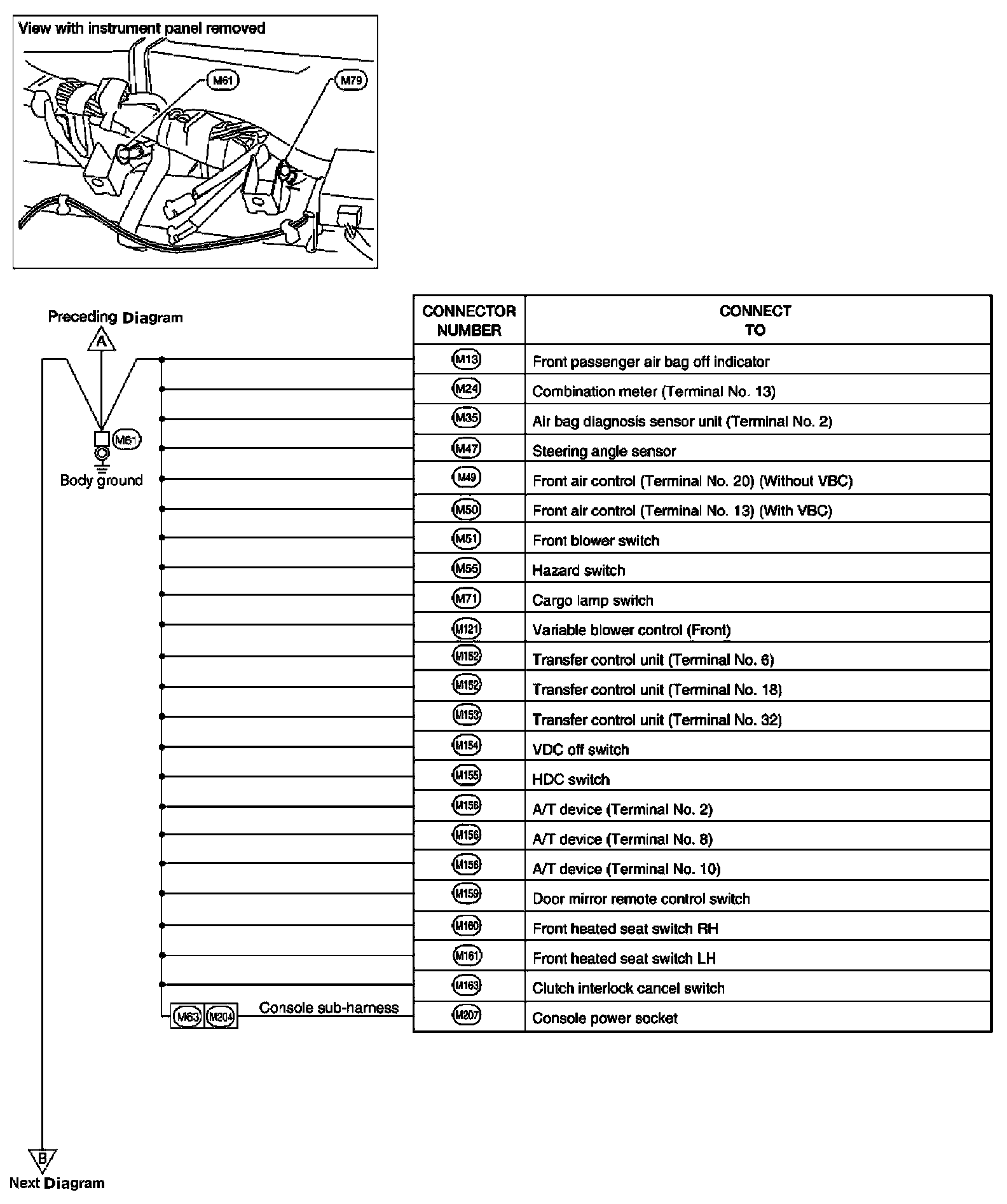

Main Harness (Part 2):

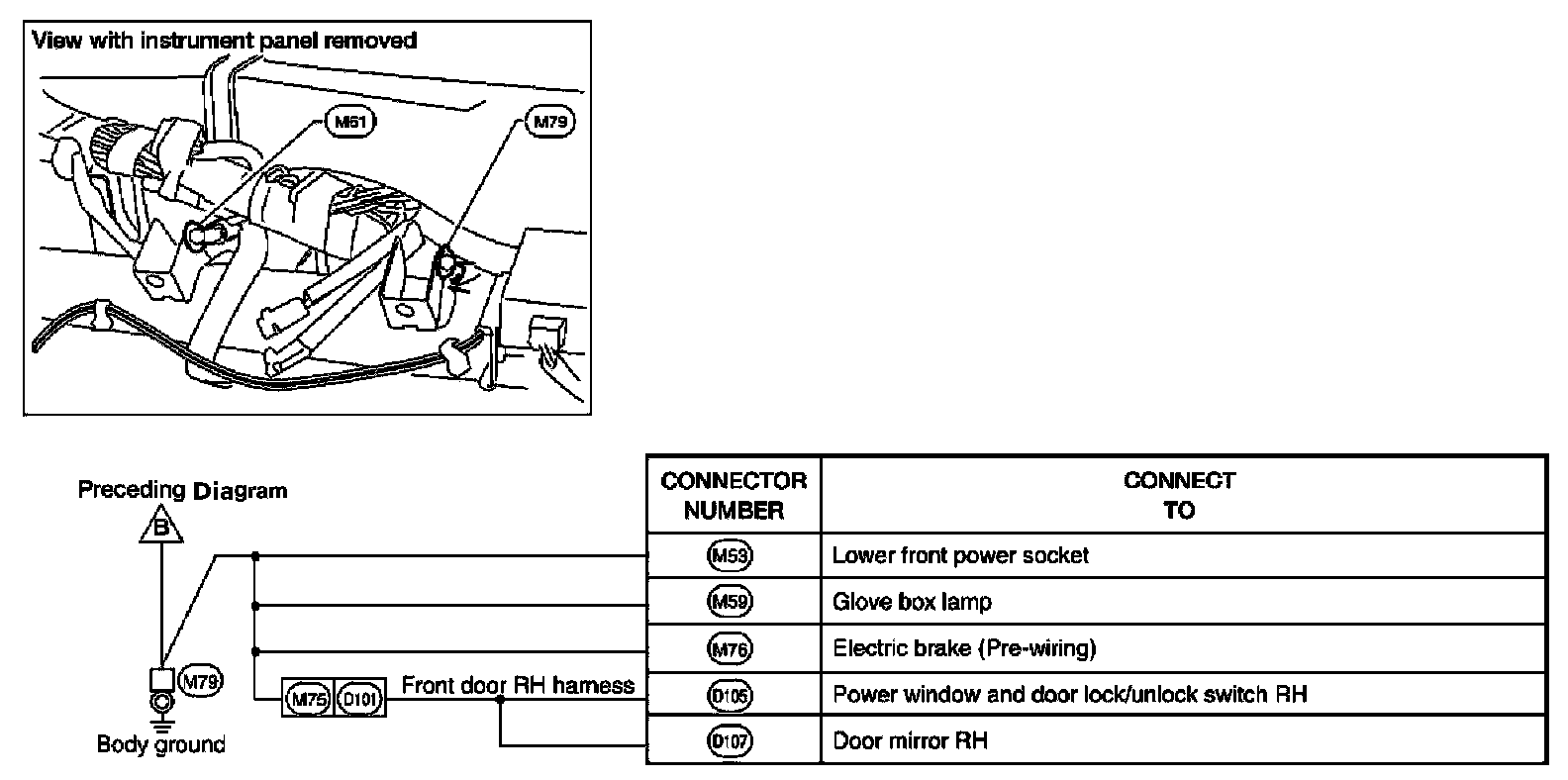

Main Harness (Part 3):
