Engine Room Harness

ENGINE ROOM HARNESS

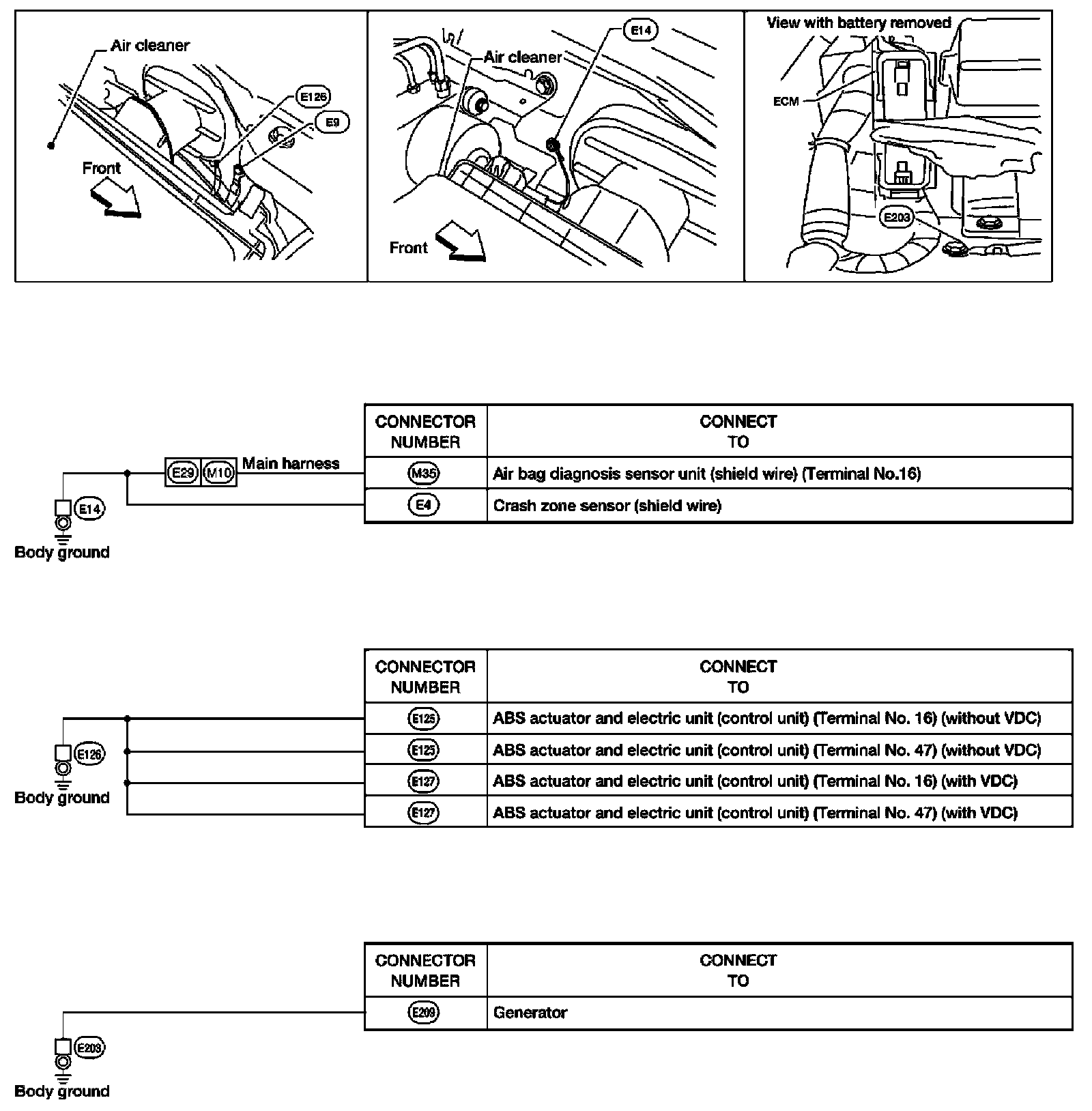

Engine Room Harness (Part 1):

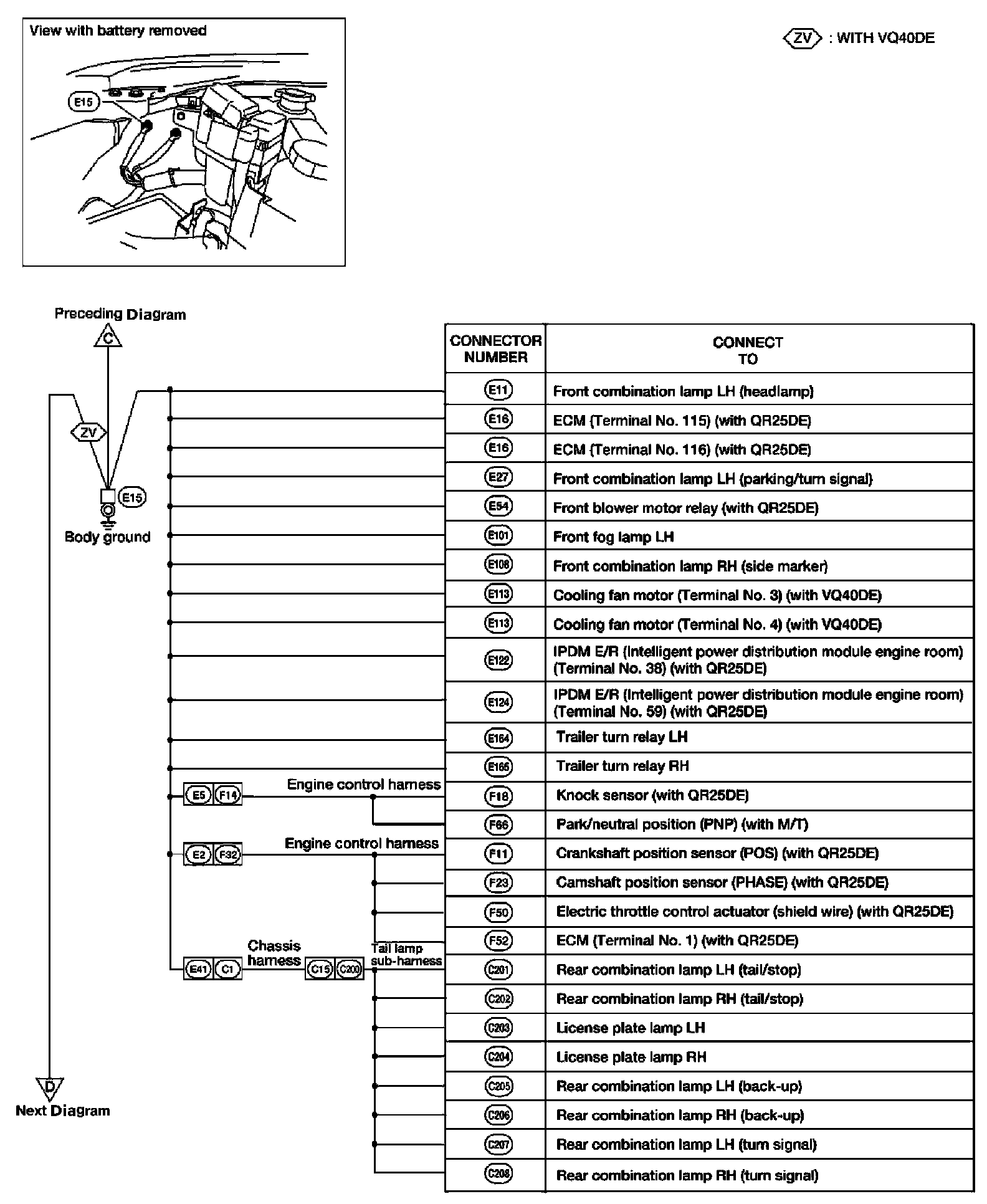

Engine Room Harness (Part 2):

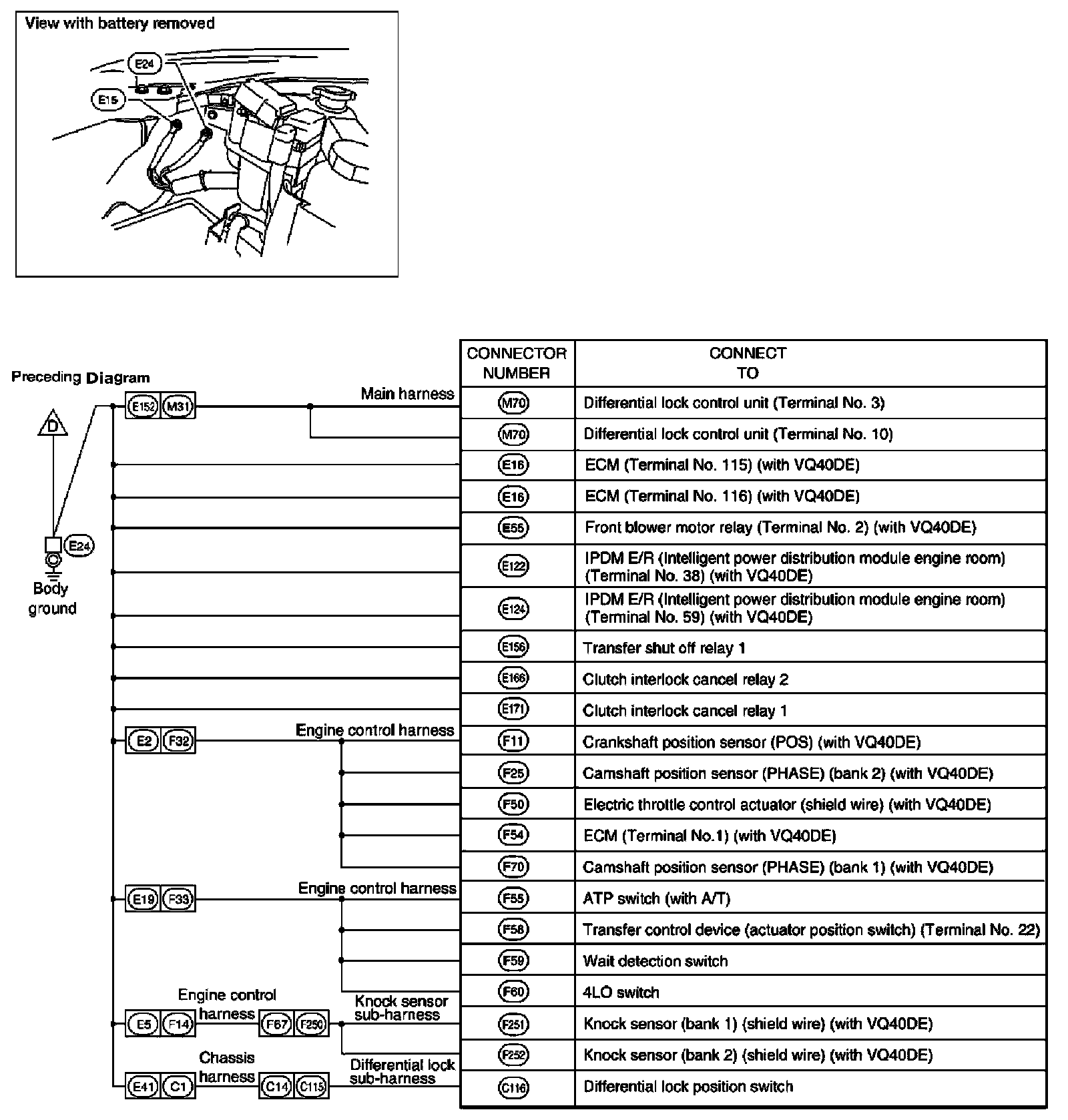

Engine Room Harness (Part 3):

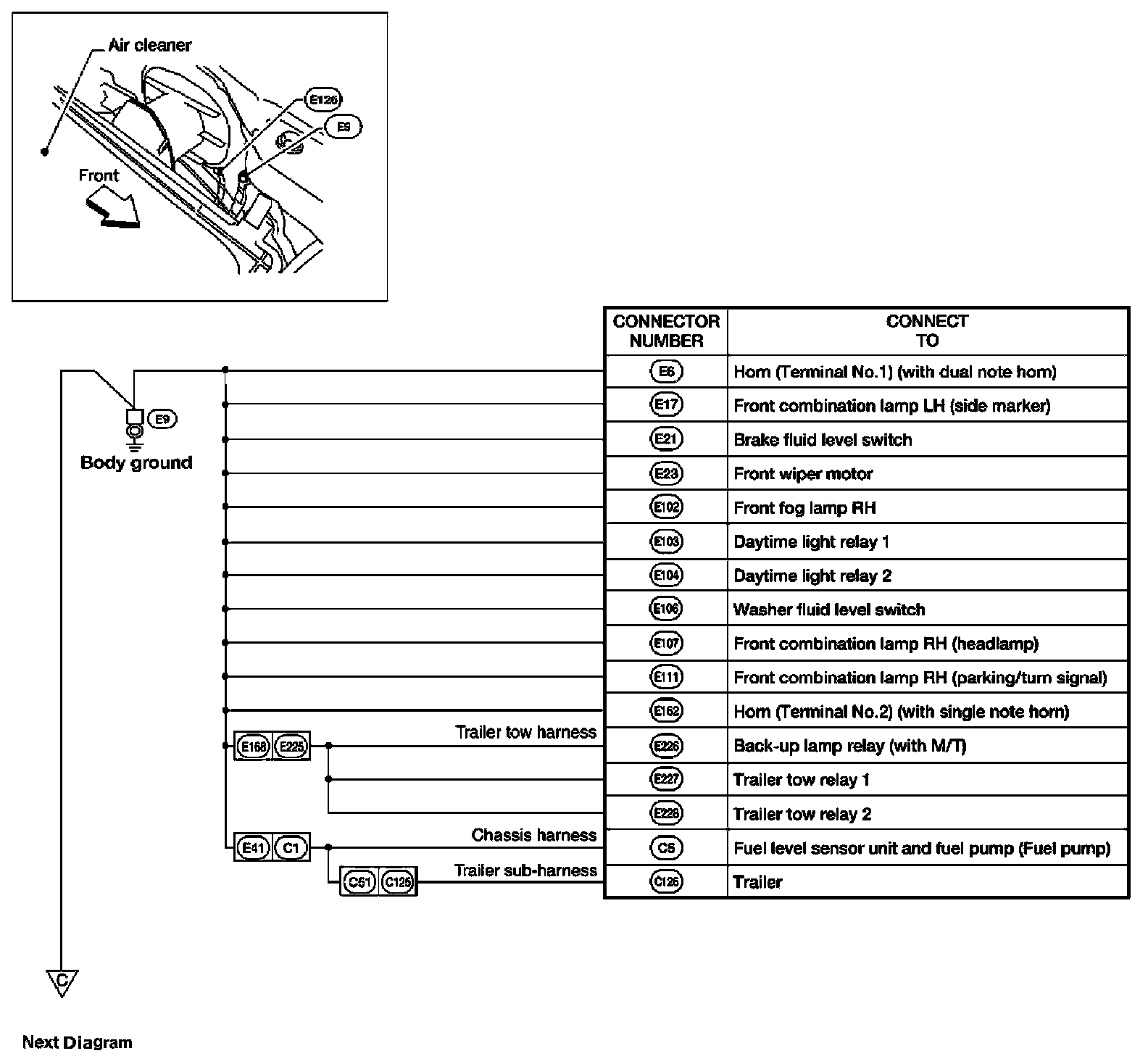

Engine Room Harness (Part 4):
