Accessory Power Supply

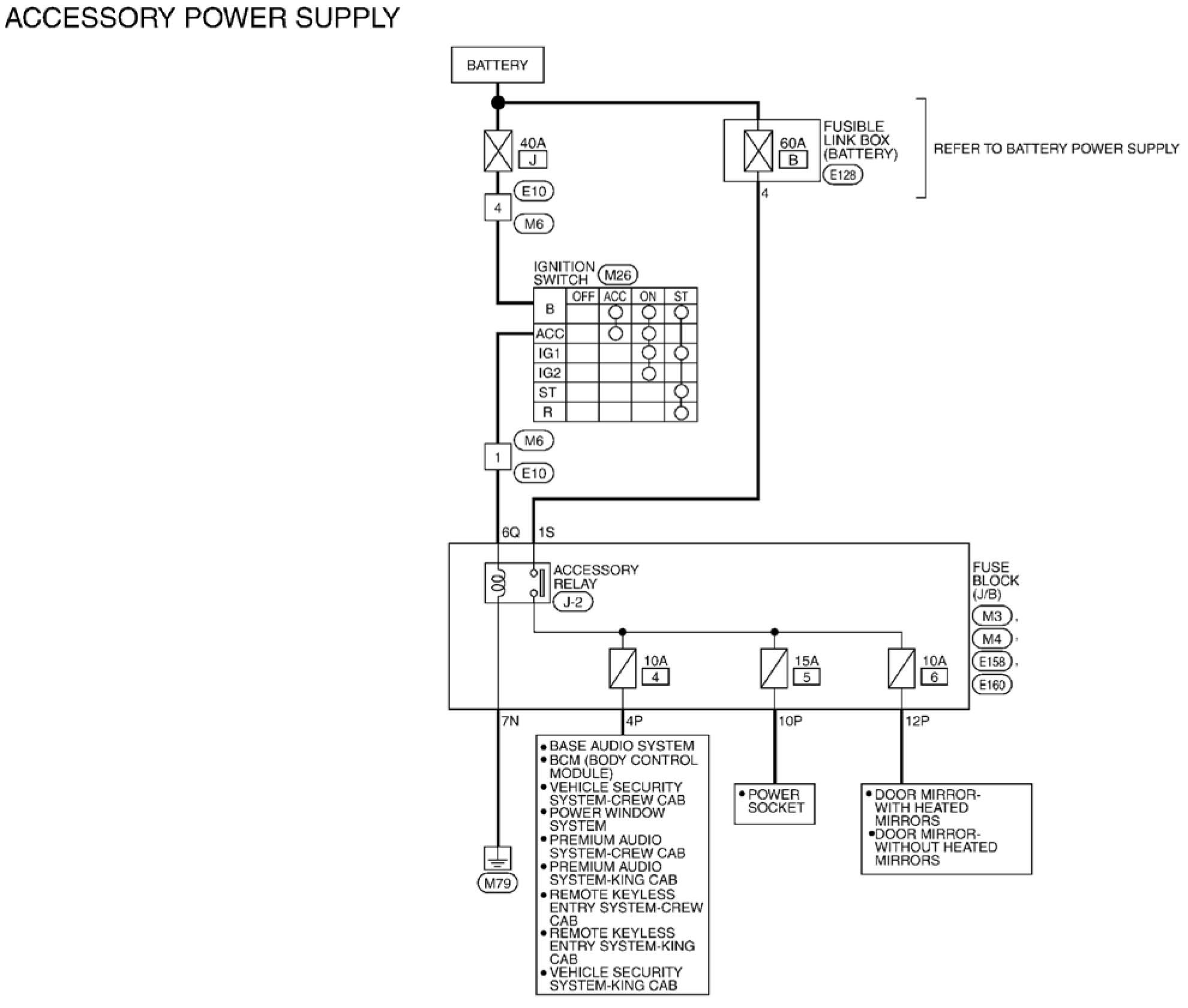

Accessory Power Supply: Wiring Diagram

Accessory Power Supply:






Accessory Power Supply Connectors

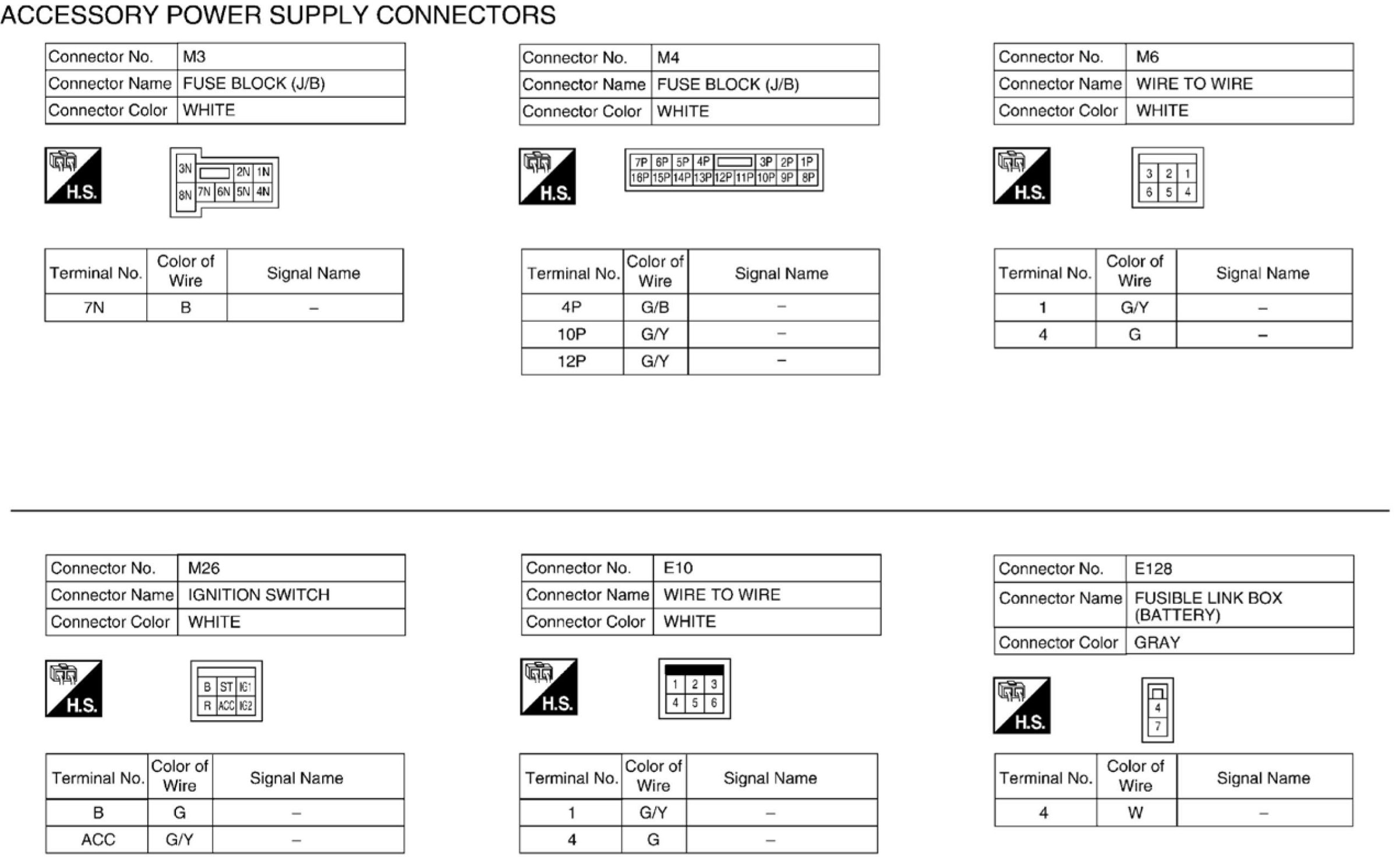

Accessory Power Supply Connectors (Part 1):

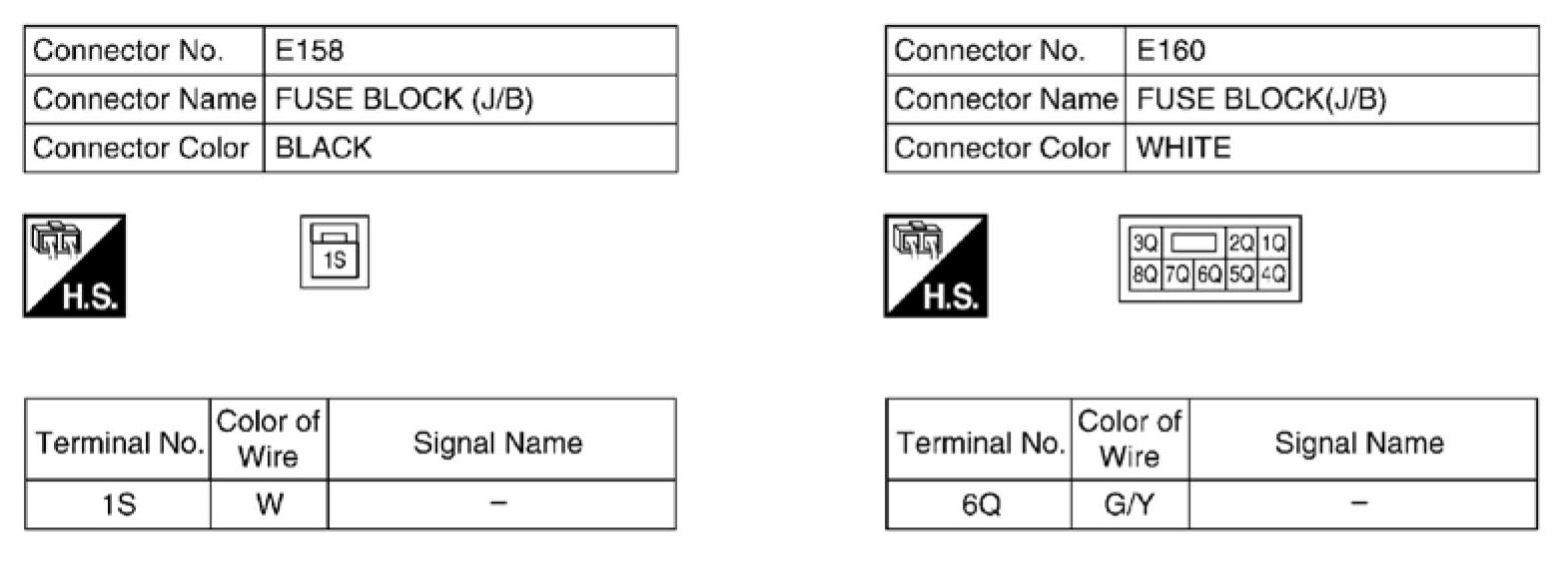

Accessory Power Supply Connectors (Part 2):
